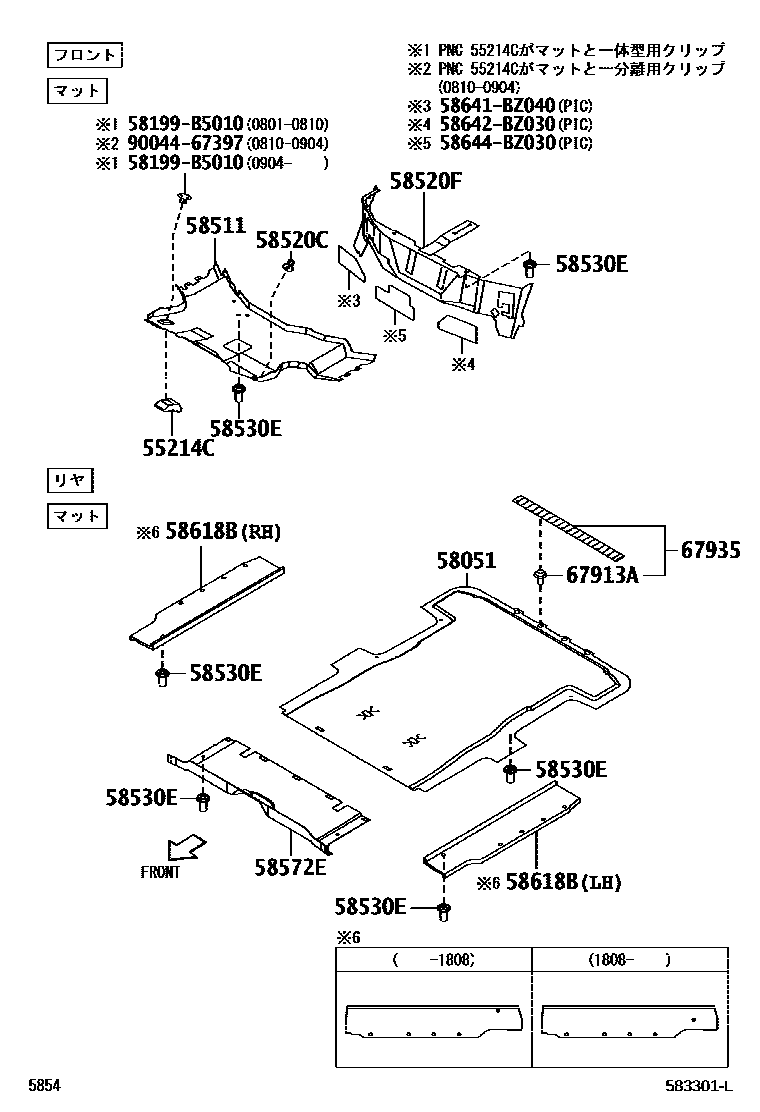

FLOOR MAT & SILENCER PAD

0001 1 0002 1 0003 1

55214CPAD, DASH PANEL INSULATOR, NO.2

main55214-BZ020iS402200810-200904

58051MAT SET, FLOOR

main58051-BZ021-B0supersedes 58051-BZ061-B0iS402..VAN; S412..VAN201006-202007

main58051-BZ021-B1supersedes 58051-BZ061-B1iS403..VAN..4FC; S413..VAN..4FC202007

main58051-BZ020-B0supersedes 58051-BZ061-B0iS402..VAN200801-201006

main58051-BZ061-B0iS412..VAN201006-201204

58511MAT, FLOOR, FRONT

main58510-BZ320-B0iS402..4FC200801-200810

DK.GRAY,TRIM1#

main58510-BZ321-B0iS402..4FC200811-200903

DK.GRAY,TRIM1#

main58510-BZ322-B0iS402..4FC200904-201006

main58510-BZ323-B0iS402,412..4FC201006-201009

main58510-BZ324-B0iS402,412..4FC201009-201908

DK.GRAY,TRIM1#

main58510-BZ325-B0iS402,412..4FC201909-202007

DK.GRAY,TRIM1#

main58510-BZ390-B0iS402..5F200801-200810

DK.GRAY,TRIM1#

main58510-BZ391-B0iS402..5F200811-200903

DK.GRAY,TRIM1#

main58510-BZ392-B0iS402..5F200904-201006

main58510-BZ393-B0iS402,412..5F201006-201009

main58510-BZ394-B0iS402,412..5F201009-202001

DK.GRAY,TRIM1#

main58510-BZ395-B0iS402,412..5F202002-202007

DK.GRAY,TRIM1#

main58510-BZP60-B1iS403,413..PIC..5F202007

DK.GRAY,TRIM1#

main58510-BZP70-B1iS403,413..4FC202007

DK.GRAY,TRIM1#

58520CCLIP(FOR FRONT FLOOR CARPET)

main90044-68234-B2×2iS402200801-200901

DK.GRAY,TRIM1#

58520FMAT ASSY, ENGINE COVER

main58520-BZ020-B1iS403,413202007-202302

DK.GRAY,TRIM1#

main58520-BZ021-B1iS403,413202303-202311

DK.GRAY,TRIM1#

main58520-BZ022iS403,413..VAN..5F202312-202503

main58520-BZ022-B1iS403,413..PIC;S403,413..VAN..4FC202312

DK.GRAY,TRIM1#

main58520-BZ030-B0iS402200801-201006

main58520-BZ031-B0iS402,412201006-201401

main58520-BZ032-B0iS402,412201402-202007

58530ECLIP(FOR FRONT FLOOR REAR CARPET)

main90045-30003×12iS402..PIC; S402..VAN200801-200901

main9004A-53002×26iS402,412..PIC; S402,412..VAN200902-202007

58572EMAT, REAR FLOOR, FRONT

main58540-BZ070-B0iS402..VAN200801-201006

main58540-BZ071-B0iS402,412..VAN201006-202007

main58540-BZ072-B1iS403,413..VAN..5F202007-202503

DK.GRAY,TRIM1#

58618BMAT, REAR DOOR STEP

main58618-BZ010-B1iS402..VAN200801-200810

main58618-BZ020-B1iS402..VAN200801-200810

main58618-BZ030-B0iS402,412..VAN200811-201808

main58618-BZ031-B0iS402,412..VAN201808-202007

main58618-BZ031-B1iS403,413..VAN..4FC202007

DK.GRAY,TRIM1#

main58618-BZ040-B0iS402,412..VAN200811-201808

main58618-BZ041-B0iS402,412..VAN201808-202007

67913ACLIP(FOR SCUFF PLATE)

main9004A-46275×6iS402,412..VAN200901-202007

main90467-10161×6iS402..VAN200801-200812

67935PLATE, BACK DOOR SCUFF

main67935-BZ050-B0iS403,413..VAN..5F202007-202503

DK.GRAY,TRIM1#

58199B5010BRACKET, EXTINGUISHER, NO.2

main58199-B5010

58641BZ040PLATE, FRONT SUB-FLOOR MAT SET CENTER SIDE, RH

main58641-BZ040

58642BZ030PLATE, FRONT SUB-FLOOR MAT SET CENTER SIDE, LH

main58642-BZ030

58644BZ030

main58644-BZ030

9004467397

main90044-67397

15 parts on this diagram · 3 diagrams in section
