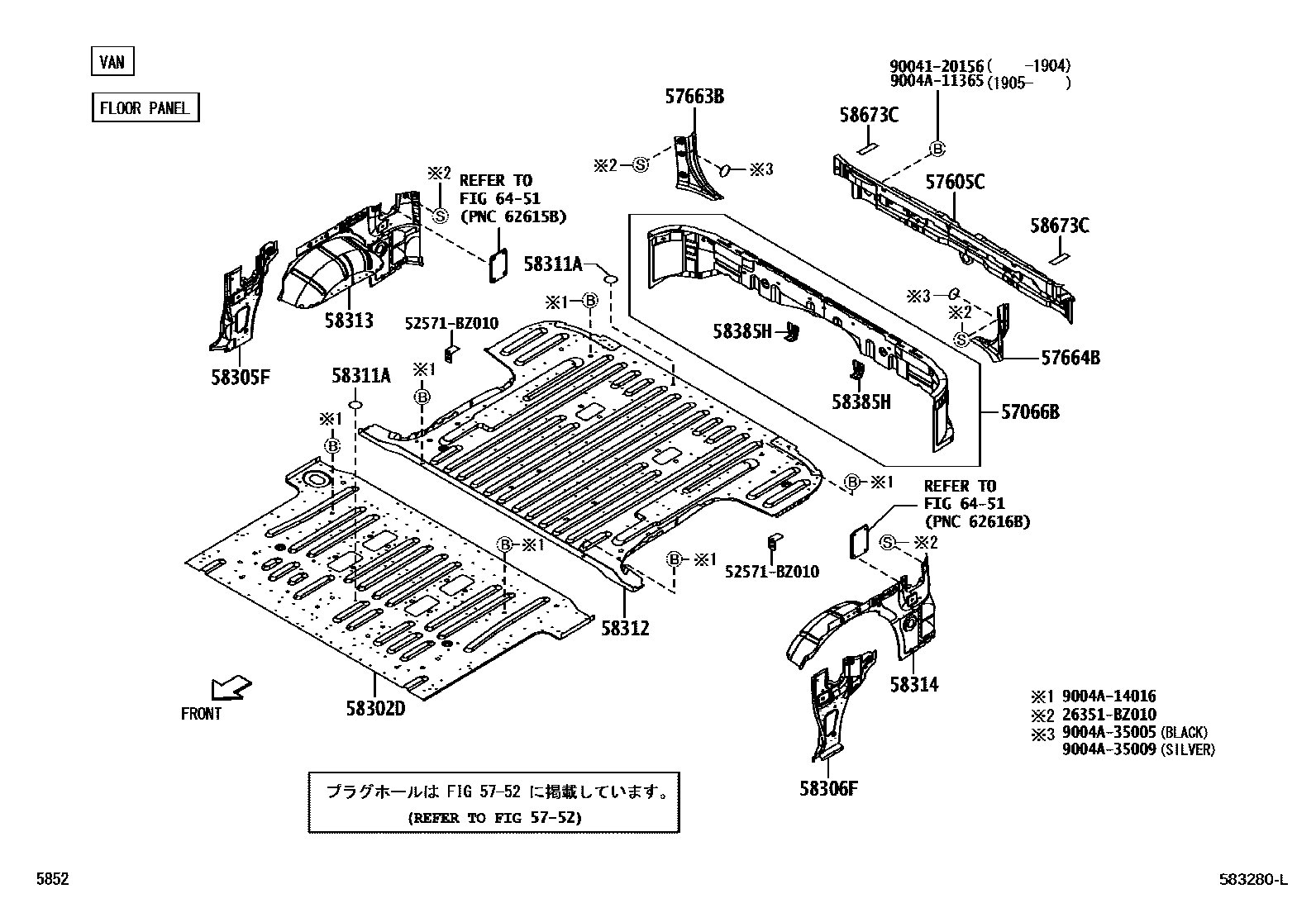

REAR FLOOR PANEL & REAR FLOOR MEMBER

0001 1FLOOR PANEL 0002 1FLOOR PANEL 0003 1MEMBER 0004 1MEMBER 0005 1MEMBER 0006 1MEMBER

57066BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.6

main57066-BZ020iS402,412..VAN200801-202007

main57066-BZ080iS403,413..VAN202007-202502

5752HOLE PLUG

→ Go to FIG 57-52

57605CMEMBER SUB-ASSY, REAR FLOOR CROSS

main57605-BZ030iS402,412..VAN200801-202007

main57605-BZ180iS403,413..VAN..5F202007-202503

57663BPANEL, REAR FLOOR SIDE, REAR RH

main57663-BZ010iS403,413..VAN..4FC202007

57664BPANEL, REAR FLOOR SIDE, REAR LH

main57664-BZ010iS403,413..VAN..4FC202007

58302DPANEL SUB-ASSY, REAR FLOOR, FRONT

main58302-BZ040supersedes 58302-BZ030iS403..VAN..5F; S413..VAN..5F202007-202503

main58302-BZ030iS412..VAN201006-201204

58305FPANEL SUB-ASSY, REAR FLOOR SIDE, RH

main58305-BZ020iS403,413..VAN..5F202007-202503

58306FPANEL SUB-ASSY, REAR FLOOR SIDE, LH

main58306-BZ020iS403,413..VAN..5F202007-202503

58311APLUG, HOLE(FOR FLOOR PAN)

main90048-74004×4iS402..VAN200801-200901

main9004A-35005×2iS402,412..VAN201004-202007

58312PANEL, REAR BODY FLOOR, NO.1

main58312-BZ010iS403,413..VAN..4FC202007

58313PANEL, REAR FLOOR SIDE, RH

main57041-BZ020iS403,413..VAN..4FC202007

58314PANEL, REAR FLOOR SIDE, LH

main57042-BZ020iS403,413..VAN..5F202007-202503

58385HBRACKET, REAR BUMPER COVER, NO.1

main52169-BZ040×2iS403,413..VAN..5F202007-202503

58673CPAD, REAR FLOOR SILENCER, NO.1

main58673-BZ020×4iS402,412..VAN200812-202007

6451INSIDE TRIM BOARD

→ Go to FIG 64-51

26351BZ010SCREW

main26351-BZ010

52571BZ010BRACKET, REAR BUMPER FILLER

main52571-BZ010

9004120156

main90041-20156

9004A11365

main9004A-11365

9004A14016

main9004A-14016

9004A35005

main9004A-35005

9004A35009

main9004A-35009

22 parts on this diagram · 6 diagrams in section
