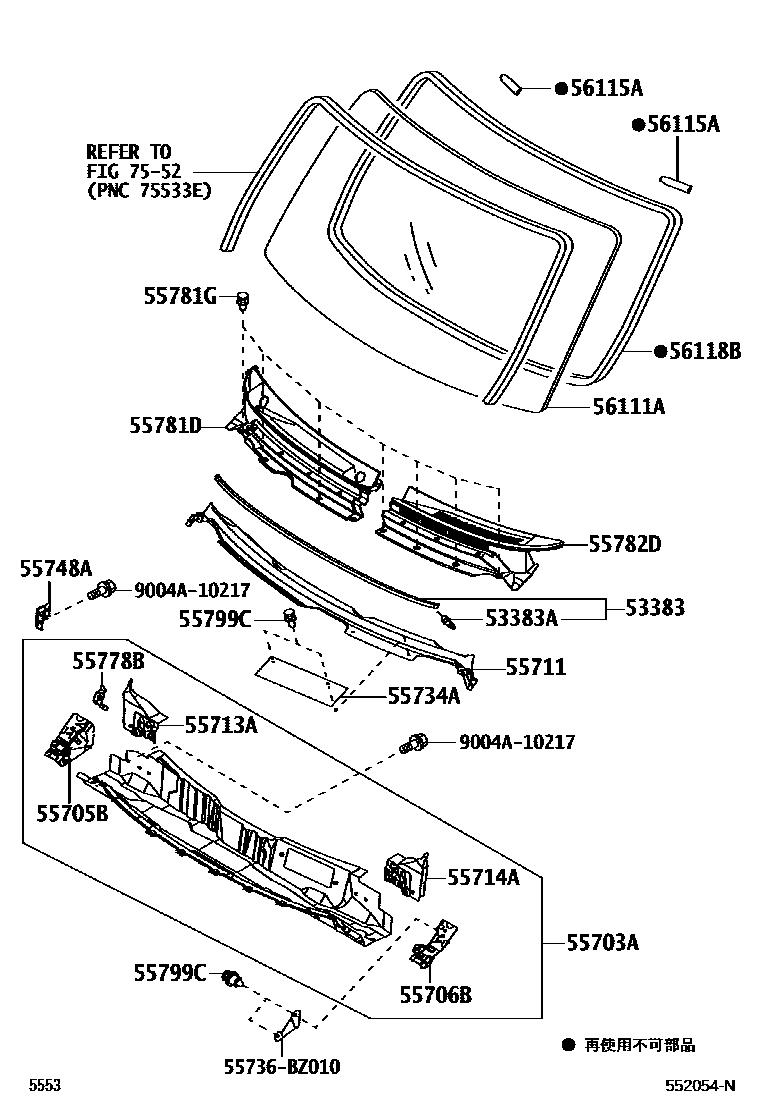

COWL PANEL & WINDSHIELD GLASS

0001 1 0002 1

53383SEAL, HOOD TO COWL TOP

main53383-BZ050iS403,413..VAN..5F202007-202503

53383ACLIP(FOR HOOD TO COWL TOP SEAL)

main90044-67533×7iS403,413..VAN..5F202007-202503

55703APANEL SUB-ASSY, COWL TOP, INNER

main55703-BZ160iS402,412200801-202007

main55703-BZ580iS403,413..PIC;S403,413..VAN..4FC202007

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55705-BZ060iS403,413..VAN..5F202007-202503

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55706-BZ060iS403,413..VAN..5F202007-202503

55711PANEL, COWL TOP, OUTER

main55701-BZ110iS403,413..PIC;S403,413..VAN..4FC202007

55713APANEL, COWL TOP SIDE, RH

main61121-BZ040iS403,413..VAN..5F202007-202503

55714APANEL, COWL TOP SIDE, LH

main61122-BZ040iS403,413..VAN..5F202007-202503

55734APLATE, WATER GUARD, RH

main55734-BZ010iS403,413..VAN..5F202007-202503

55748ABRACE, COWL TOP INNER TO PILLAR

main55748-BZ010iS403,413..VAN..5F202007-202503

55778BBRACKET, IDENTIFICATION NUMBER PLATE

main55774-BZ120iS403,413..VAN..5F202007-202503

55781DLOUVER, COWL TOP VENTILATOR, RH

main55781-BZ080iS403,413..PIC;S403,413..VAN..4FC202007

55781GCLIP, COWL TOP VENTILATOR LOUVER

main90044-67478×7iS402200801-200803

main9004A-46311×7iS402,412201509-201810

main90467-07055-C1×7iS403,413..PIC;S403,413..VAN..4FC202007

-

55782DLOUVER, COWL TOP VENTILATOR, LH

main55782-BZ070iS403..PIC;S403..VAN..4FC202007

main55782-BZ090supersedes 55782-BZ070iS403..PIC..CBU;S403..VAN..4FC; S413..PIC;S413..VAN..4FC202007

55799CCLIP, COWL TOP VENTILATOR LOUVER

main90044-68320×4iS402,412200801-201302

main9004A-46323×4iS403,413..PIC;S403,413..VAN..4FC202007

56111AGLASS, WINDSHIELD

main56101-BZ160iS403,413..PIC;S403,413..VAN..4FC202007

main56111-BZ180iS402,412200801-202007

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-BZ080×2iS403,413..VAN..5F202007-202503

56118BDAM, WINDOW GLASS ADHESIVE, NO.2

main56117-BZ060iS403,413..PIC;S403,413..VAN..4FC202007

7552MOULDING

→ Go to FIG 75-52

55736BZ010SEAL, WATER GUARD PLATE

main55736-BZ010

9004A10217

main9004A-10217

21 parts on this diagram · 2 diagrams in section
