0901STANDARD TOOL

→ Go to FIG 09-01

52155ASUPPORT, REAR BUMPER SIDE, RH

main52155-BZ060i202007-202503

52156ASUPPORT, REAR BUMPER SIDE, LH

main52156-BZ070i202007-202503

52159COVER, REAR BUMPER

main52159-BZ330supersedes 52159-BZ271i201006-201803

main52159-BZ331i201803-202007

main52159-BZ560-A0i201006-201803

main52159-BZ560-B0i201006-201803

main52159-BZ561-A0i201803-202007

main52159-BZ561-B0i201803-202007

main52159-BZK70-A0i202007-202503

main52159-BZK70-B0i202007-202503

main52159-BZL00i202007-202503

main52159-BZ340-A0supersedes 52159-BZ571-A0i200801-200807

main52159-BZ340-B0supersedes 52159-BZ571-B0i200801-200807

52161BPIECE, REAR BUMPER

main90044-68320×2i200801-201302

main9004A-46323×2i202007-202503

main9004A-46352×2i201508-201909

52165ACOVER, REAR BUMPER, UPR RH

main52165-BZ040i200801-200807

main52165-BZ090-A0i200801-200807

WHITE,W09

main52165-BZ090-B0i200801-200807

SILVER M.M.,1E7

main52165-BZ180-A0i202007-202503

WHITE,W09

main52165-BZ180-B0i202007

SILVER M.M.,1E7

52505FILLER SUB-ASSY, REAR BUMPER

main52506-BZ020i201410-202007

main52507-BZ020i201410-202007

main52565-BZ010i200801-201409

main52566-BZ010i200801-201409

52561ACLIP(FOR REAR BUMPER RETAINER)

main90044-67204-C0×2i200801-200806

BLACK

main90044-67567×2i200806-201705

main9004A-46334×2i202007-202503

52581APROTECTOR, REAR BUMPER FILLER

main52581-BZ080×2i200801-200802

main52581-BZ110×2i202007-202503

9004105546

main90041-05546

9004119587

main90041-19587

9004A10209

main9004A-10209

9004A16084

main9004A-16084

9004A18034

main9004A-18034

9015950346

main90159-50346

9015960603

main90159-60603

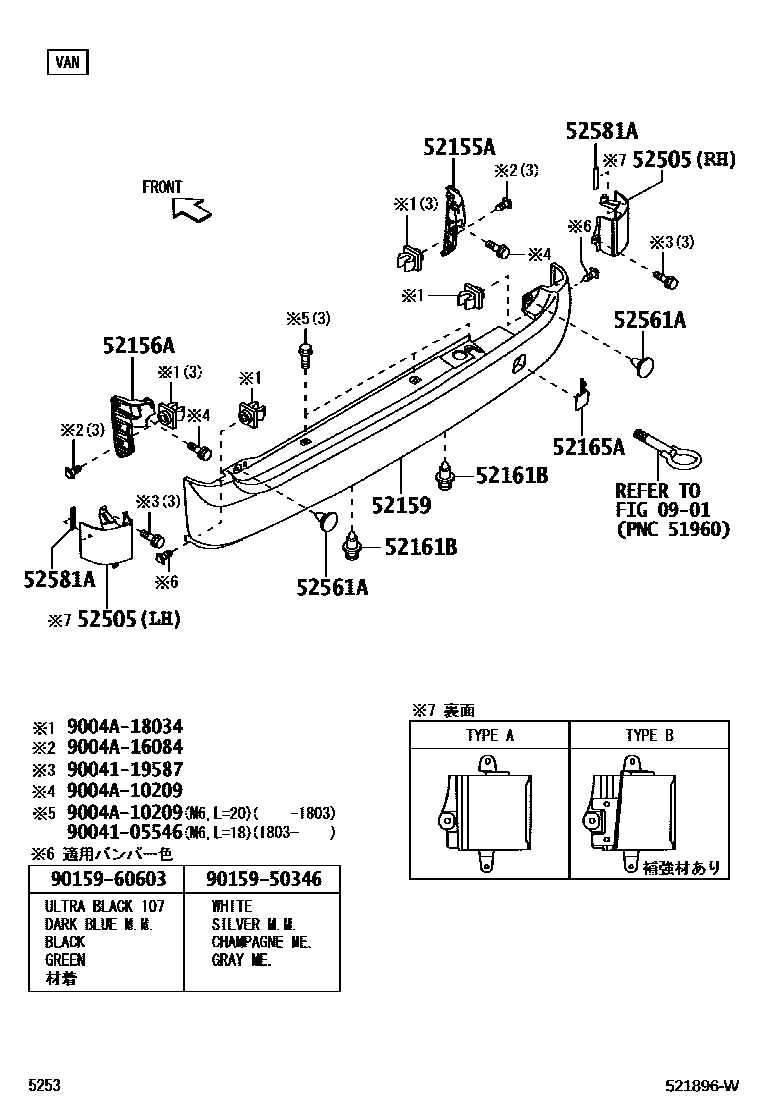

REAR BUMPER & BUMPER STAY
