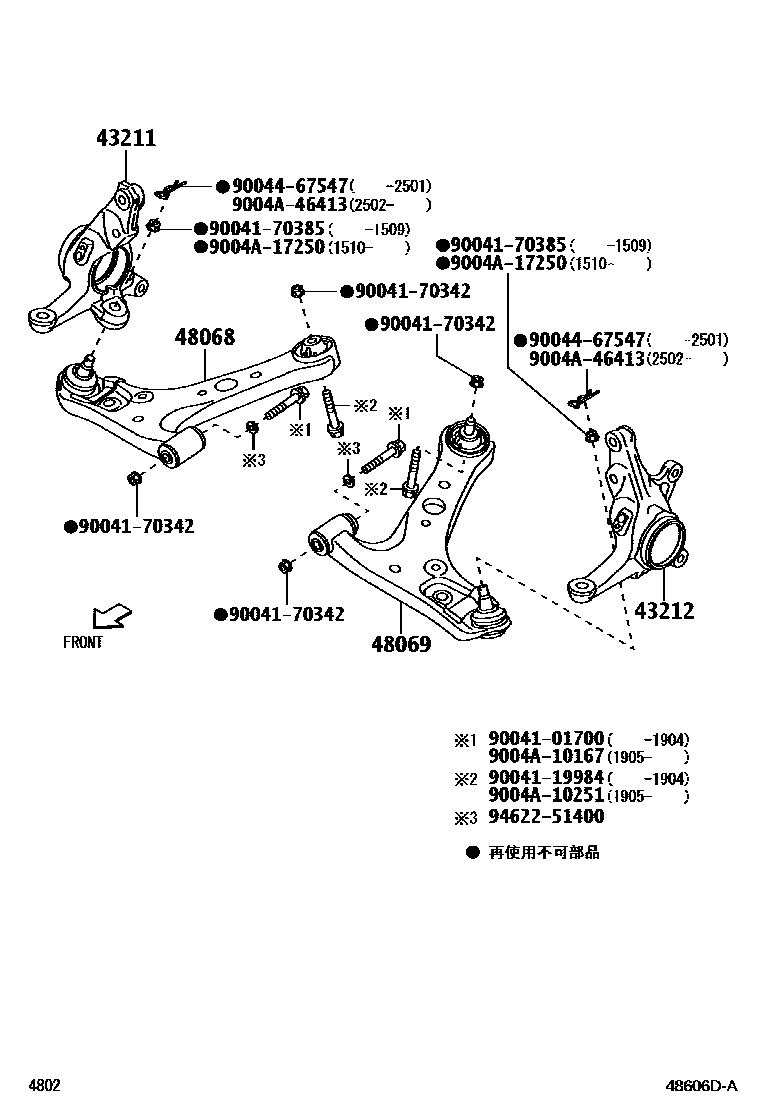

FRONT AXLE ARM & STEERING KNUCKLE

43211KNUCKLE, STEERING, RH

main43211-BZ100iS412200801-202007

main43211-BZ101iS402200802-200803

main43211-BZ102iS402200804-200805

main43211-BZ420iS403,413..VAN..5F202007-202503

43212KNUCKLE, STEERING, LH

main43212-BZ100iS402200801-202007

main43212-BZ101iS402200802-200803

main43212-BZ102iS402200804-200805

main43212-BZ420iS403,413..VAN..5F202007-202503

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-BZ080iS402,412200801-202007

main48068-BZ410iS403,413..PIC;S403,413..VAN..4FC202007-202503

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-BZ080iS402,412200801-202007

main48069-BZ410iS403,413..VAN..5F202007-202503

9004101700

main90041-01700

9004119984

main90041-19984

9004170342

main90041-70342

9004170385

main90041-70385

9004467547

main90044-67547

9004A10167

main9004A-10167

9004A10251

main9004A-10251

9004A17250

main9004A-17250

9004A46413

main9004A-46413

9462251400

main94622-51400

14 parts on this diagram · 1 diagram in section
