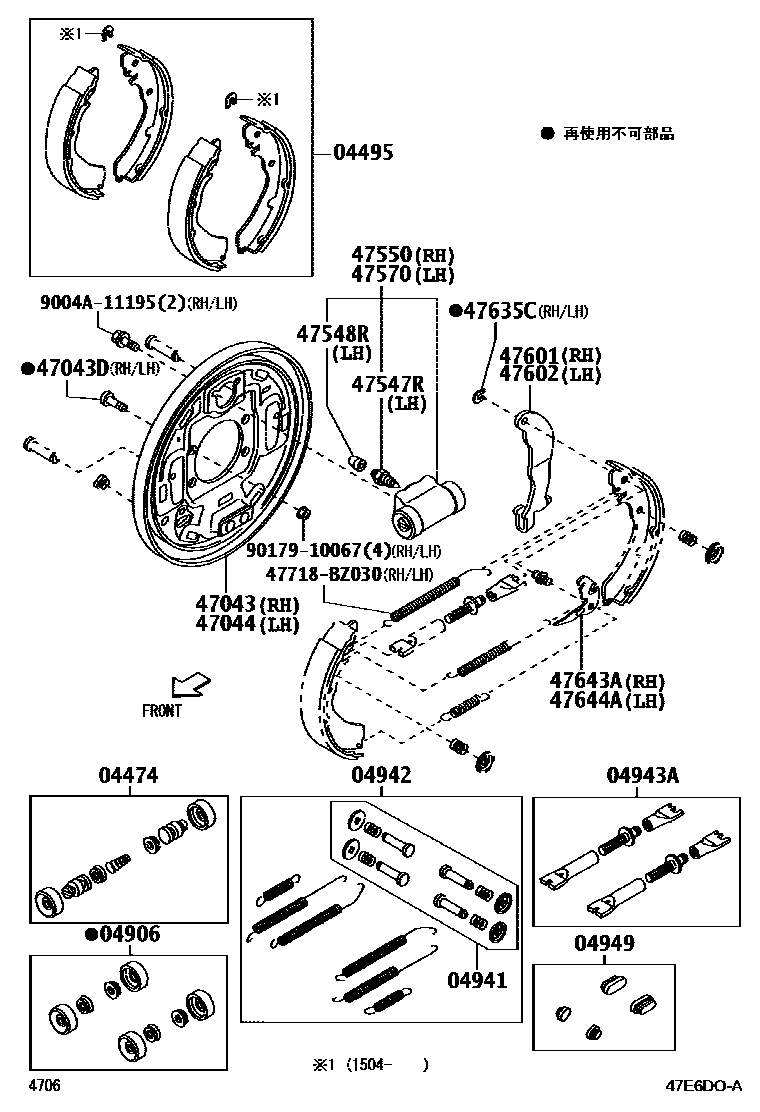

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

0001 1 0002 1

04474CYLINDER KIT, REAR WHEEL

main04474-BZ040×2iS402,412200801-201302

main04474-BZ041×2iS402,412201302-202007

main04474-BZ100×2iS403,413..VAN..5F202007-202503

04495SHOE KIT, REAR BRAKE

main04495-BZ100iS402,412200801-201408

main04495-BZ130iS402,412201408-201504

main04495-BZ131iS402,412201504-202007

main04495-BZ170iS403,413..VAN..5F202007-202503

04906CUP KIT, REAR WHEEL CYLINDER

main04906-BZ070iS402,412200801-202007

main04906-BZ120iS403,413..PIC;S403,413..VAN..4FC202007

04941SPRING KIT, REAR BRAKE SHOE HOLD DOWN

main04941-BZ040iS403,413..VAN..5F202007-202503

04942SPRING KIT, REAR BRAKE

main04942-BZ050iS402,412200801-202007

main04942-BZ080iS403,413..PIC;S403,413..VAN..4FC202007

04943ASTRUT KIT, REAR BRAKE

main04943-BZ030iS402,412200801-202007

main04943-BZ060iS403,413202007-202109

main04943-BZ080iS403,413..VAN..5F202109-202503

04949PLUG KIT, REAR BRAKE

main04949-BZ050iS403,413..VAN..5F202007-202503

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-BZ060iS403,413..VAN..5F202007-202503

47043DBOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main42184-B0020×8iS402,412200801-201408

main9004A-10199×8iS403,413..VAN..5F202007-202503

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-BZ060iS403,413..VAN..5F202007-202503

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-BZ110×2iS403,413..PIC;S403,413..VAN..4FC202007

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main47548-BZ080×2iS403,413..PIC;S403,413..VAN..4FC202007

main47548-BZ090iS402,412200801-202007

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-BZ030iS402,412200801-201301

main47550-BZ031iS402,412201302-202007

main47560-BZ090iS403,413..VAN..5F202007-202503

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47560-BZ030iS402,412200801-201301

main47560-BZ031iS402,412201302-202007

main47560-BZ090iS403,413..PIC;S403,413..VAN..4FC202007

47601LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)

main47611-BZ030iS402,412200801-202007

main47611-BZ090iS403,413..VAN..5F202007-202503

47602LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)

main47612-BZ030iS402,412200801-202007

main47612-BZ090iS403,413..PIC;S403,413..VAN..4FC202007

47635CRETAINER, ADJUSTING BOLT SPRING

main47635-BZ030×2iS403,413..VAN..5F202007-202503

47643ALEVER, REAR BRAKE AUTOMATIC ADJUST, RH

main47643-BZ040iS402,412200801-202007

main47643-BZ090iS403,413..VAN..5F202007-202503

47644ALEVER, REAR BRAKE AUTOMATIC ADJUST, LH

main47644-BZ040iS402,412200801-202007

main47644-BZ080iS403,413..VAN..5F202007-202503

47718BZ030SPRING, FRONT DISC BRAKE CYLINDER SUPPORT

main47718-BZ030

9004A11195

main9004A-11195

9017910067

main90179-10067

22 parts on this diagram · 2 diagrams in section
