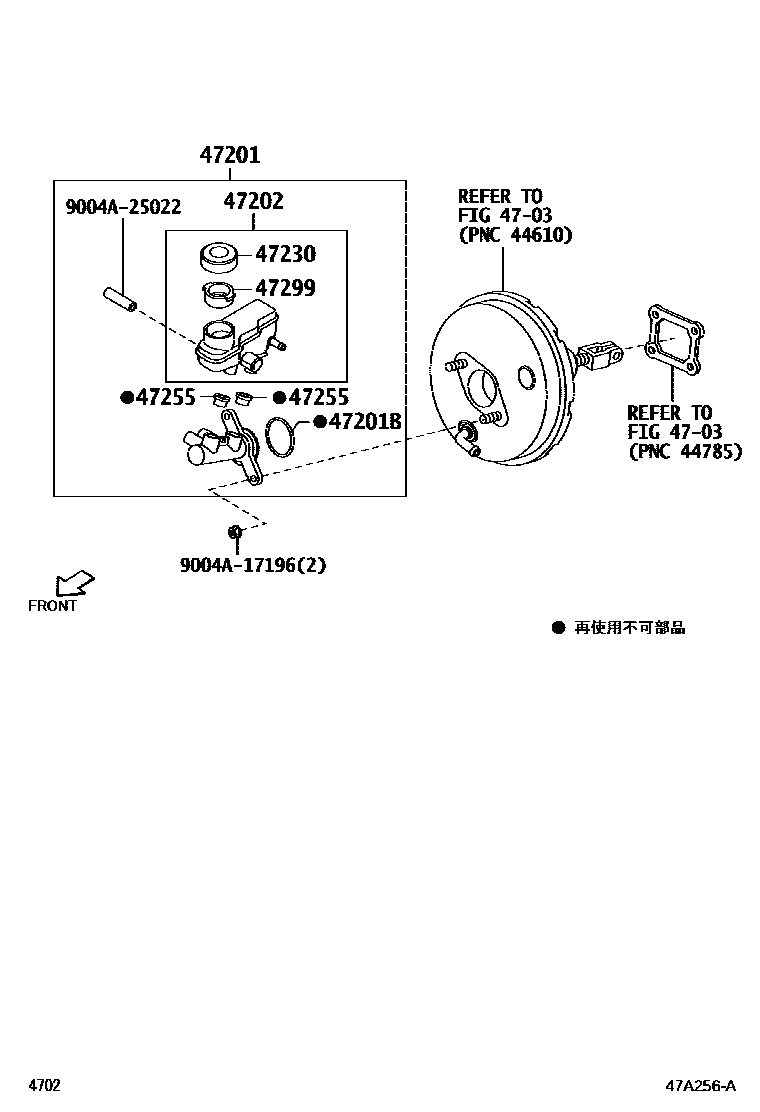

BRAKE MASTER CYLINDER

0001 1 0002 1

4703BRAKE BOOSTER & VACUUM TUBE

→ Go to FIG 47-03

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-BZ270iS402,412..5F200801-202007

main47201-BZ280iS402,412..4FC200801-202007

main47201-BZ680iS403,413..PIC..5F202007

main47201-BZA60iS403,413..4FC202007

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90043-01352iS403,413..PIC;S403,413..VAN..4FC202007

main9004A-30040iS402,412200801-202007

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-BZ140iS402,412..5F200801-202007

main47220-BZ150iS402,412..4FC200801-202007

main47220-BZ250iS403,413..VAN..5F202007-202503

main47220-BZ260iS403,413..4FC202007

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-BZ080iS402,412200801-202007

main47230-BZ130iS403,413..PIC;S403,413..VAN..4FC202007

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-BZ070×2iS402200801-200808

main47255-BZ071×2iS402,412200809-202007

main47255-BZ110×2iS403,413..VAN..5F202007-202503

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-BZ070iS402,412200801-202007

main47299-BZ090iS403,413..VAN..5F202007-202503

9004A17196

main9004A-17196

9004A25022

main9004A-25022

9 parts on this diagram · 2 diagrams in section
