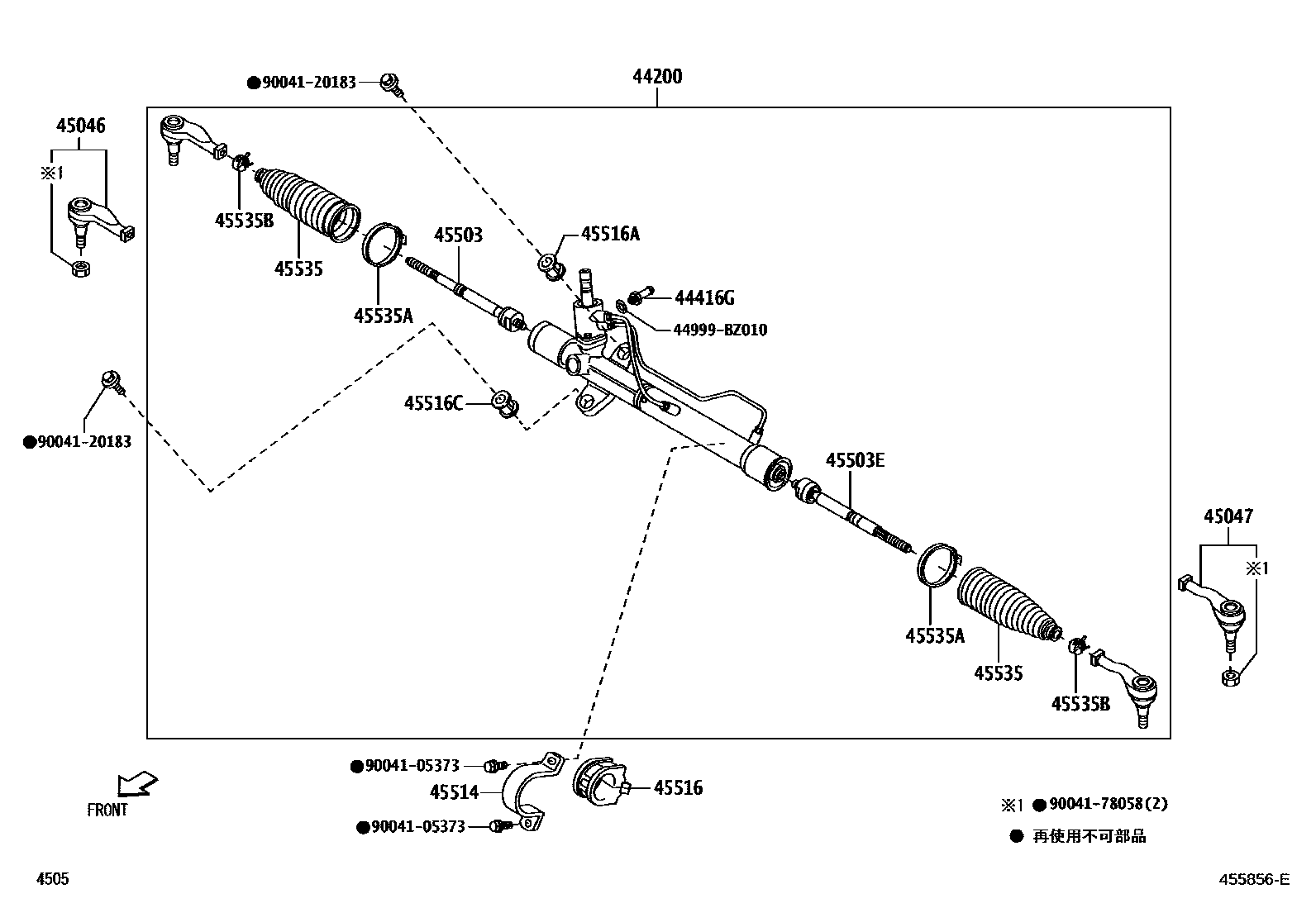

FRONT STEERING GEAR & LINK

0001 1 0002 1

44200LINK ASSY, POWER STEERING

main44200-BZ120iS402200801-201107

main44200-BZ121iS402201108-201306

main44200-BZ122iS402201307-202007

main44200-BZ140iS412201006-201107

main44200-BZ141iS412201108-201306

main44200-BZ142iS412201307-202007

44416GTUBE, RETURN(FOR STEERING GEAR)

main44416-BZ010iS402,412200801-202007

45046END SUB-ASSY, TIE ROD, RH

main45046-B9290iS402,412200801-202007

main45046-B9440iS403,413..VAN..5F202007-202503

45047END SUB-ASSY, TIE ROD, LH

main45047-B9240iS402,412200801-202007

main45047-B9430iS403,413..VAN..5F202007-202503

45503END SUB-ASSY, STEERING RACK

main45503-BZ070iS402,412200801-201307

main45503-BZ240×2iS403,413..VAN..5F202007-202503

main45504-BZ010iS402,412201308-202007

45503EEND SUB-ASSY, STEERING RACK

main45504-BZ010iS402,412200801-202007

45514BRACKET, STEERING RACK HOUSING, NO.1

main45514-BZ090iS403,413..PIC;S403,413..VAN..4FC202007

45516GROMMET, STEERING RACK HOUSING, NO.1

main45517-BZ020iS402,412200801-202007

main45517-BZ050iS403,413..VAN..5F202007-202503

45516ABUSH, STEERING RACK HOUSING, NO.1

main45516-B1020iS402200801-200812

main45516-BZ210iS402,412200901-202007

45516CBUSH, STEERING RACK HOUSING, NO.2

main45516-B4030iS402200801-200812

main45516-BZ220iS402,412200901-202007

45535BOOT, STEERING RACK, NO.1

main45535-BZ080×2iS402,412200801-202007

main45535-BZ120×2iS403,413..VAN..5F202007-202503

45535ACLAMP(FOR STEERING RACK BOOT)

main45538-BZ030×2iS402,412200801-202007

main45538-BZ050×2iS403,413..VAN..5F202007-202503

45535BCLIP(FOR STEERING RACK BOOT)

main45537-BZ010×2iS402,412200801-202007

main45537-BZ030×2iS403,413..PIC;S403,413..VAN..4FC202007

44999BZ010ELEMENT, BOOSTER CONTROL VALVE AIR CLEANER

main44999-BZ010

9004105373

main90041-05373

9004120183

main90041-20183

9004178058

main90041-78058

17 parts on this diagram · 2 diagrams in section
