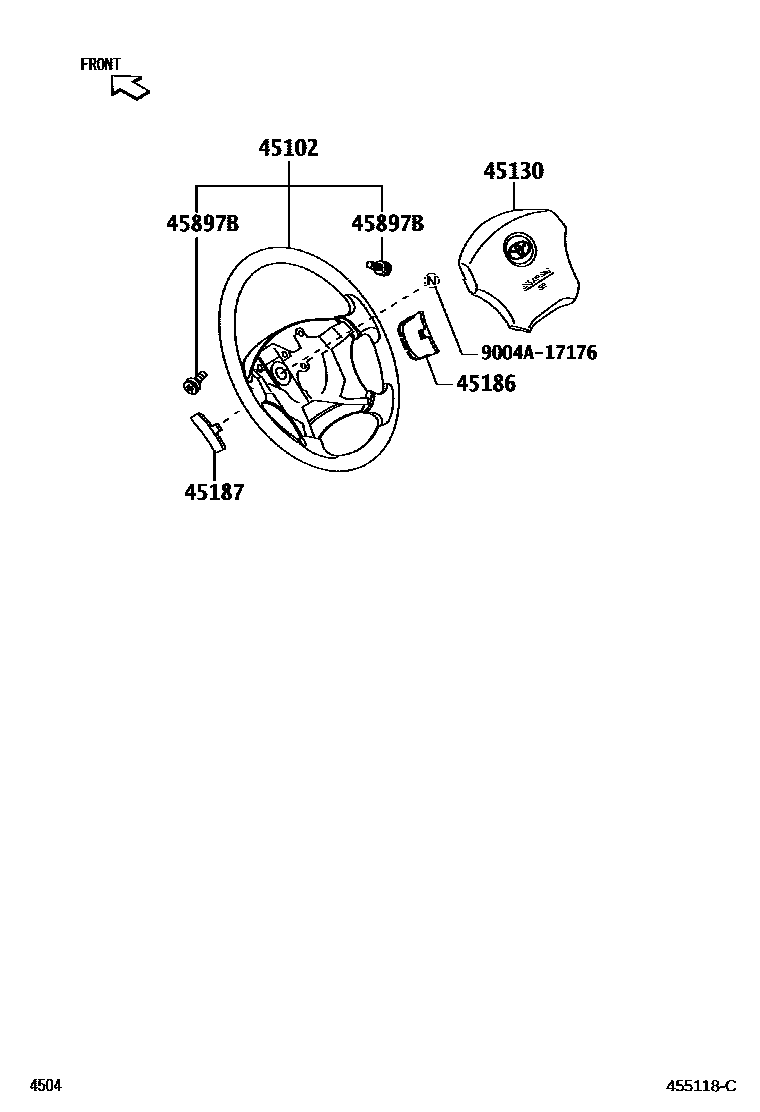

STEERING WHEEL

0001 1 0002 1

45102WHEEL SUB-ASSY, STEERING

main45102-BZ150-B0iS402,412200801-202007

DK.GRAY,TRIM1#

main45102-BZ540-B0iS403,413..VAN..5F202007-202503

DK.GRAY,TRIM1#

45130BUTTON ASSY, HORN

main45130-BZ130-B0iS402,412200801-202007

DK.GRAY,TRIM1#

main45130-BZ700-B0iS403,413..VAN..5F202007-202503

DK.GRAY,TRIM1#

45186COVER, STEERING WHEEL, LOWER NO.2

main45186-BZ020-B0iS403,413..VAN..5F202007-202503

DK.GRAY,TRIM1#

45187COVER, STEERING WHEEL, LOWER NO.3

main45187-BZ020-B0iS403,413..VAN..5F202007-202503

DK.GRAY,TRIM1#

45897BBOLT, STEERING LOCK SET

main45897-B2020×2iS402,412200801

9004A17176

main9004A-17176

6 parts on this diagram · 2 diagrams in section
