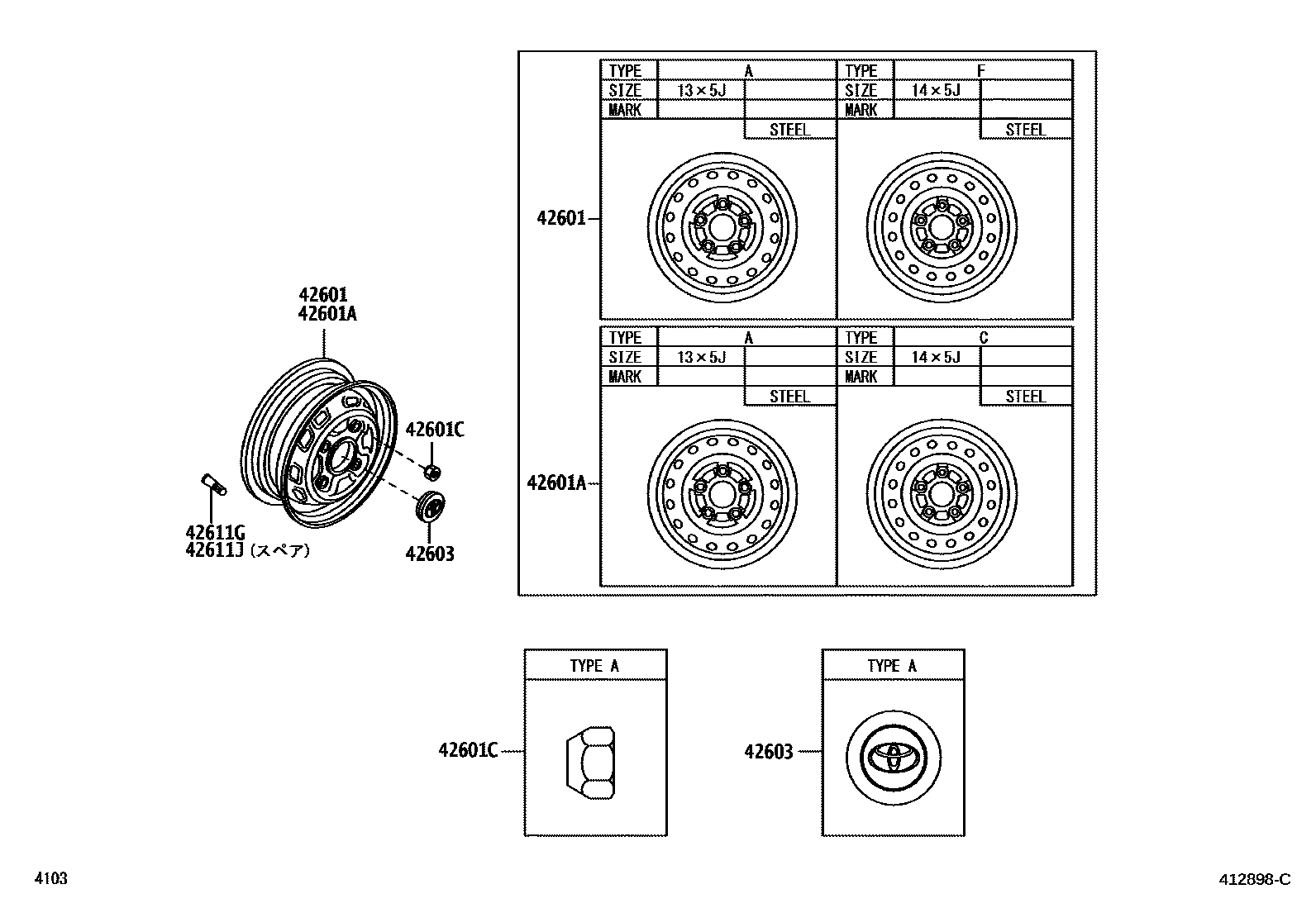

DISC WHEEL & WHEEL CAP

0001 1 0003 1

42601WHEEL, DISC

main42611-BZ300×4iS402,412200801-202007

main42611-BZ780×4iS403,413..VAN..5F202007-202503

42601AWHEEL, DISC (FOR SPARE)

main42611-BZ300iS402,412200801-202007

main42611-BZ780iS403,413..VAN..5F202007-202503

42601CNUT, HUB (FOR AXLE)

main90049-11036×20iS402,412200801-201605

main9004A-94125×20iS403,413..VAN..5F202007-202503

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42638-BZ230×4iS402,412200801-201403

main42638-BZ231×4iS402,412201404-202005

main42638-BZ650×4iS403,413..VAN..5F202007-202503

42611GVALVE (FOR TUBELESS TIRE)

main90049-02019×4iS403,413..VAN..5F202007-202503

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90049-02019iS403,413..VAN..5F202007-202503

6 parts on this diagram · 2 diagrams in section
