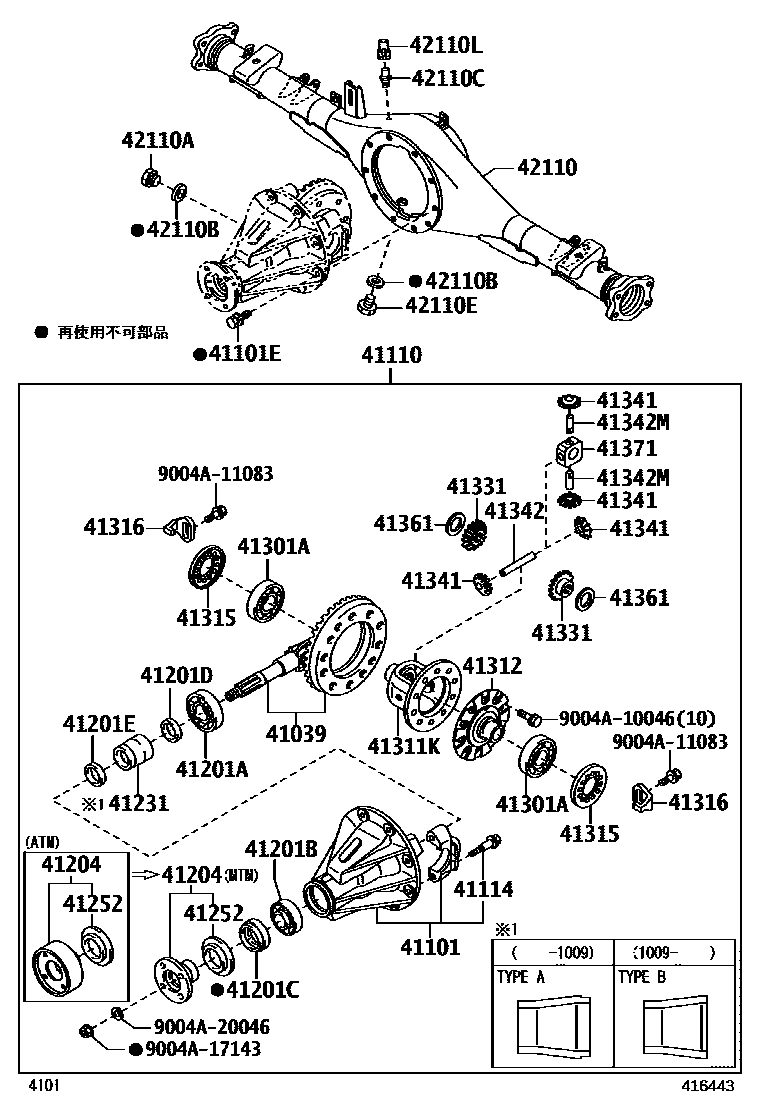

REAR AXLE HOUSING & DIFFERENTIAL

41039GEAR KIT, DIFFERENTIAL, REAR

main41039-BZ050iS403,413..PIC;S403,413..VAN..4FC202007

main41039-BZ060iS402,412..5F200801-202007

41101CARRIER SUB-ASSY, DIFFERENTIAL, REAR

main41101-BZ010iS402,412200801-202007

41101EBOLT (FOR REAR DIFFERENTIAL CARRIER)

main90041-19291×10iS412201006-201711

main90041-20039×10iS403,413..VAN..5F202007-202503

41110CARRIER ASSY, DIFFERENTIAL, REAR

main41110-BZ060iS402,412..4FC200801-201008

main41110-BZ080iS402,412..5F200801-201008

main41110-BZ081iS402,412..5F201009-202007

main41110-BZ230iS403,413..4FC202007

main41110-BZ240iS403,413..PIC..5F202007

41114BOLT, REAR DIFFERENTIAL BEARING CAP

main41114-BZ010×4iS403,413..VAN..5F202007-202503

41201ABEARING (FOR REAR DRIVE PINION REAR)

main9004A-36028iS402,412200801-201009

main9004A-36085iS403,413..PIC;S403,413..VAN..4FC202007

41201BBEARING (FOR REAR DRIVE PINION FRONT)

main9004A-36030iS402,412200801-201009

main9004A-36089iS403,413..PIC;S403,413..VAN..4FC202007

41201CSEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)

main9004A-31043iS403,413..VAN..5F202007-202503

41201DWASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)

main9004A-56051iS403,413..VAN..5F202007-202503

main9004A-56052iS403,413..PIC;S403,413..VAN..4FC202007

main9004A-56053iS403,413..VAN..5F202007-202503

main9004A-56054iS403,413..VAN..5F202007-202503

main9004A-56055iS403,413..VAN..5F202007-202503

main9004A-56056iS403,413..PIC;S403,413..VAN..4FC202007

main9004A-56057iS403,413..VAN..5F202007-202503

main9004A-56058iS403,413..PIC;S403,413..VAN..4FC202007

main9004A-56059iS402,412200801-202007

main9004A-56060iS402,412200801-202007

main9004A-56061iS402,412200801-202007

main9004A-56062iS403,413..PIC;S403,413..VAN..4FC202007

main9004A-56063iS402,412200801-202007

41201ESHIM (FOR REAR DIFF DRIVE PINION SPACER FRONT ADJUST)

main9004A-56064iS402,412200801-202007

main9004A-56065iS403,413..PIC;S403,413..VAN..4FC202007

main9004A-56066iS402,412200801-202007

main9004A-56067iS403,413..VAN..5F202007-202503

main9004A-56068iS403,413..VAN..5F202007-202503

main9004A-56069iS402,412200801-202007

main9004A-56070iS403,413..PIC;S403,413..VAN..4FC202007

main9004A-56071iS402,412200801-202007

main9004A-56072iS403,413..VAN..5F202007-202503

main9004A-56073iS402,412200801-202007

main9004A-56074iS403,413..PIC;S403,413..VAN..4FC202007

main9004A-56075iS403,413..PIC;S403,413..VAN..4FC202007

main9004A-56076iS403,413..PIC;S403,413..VAN..4FC202007

main9004A-56077iS403,413..VAN..5F202007-202503

main9004A-56078iS403,413..PIC;S403,413..VAN..4FC202007

main9004A-56079iS403,413..VAN..5F202007-202503

main9004A-56080iS403,413..VAN..5F202007-202503

41204FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR

main41204-BZ030iS403,413..VAN..5F202007-202503

main41204-BZ041iS403,413..4FC202007

41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING

main41231-BZ010iS402,412200801-201009

main41231-BZ020iS402,412201009-202007

41252DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)

main41252-BZ010iS403,413..VAN..5F202007-202503

41301ABEARING(FOR REAR DIFFERENTIAL CASE)

main9004A-36029×2iS403,413..VAN..5F202007-202503

41311KCASE, REAR DIFFERENTIAL

main41311-BZ020iS402,412200801-201505

main41311-BZ021iS403,413..VAN..5F202007-202503

41312COVER, DIFFERENTIAL CASE

main41312-BZ010iS403,413..VAN..5F202007-202503

41315NUT, REAR DIFFERENTIAL BEARING ADJUSTING

main41315-BZ010×2iS403,413..VAN..5F202007-202503

41316LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT

main41316-BZ010×2iS403,413..VAN..5F202007-202503

41331GEAR, REAR DIFFERENTIAL SIDE

main41331-BZ010×2iS403,413..VAN..5F202007-202503

41341PINION, REAR DIFFERENTIAL

main41341-BZ010×4iS403,413..VAN..5F202007-202503

41342SHAFT, REAR DIFFERENTIAL PINION

main41342-BZ020iS403,413..VAN..5F202007-202503

41342MSHAFT, REAR DIFFERENTIAL PINION, NO.2

main41342-BZ030×2iS402,412200801-202007

41361WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1

main41361-BZ010×2iS403,413..PIC;S403,413..VAN..4FC202007

main41361-BZ020×2iS403,413..VAN..5F202007-202503

main41361-BZ030×2iS402,412200801-202007

main41361-BZ040×2iS403,413..VAN..5F202007-202503

main41361-BZ050×2iS403,413..PIC;S403,413..VAN..4FC202007

main41361-BZ060×2iS403,413..PIC;S403,413..VAN..4FC202007

41371SPIDER, REAR DIFFERENTIAL

main41371-BZ010iS402,412200801-201403

main41371-BZ011iS403,413..PIC;S403,413..VAN..4FC202007

42110HOUSING ASSY, REAR AXLE

main42110-BZ120iS402,412..PIC200801-202007

main42110-BZ140iS402,412..VAN200801-202007

main42110-BZ340iS403,413..PIC202007

main42110-BZ360iS403,413..VAN..5F202007-202503

42110APLUG (FOR REAR AXLE HOUSING FILLER)

main90043-41046iS403,413..PIC;S403,413..VAN..4FC202007

42110BGASKET (FOR REAR AXLE HOUSING FILLER PLUG)

main90044-30237×2iS403,413..VAN..5F202007-202503

42110CPLUG, BREATHER (FOR REAR AXLE HOUSING)

main90049-15026iS403,413..PIC;S403,413..VAN..4FC202007

42110EPLUG (FOR REAR AXLE HOUSING DRAIN)

main90043-41068iS403,413..PIC;S403,413..VAN..4FC202007

42110LPLUG BREATHER, NO.2

main90049-15052iS402200801-200805

main9004A-93004iS403,413..VAN..5F202007-202503

9004A10046

main9004A-10046

9004A11083

main9004A-11083

9004A17143

main9004A-17143

9004A20046

main9004A-20046

34 parts on this diagram · 1 diagram in section
