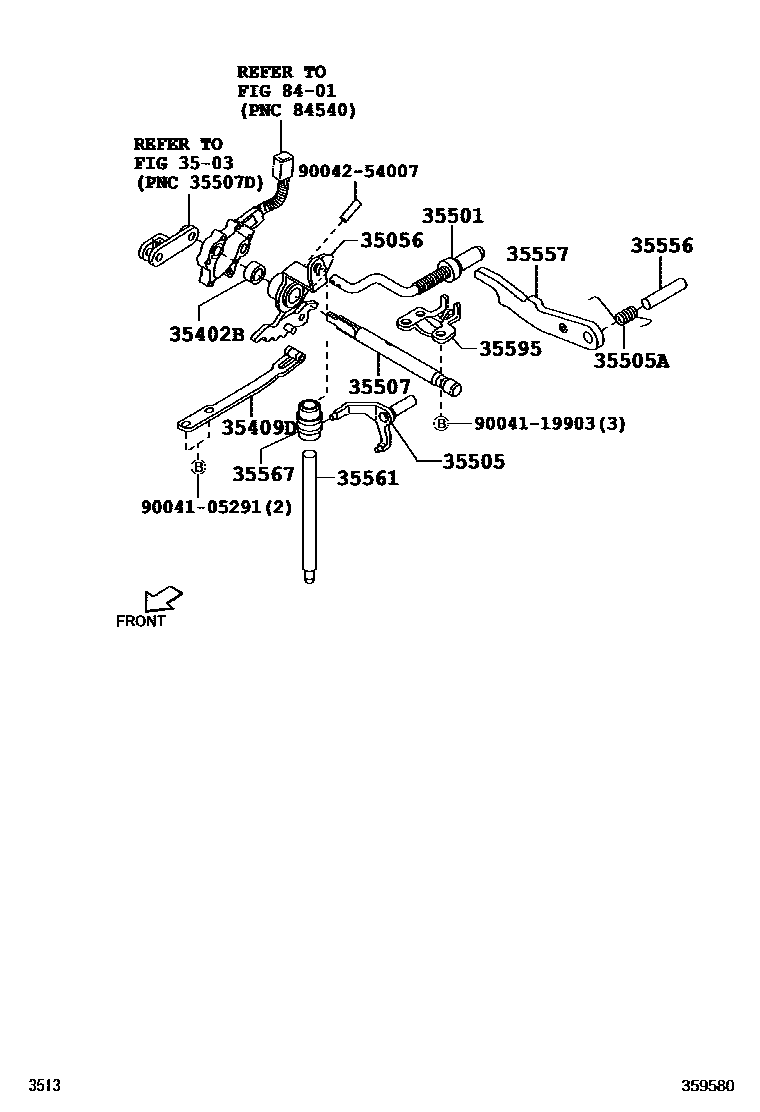

THROTTLE LINK & VALVE LEVER (ATM)

0001 1 0002 1

3503TRANSMISSION CASE & OIL PAN (ATM)

→ Go to FIG 35-03

35056LEVER SUB-ASSY, PARKING LOCK W/ROLLER

main35057-97501iS402,412..4FC200801-202007

main35057-B1010iS403,413..4FC202007

35402BSEAL,OIL(FOR MANUAL VALVE)

main90043-11256iS403,413..4FC202007

35409DSPRING SUB-ASSY, MANUAL DETENT

main35409-97501iS402,412..4FC200801-202007

main35409-B1020iS403,413..4FC202007

35501ROD SUB-ASSY, PARKING LOCK

main35501-97501iS402,412..4FC200801-201706

main35501-B5010iS403,413..4FC202007

main35501-B5020iS402,412..4FC201707-202007

35505LEVER SUB-ASSY, MANUAL VALVE

main35505-97501iS402,412..4FC200801-202007

35505ASPRING, TORSION (FOR MANUAL VALVE LEVER)

main90045-08388iS402,412..4FC200801-202007

35507SHAFT SUB-ASSY, TRANSMISSION CONTROL INTERMEDIATE

main33511-B1010iS403,413..4FC202007

main35511-97501iS402,412..4FC200801-202007

35556SHAFT, PARKING LOCK PAWL

main35556-87502iS403,413..4FC202007

35557PAWL, PARKING LOCK

main35557-B0010iS402,412..4FC200801-202007

main35557-B1030iS403,413..4FC202007

35561SHAFT, MANUAL VALVE LEVER

main35568-97501iS402,412..4FC200801-202007

35567ROD, TRANSMISSION CONTROL, 3RD

main35567-97501iS402,412..4FC200801-202007

35595BRACKET, PARKING LOCK PAWL

main35595-97501iS402,412..4FC200801-202007

main35595-B1020iS403,413..4FC202007

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9004105291

main90041-05291

9004119903

main90041-19903

9004254007

main90042-54007

17 parts on this diagram · 2 diagrams in section
