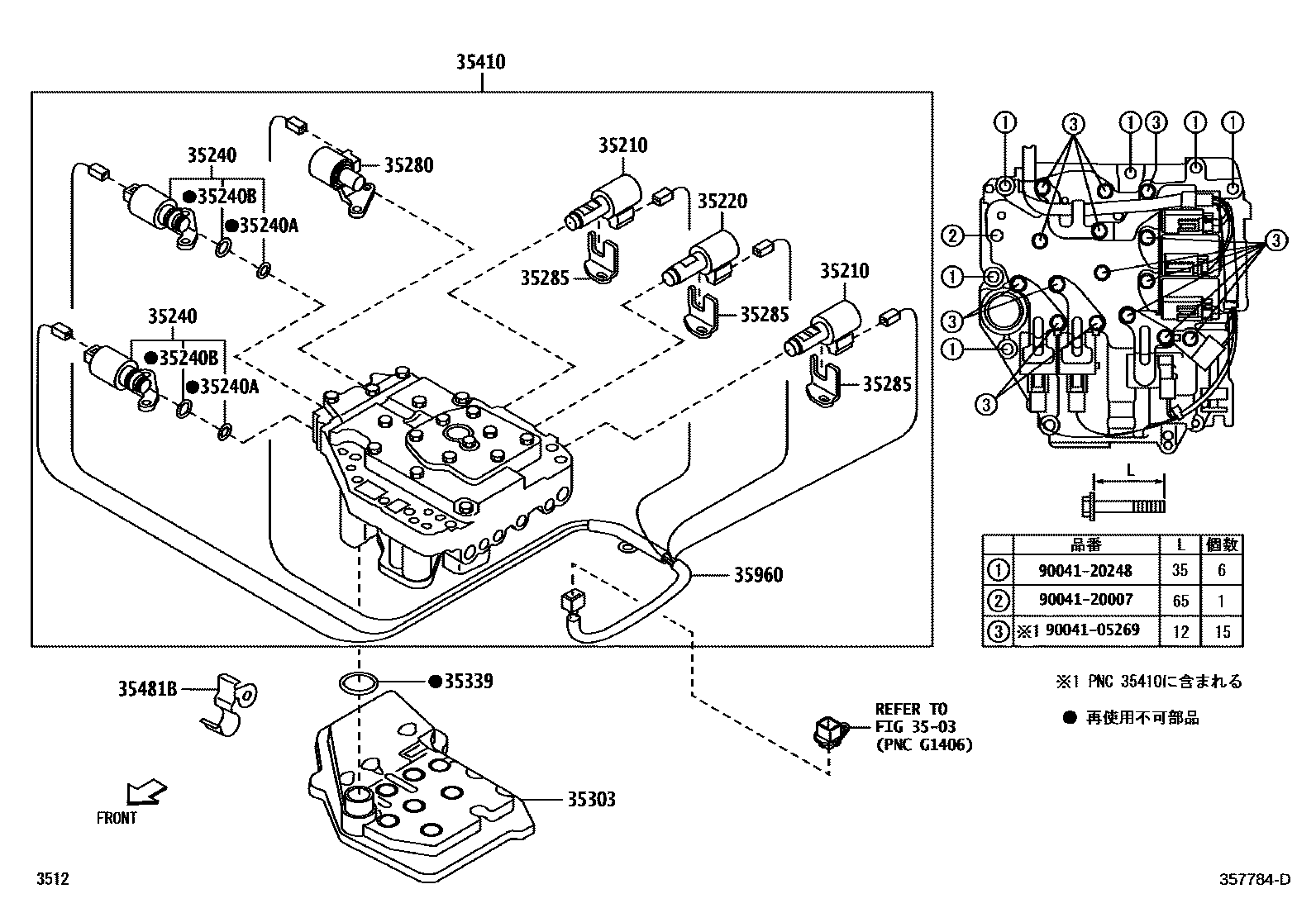

VALVE BODY & OIL STRAINER (ATM)

0001 1 0002 1

3503TRANSMISSION CASE & OIL PAN (ATM)

→ Go to FIG 35-03

35210SOLENOID ASSY, CLUTCH CONTROL, NO.1

main35210-97201×2iS402,412..4FC200801-202007

35220SOLENOID ASSY, CLUTCH CONTROL, NO.2

main35220-97201iS402,412..4FC200801-202007

35240SOLENOID ASSY, AUTOMATIC TRANSMISSION 3WAY

main35240-97201×2iS402,412..4FC200801-201206

main35240-B1010×2iS402,412..4FC201206-202007

main35240-B1020iS403,413..4FC202007

35240ARING, O, NO.1 (FOR TRANSMISSION 3WAY SOLENOID)

main90043-01279×2iS402,412..4FC200801-202007

35240BRING, O, NO.2 (FOR TRANSMISSION 3WAY SOLENOID)

main90043-01280×2iS402,412..4FC200801-202007

35280SOLENOID ASSY, LOCK UP CONTROL

main35280-97201iS402,412..4FC200801-202007

35285PLATE, SOLENOID LOCK

main35285-97201×3iS402,412..4FC200801-202007

35303STRAINER SUB-ASSY, OIL

main35303-97501iS402,412..4FC200801-202007

main35303-B1010iS403,413..4FC202007

35339GASKET, OIL STRAINER

main90043-01364iS403,413..4FC202007

main96721-24021iS402,412..4FC200801-201301

35410BODY ASSY, TRANSMISSION VALVE

main35410-97206iS402,412..4FC200801-202007

main35410-B1061iS403,413..4FC202007

35481BCLAMP, VALVE BODY WIRE HARNESS

main35481-97501iS402,412..4FC200801-202007

35960WIRE, SOLENOID

main35960-97203iS402,412..4FC200801-202007

9004105269

main90041-05269

9004120007

main90041-20007

9004120248

main90041-20248

16 parts on this diagram · 2 diagrams in section
