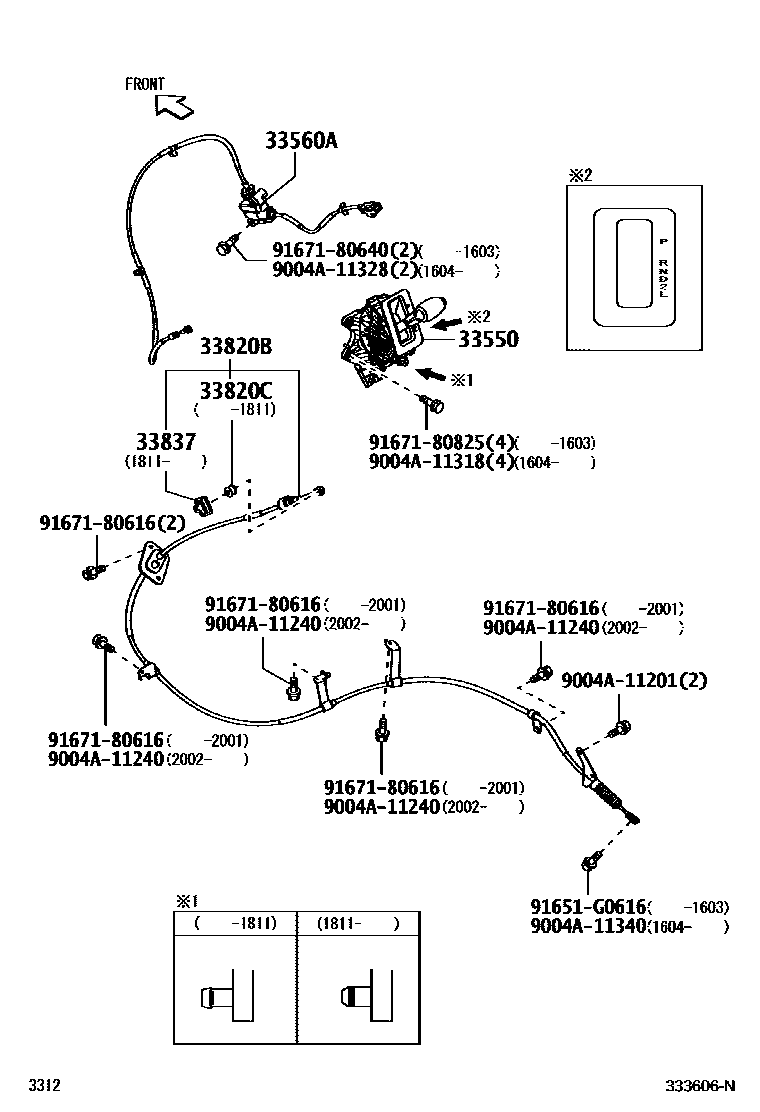

SHIFT LEVER & RETAINER

0001 1ATM 2WD 0002 1ATM 4WD 0003 1ATM 0004 1MTM 2WD 0005 1MTM 4WD 0006 1MTM

33550FLOOR SHIFT ASSY, TRANSMISSION

main33550-BZ090iS402,412..5F200801-202007

main33550-BZ110-C0iS402,412..4FC200801-201811

BLACK,TRIM1#

main33550-BZ111-C0iS402,412..4FC201811-202007

BLACK,TRIM1#

main33550-BZ530iS403,413..5F202007-202108

main33550-BZ531iS403,413..VAN..5F202108-202503

main33550-BZ540-C0iS403,413..4FC202007-202008

BLACK,TRIM1#

main33550-BZ541-C0iS403,413..4FC202009

BLACK,TRIM1#

33560ACABLE ASSY, SHIFT LOCK RELEASE

main33560-BZ010iS402,412..4FC200801-201306

main33560-BZ011iS402,412..4FC201307-201507

main33560-BZ012iS402,412..4FC201508-202007

33820BCABLE ASSY, TRANSMISSION CONTROL

main33820-BZ080iS402..5F200801-202007

main33820-BZ100iS402..4FC200801-201803

main33820-BZ101iS402..4FC201804-201811

main33820-BZ102iS402..4FC201811-202007

main33820-BZ130iS412..5F201006-202007

main33820-BZ140iS412..4FC201006-201803

main33820-BZ141iS412..4FC201804-201811

main33820-BZ142iS412..4FC201811-202007

main33820-BZ250iS403,413..4FC202007

main33820-BZ400iS403,413..5F202007-202108

main33820-BZ401iS403,413..PIC..5F202108

33820CBUSH (FOR TRANSMISSION CONTROL CABLE)

main33835-B1010iS402,412..4FC200801-201811

33837CLIP, TRANSMISSION CONTROL CABLE ADJUST

main33837-B2010iS402,412..4FC201811-202007

main33837-B6010iS402,412..5F200801-202007

main33837-B6020iS403,413..PIC..5F202108

9004A11201

main9004A-11201

9004A11240

main9004A-11240

9004A11318

main9004A-11318

9004A11328

main9004A-11328

9004A11340

main9004A-11340

91651G0616

main91651-G0616

9167180616

main91671-80616

9167180640

main91671-80640

9167180825

main91671-80825

14 parts on this diagram · 6 diagrams in section
