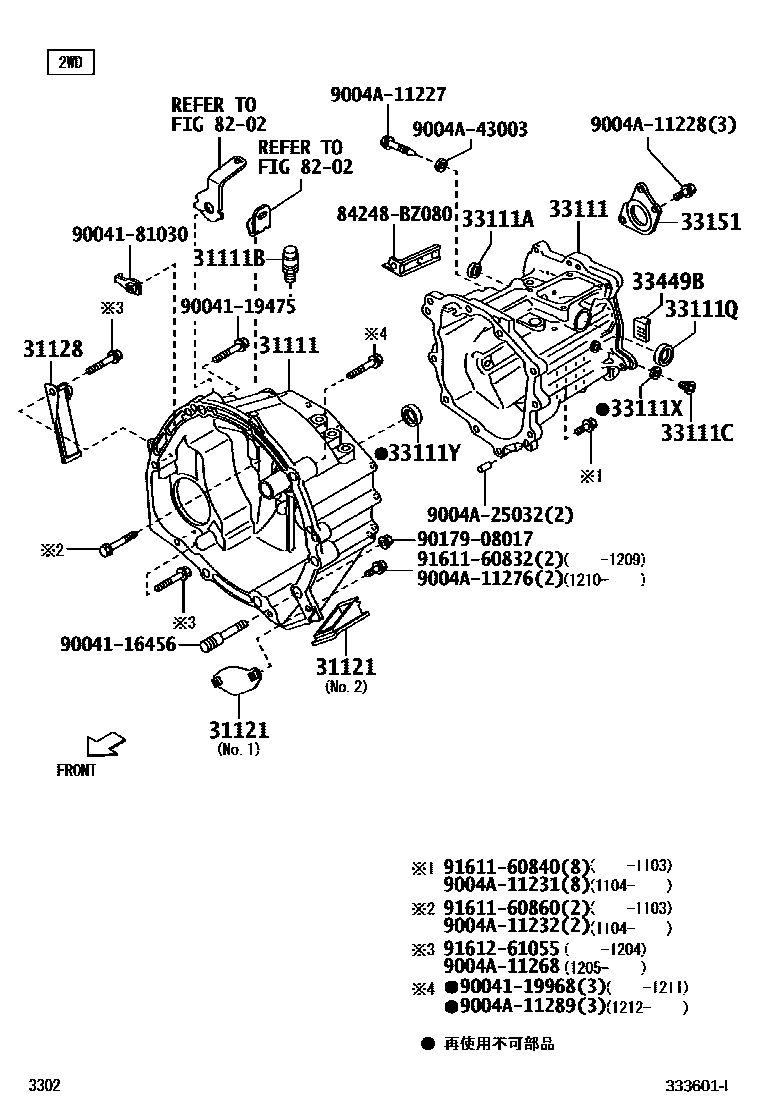

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 12WD 0002 14WD 0003 12WD 0004 14WD 0005 1��������

31111HOUSING, CLUTCH

main31111-BZ030iS402,412..5F200801-202007

main31111-BZ031iS403,413..PIC..5F202007

31111BPLUG(FOR CLUTCH HOUSING)

main90049-15026iS412..5F201006-202007

main9004A-93003iS403..PIC..5F202007

31121COVER, CLUTCH HOUSING, NO.1

main31121-BZ020iS402,412..5F200801-201602

main31121-BZ040iS402,412..5F200801-202007

main31121-BZ050iS403,413..VAN..5F202007-202503

main31121-BZ060iS403,413..VAN..5F202007-202503

31128COVER, CLUTCH HOUSING UNDER

main31128-97501iS402,412..5F200801-201509

main31128-BZ060iS402,412..5F201510-202007

main31128-BZ070iS403,413..PIC..5F202007

33111CASE, MANUAL TRANSMISSION

main33111-B5021iS403,413..VAN..5F202007-202503

main33111-BZ020iS402..5F200801-202007

main33111-BZ050iS412..5F201006-202007

33111APLUG, MANUAL TRANSMISSION CASE

main90043-31025iS413..VAN..5F202007-202503

main9004A-33012iS402..5F200801-201106

main9004A-33016iS403..VAN..5F202007-202503

33111CPLUG(FOR TRANSMISSION CASE)

main90043-41085iS412..5F201006-202007

main9004A-34009iS402..5F200801-200808

33111QSEAL, OIL(FOR TRANSMISSION CASE)

main90043-11308iS413..VAN..5F202007-202503

main9004A-31015iS403..VAN..5F202007-202503

33111XGASKET, TRANSMISSION CASE PLUG

main90044-30186iS413..VAN..5F202007-202503

main9004A-43007iS403..VAN..5F202007-202503

33111YSEAL, OIL(FOR TRANSMISSION CASE)

main90043-10051iS413..VAN..5F202007-202503

main9004A-31013iS403..PIC..5F202007

33151RETAINER, OUTPUT SHAFT REAR BEARING(MTM)

main33151-97502iS413..VAN..5F202007-202503

main33151-BZ010iS403..VAN..5F202007-202503

33449BMAGNET, TRANSMISSION

main33449-87501iS413..VAN..5F202007-202503

main33449-BZ010iS402..5F200801-201512

main33449-BZ060iS402..5F201601-202007

8202WIRING & CLAMP

→ Go to FIG 82-02

84248BZ080CLAMP, CENTER CLUSTER MODULE SWITCH HARNESS

main84248-BZ080

9004116456

main90041-16456

9004119475

main90041-19475

9004119968

main90041-19968

9004181030

main90041-81030

9004A11227

main9004A-11227

9004A11228

main9004A-11228

9004A11231

main9004A-11231

9004A11232

main9004A-11232

9004A11268

main9004A-11268

9004A11276

main9004A-11276

9004A11289

main9004A-11289

9004A25032

main9004A-25032

9004A43003

main9004A-43003

9017908017

main90179-08017

9161160832

main91611-60832

9161160840

main91611-60840

9161160860

main91611-60860

9161261055

main91612-61055

32 parts on this diagram · 5 diagrams in section
