TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

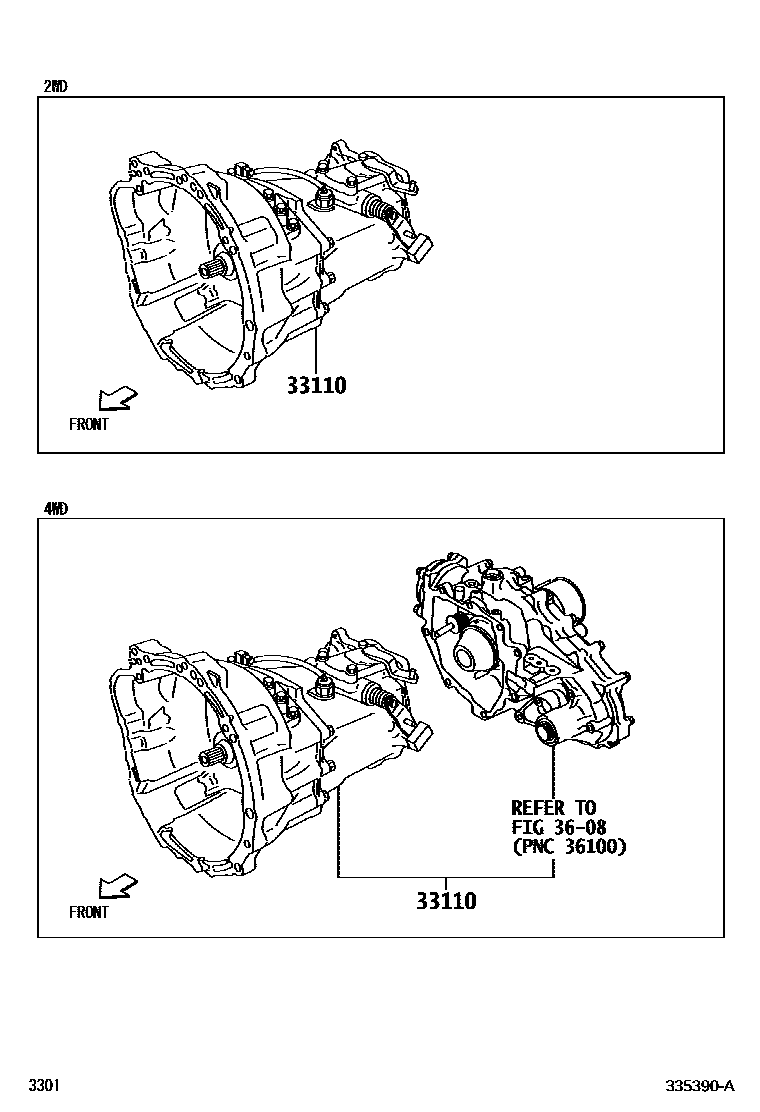

Parts diagram

33110TRANSMISSION ASSY, MANUAL

main33010-B5110i201006-202007

main33010-B5160i202007-202503

main33030-BZ160i200801-202007

main33030-BZ400i202007-202503

3608TRANSFER ASSEMBLY & GASKET KIT

→ Go to FIG 36-08

2 parts on this diagram · 1 diagram in section
