STARTER

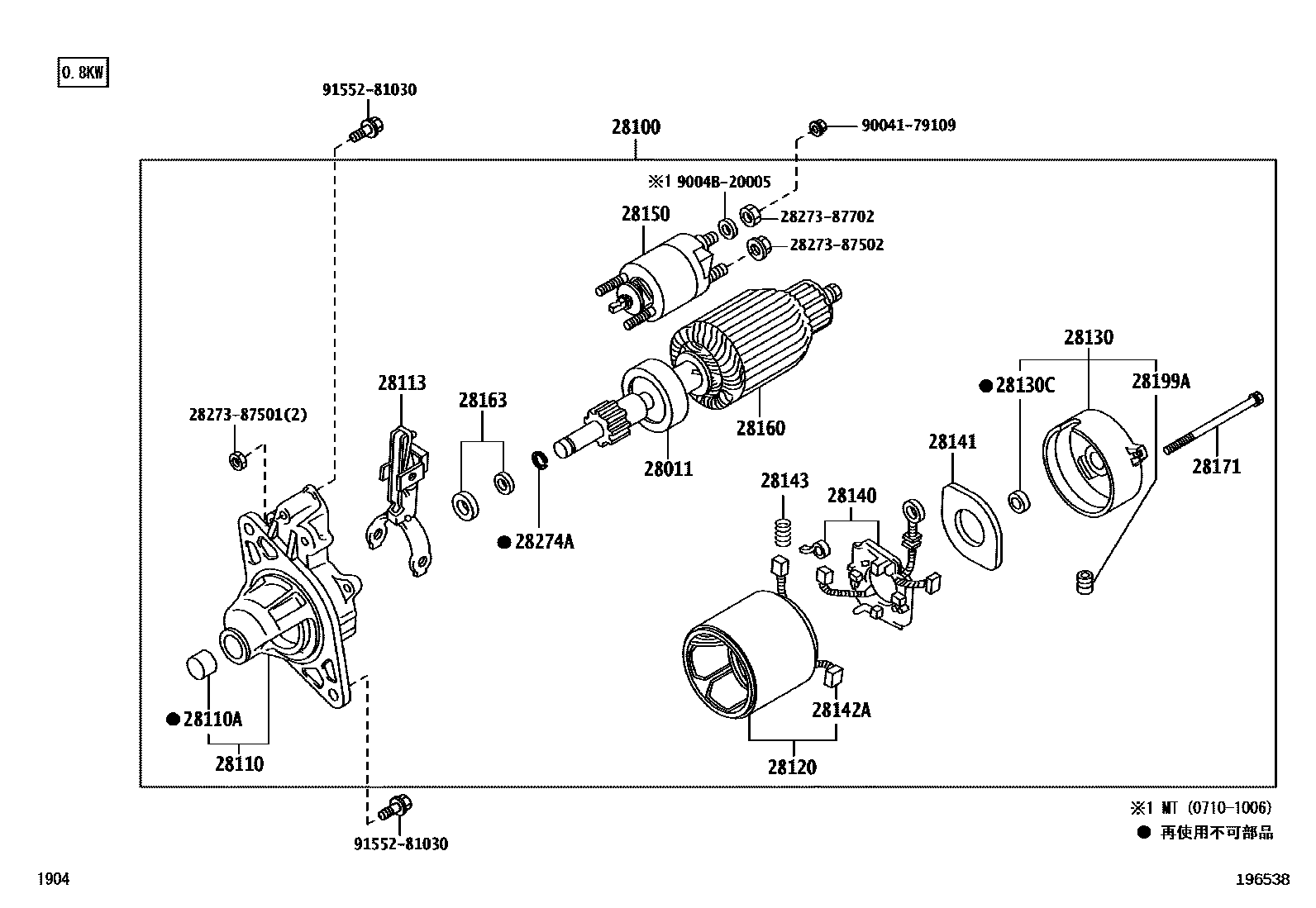

Parts diagram

28011CLUTCH SUB-ASSY, STARTER

main28011-97502i200801-201112

main28011-97503i201006-202007

main28011-B5020i202007-202503

main28011-BZ070i201411-202007

main28011-BZ100i200801-201411

28100STARTER ASSY

main28100-B5100i202007-202503

main28100-B5110i202007

main28100-BZ100i200801-201411

main28100-BZ110i200801-201111

main28100-BZ120i201006-202007

main28100-BZ130i201006-202007

main28100-BZ160i201112-201411

main28100-BZ240i201411-201607

main28100-BZ241i201608-202007

main28100-BZ250i201411-201607

main28100-BZ251i201608-202007

28110HOUSING ASSY, STARTER DRIVE

main28110-97502i200801-201411

main28110-97503i200801-201112

main28110-BZ090i201411-202007

main28110-BZ120i201006-202007

main28110-BZ130i201006-202007

main28110-BZ160i201411-202007

28110ABEARING(FOR STARTER HOUSING)

main28277-87201i200801-202503

main28277-87201i200801-201112

main28277-87201i201006-202007

main9004C-03001i201006-202007

28113LEVER, STARTER PINION DRIVE

main28113-87204i201006-202007

main28113-87503i200801-201411

main28113-BZ030i201411-202007

28120YOKE ASSY, STARTER

main28120-87401i201112-201411

main28120-87507i200801-201411

main28120-97502i201006-202007

main28120-BZ070i201411-202007

main28120-BZ080i201411-202007

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-87511i200801-201411

main28130-BZ110i200801-201112

main28130-BZ140i201411-202007

main28133-87501i201006-202007

main28133-87502i201006-202007

28130CBEARING, STARTER FLANGE

main28271-87502i200801-201411

main90099-10183i201006-202503

28140HOLDER ASSY, STARTER BRUSH

main28140-87203i201006-202007

main28140-97501i202007-202503

main28140-BZ020i201411-202007

main28149-87501i200801-201411

28141INSULATOR, BRUSH HOLDER

main28141-87501i200801-201411

28142ASTARTER KIT

main28142-87204i201006-202007

main28142-87504i200801-201411

main28142-97501i202007-202503

28143SPRING, STARTER BRUSH

main28143-10020i200801-201411

main28143-87202i201006-202503

28150SWITCH ASSY, MAGNET STARTER

main28150-87536i200801-202007

main28150-BZ030i201411-202007

main28150-BZ050i201411-202007

28160ARMATURE ASSY, STARTER

main28160-87207i201112-201411

main28160-87208i201006-202007

main28160-97201i200801-201411

main28160-BZ040i201411-202007

28163NUT OR COLLAR, PINION STOP, STARTER

main28142-87505i200801-201411

main28163-87202i201006-202007

main28163-BZ140i201411-202007

28171BOLT, STARTER

main28272-87501i200801-201411

main9004B-10015i201411-202007

main90099-04448i201006-202007

28199APROTECTOR, DUST STARTER

main28199-46080i201006-202007

main28199-87505i200801-201411

main28199-BZ140i201411-202007

28274SNAP RING, STARTER, NO.1

main90096-90030i201006-202503

28274ASNAP RING, STARTER, NO.2

main28274-87501i200801-201411

main28274-87503i201006-202503

2827387501

main28273-87501

2827387502

main28273-87502

2827387702

main28273-87702

9004179109

main90041-79109

9004B20005

main9004B-20005

9155281030

main91552-81030
