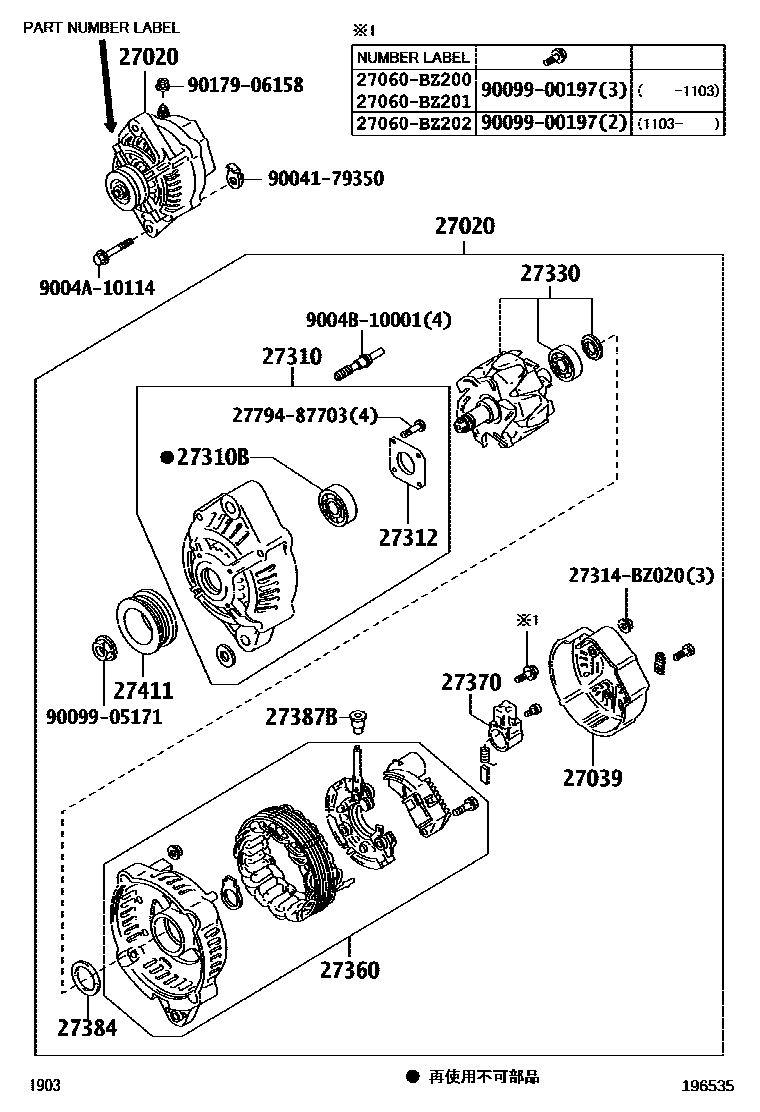

Toyota LITE/TOWNACE — ALTERNATOR
27310FRAME ASSY, DRIVE END, ALTERNATOR
27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)
27312PLATE, RETAINER
27370HOLDER ASSY, ALTERNATOR BRUSH
27384WASHER
27387BINSULATOR, ALTERNATOR TERMINAL
27411PULLEY, ALTERNATOR
27314BZ020
2779487703
9004179350
9004A10114
9004B10001
9009900197
9009905171
9017906158
19 parts on this diagram · 3 diagrams in section
ALTERNATOR for Toyota LITE/TOWNACE
This section contains 31 genuine Toyota parts for the ALTERNATOR system of the Toyota LITE/TOWNACE. Key components include: BRACKET, ALTERNATOR, NO.1, ALTERNATOR ASSY, COVER, ALTERNATOR REAR END, FRAME ASSY, DRIVE END, ALTERNATOR, BEARING(FOR ALTERNATOR DRIVE END FRAME).
