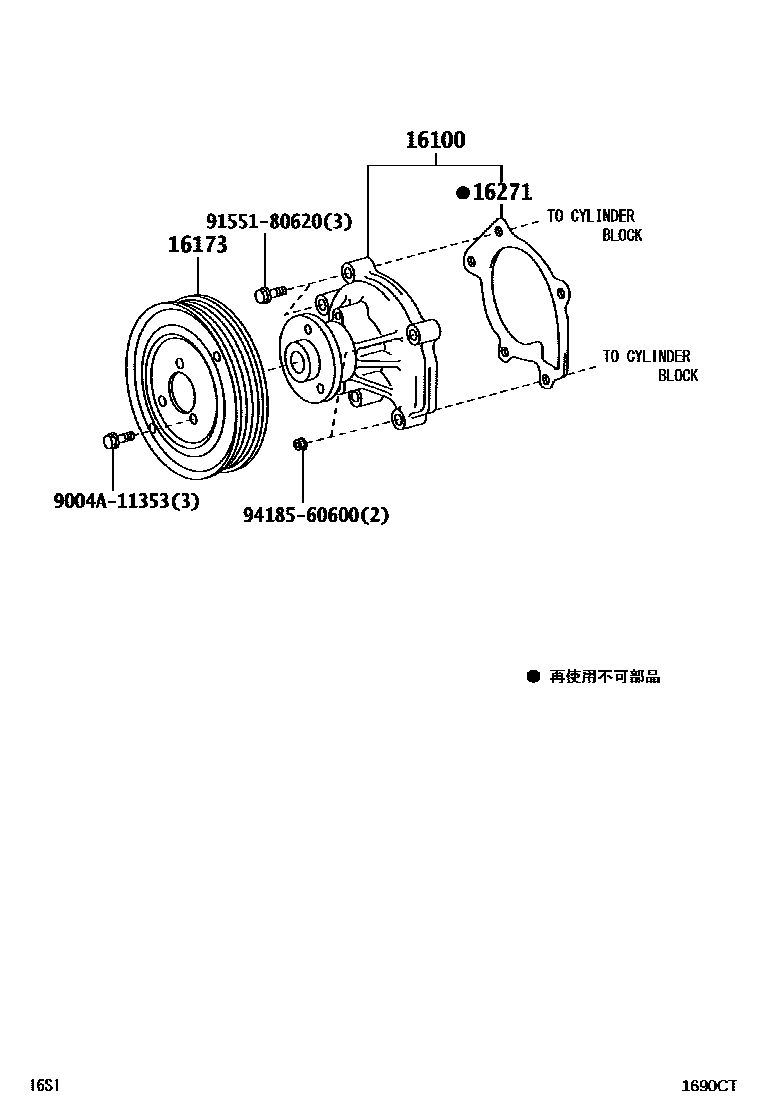

WATER PUMP

0001 1 0002 1

16100PUMP ASSY, ENGINE WATER

main16100-B9421i2NRVE..S403,413..VAN..5F202007-202503

main16100-B9440i3SZVE..S402,412200801-201302

main16100-B9441i3SZVE..S402,412201302-201503

main16100-B9442i3SZVE..S402,412201503-202007

16173PULLEY, WATER PUMP

main16173-BZ050i3SZVE..S402,412201210-202007

main16173-BZ060i3SZVE..S402,412200801-201210

main16173-BZ080i2NRVE..S403,413..VAN..5F202007-202503

16271GASKET, WATER PUMP

main16271-BZ020i3SZVE..S402,412201210-202007

main16271-BZ040i3SZVE..S402,412200801-201210

main16271-BZ060i2NRVE..S403,413..VAN..5F202007-202503

9004A11353

main9004A-11353

9155180620

main91551-80620

9418560600

main94185-60600

6 parts on this diagram · 2 diagrams in section
