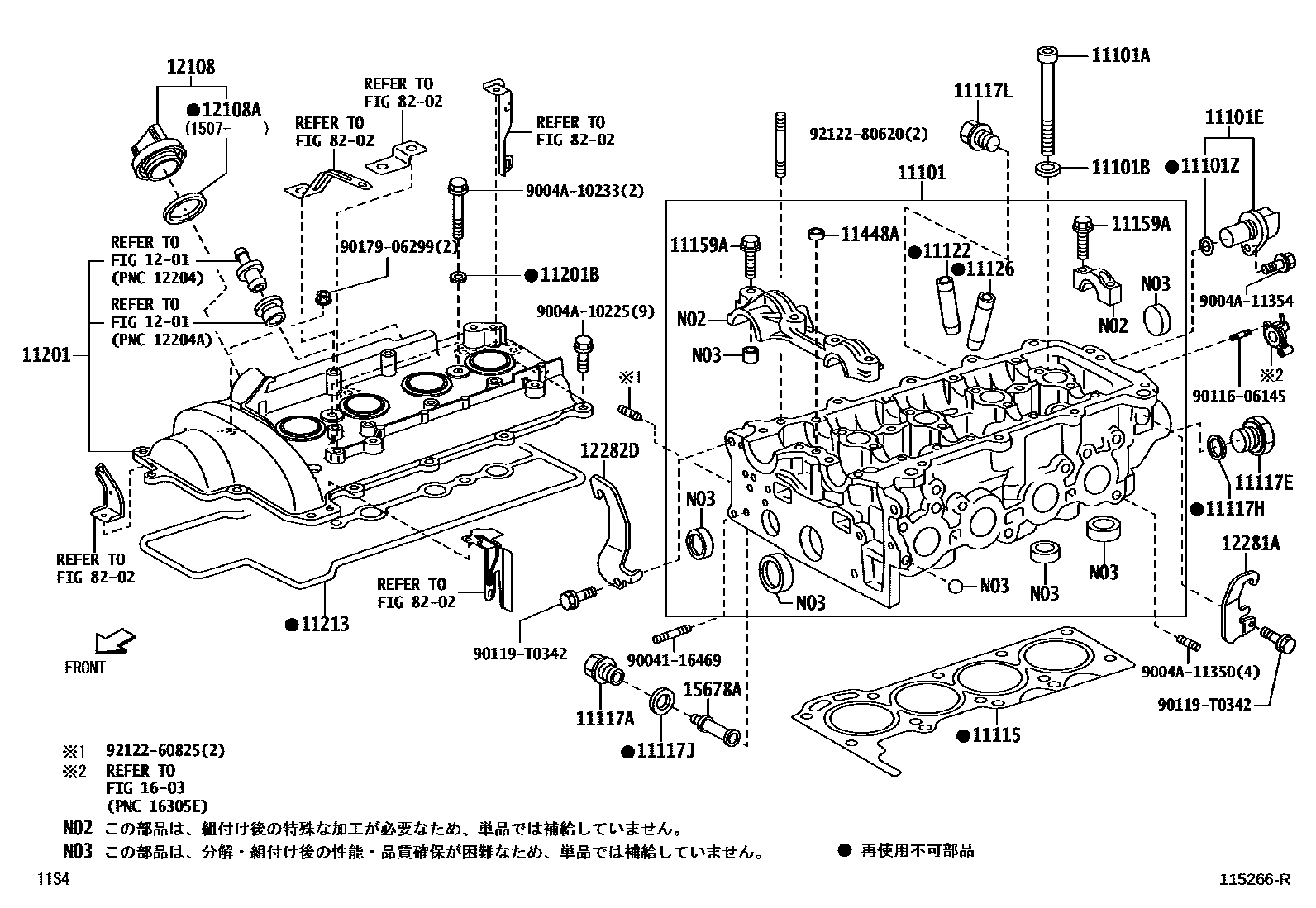

CYLINDER HEAD

0001 1 0002 1 0003 1

11101HEAD SUB-ASSY, CYLINDER

main11101-B9420i3SZVE..S402,412200801-202007

main11101-B9623i2NRVE..S403,413..PIC;2NRVE..S403,413..VAN..4FC202007

11101ABOLT(FOR CYLINDER HEAD SET)

main90041-10045×10i3SZVE..S402,412200801-202007

main90910-T2012×10i2NRVE..S403,413..VAN..5F202007-202503

11101BWASHER, PLATE(FOR CYLINDER HEAD SET)

main90042-01637×10i3SZVE..S402,412200801-202007

main90201-10344×10i2NRVE..S403,413..VAN..5F202007-202503

11101ESENSOR, CAM POSITION

main19300-BZ020i3SZVE..S402,412200801-202007

main90919-T5002×2i2NRVE..S403,413..VAN..5F202007-202503

11101ZO RING, CAM POSITION SENSOR

main9004A-30059×2i2NRVE..S403,413..PIC;2NRVE..S403,413..VAN..4FC202007

11115GASKET, CYLINDER HEAD

main11115-B0020i3SZVE..S402,412200801-202007

main11115-BZ100i2NRVE..S403,413..PIC;2NRVE..S403,413..VAN..4FC202007

11117APLUG, W/HEAD TAPER SCREW, NO.1

main9004A-34018i3SZVE..S402,412201805-202007

main90341-14013i3SZVE..S402,412200801-201804

11117EPLUG, W/HEAD STRAIGHT SCREW, NO.1

main90043-41077i3SZVE..S402,412200801-201804

main9004A-34017i3SZVE..S402,412201805-202007

11117HGASKET(FOR WATER HOLE)

main90430-12221i3SZVE..S402,412200801-202007

11117JGASKET(FOR CYLINDER HEAD SCREW PLUG)

main90430-14009i3SZVE..S402,412200801-202007

11117LPLUG, W/HEAD STRAIGHT SCREW, LH NO.2

main90043-41078i3SZVE..S402,412200801-202007

11122BUSH, INTAKE VALVE GUIDE

main11122-47020×8i2NRVE..S403,413..VAN..5F202007-202503

main11122-BZ010×8i3SZVE..S402,412200801-202007

main11123-47020×8i2NRVE..S403,413..VAN..5F202007-202503

main11123-BZ010×8i3SZVE..S402,412200801-202007

11126BUSH, EXHAUST VALVE GUIDE

main11122-47020×8i2NRVE..S403,413..VAN..5F202007-202503

main11122-BZ010×8i3SZVE..S402,412200801-202007

main11123-47020×8i2NRVE..S403,413..PIC;2NRVE..S403,413..VAN..4FC202007

main11123-BZ010×8i3SZVE..S402,412200801-202007

11159ABOLT(FOR HEAD TO CAMSHAFT BEARING CAP)

main90041-19911×20i3SZVE..S402,412200801-201804

main9004A-11304×20i3SZVE..S402,412201805-202007

11201COVER SUB-ASSY, CYLINDER HEAD

main11201-BZ050i3SZVE..S402,412200801-202007

main11210-BZ070i2NRVE..S403,413..VAN..5F202007-202503

11201BWASHER, SEAL(FOR CYLINDER HEAD COVER)

main90210-06013×2i3SZVE..S402,412200801-202007

11213GASKET, CYLINDER HEAD COVER

main11213-97401i3SZVE..S402,412201112-202007

main11213-BZ010i3SZVE..S402,412201210-201710

main11213-BZ011i3SZVE..S402,412201711-202007

main11213-BZ060i3SZVE..S402,412200801-201112

main11213-BZ160i2NRVE..S403,413..VAN..5F202007-202503

11448AORIFICE, CYLINDER HEAD OIL

main11448-BZ010i3SZVE..S402,412200801-202007

1201VENTILATION HOSE

→ Go to FIG 12-01

12108CAP SUB-ASSY, OIL FILLER

main12180-BZ010i3SZVE..S402,412201210-201507

main12180-BZ040i3SZVE..S402,412200801-201210

main12180-BZ060i2NRVE..S403,413..PIC;2NRVE..S403,413..VAN..4FC202007

12108AGASKET(FOR OIL FILLER CAP)

main90430-37140i2NRVE..S403,413..PIC;2NRVE..S403,413..VAN..4FC202007

12281AHANGER, ENGINE, NO.1

main12281-0Y110i2NRVE..S403,413..VAN..5F202302-202503

main12281-97401i3SZVE..S402,412200801-202007

main12281-97402i3SZVE..S402,412200801-202007

main12281-BZ080i2NRVE..S403,413202007-202301

12282DHANGER, ENGINE, NO.2

main12282-97405i3SZVE..S402,412200801-202007

main12282-97406i3SZVE..S402,412200801-202007

main12282-BZ141i2NRVE..S403,413..VAN..5F202007-202503

15678AFILTER, OIL CONTROL VALVE

main15678-0Y010i2NRVE..S403,413..VAN..5F202007-202503

main15678-21010i3SZVE..S402,412200801-202007

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

8202WIRING & CLAMP

→ Go to FIG 82-02

9004116469

main90041-16469

9004A10225

main9004A-10225

9004A10233

main9004A-10233

9004A11350

main9004A-11350

9004A11354

main9004A-11354

9011606145

main90116-06145

90119T0342

main90119-T0342

9017906299

main90179-06299

9212260825

main92122-60825

9212280620

main92122-80620

36 parts on this diagram · 3 diagrams in section
