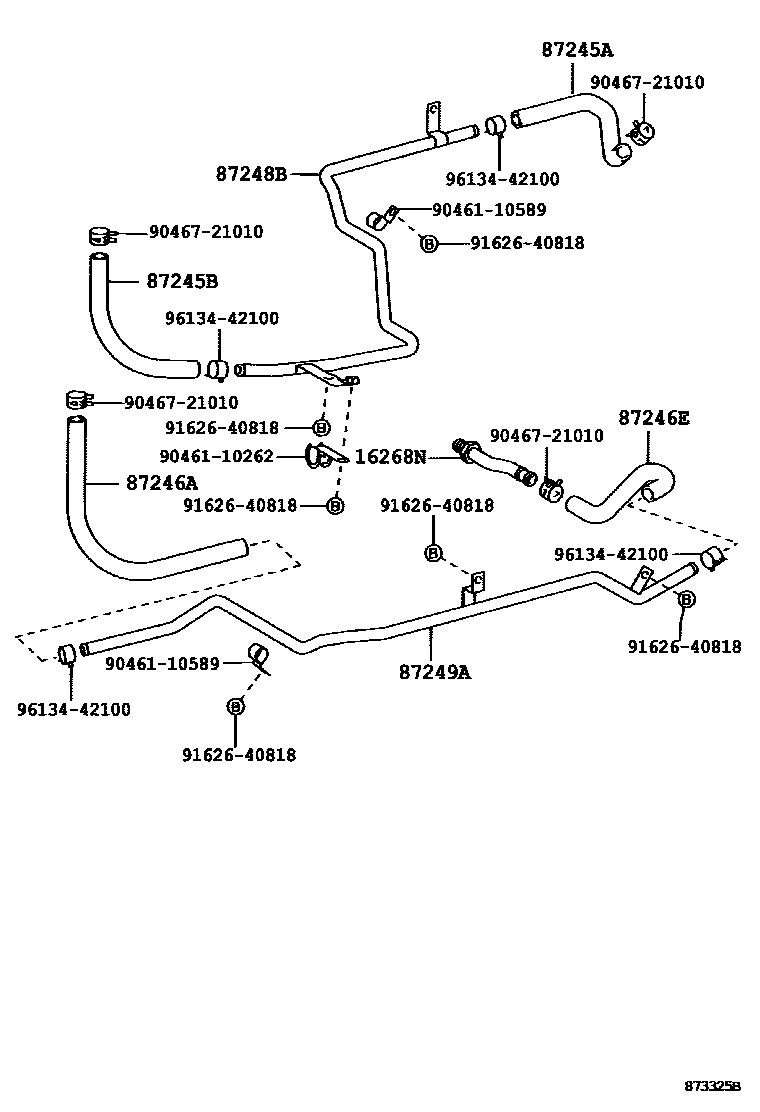

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0003 1 0004 1

16268NPIPE, WATER BY-PASS

main16268-64110i3CE..CM7#,8#199906-200208

87245AHOSE, HEATER WATER, INLET A

main87245-27021iCM7#,8#199906-200208

main87245-27022iCM7#,8#200208-200408

main87245-27041iCM7#,85..IV3199906-200208

main87245-27042iCM7#,85..IV3200208-200408

main87245-27060iKM7#,8#199906-200208

87245BHOSE, HEATER WATER, INLET B

main87245-27080iKM7#,8#200208-200708

main99556-30500iCM7#,8#; KM7#,8#199906-200208

87246AHOSE, HEATER WATER, OUTLET A

main87245-27080×2iCM7#,8#200208-200408

main99556-30500iKM7#,8#199906-200208

main99556-30700iCM7#,8#199906-200208

87246EHOSE, HEATER WATER, OUTLET E

main87245-27031iCM7#,8#200208-200408

main87245-27070iKM7#,8#199906-200208

87248BPIPE, HEATER WATER INLET, B

main87208-95743iCM7#,8#199906-200208

87249APIPE, HEATER WATER OUTLET, A

main87208-27030iCM7#,8#199906-200208

9046110262

main90461-10262

9046110589

main90461-10589

9046721010

main90467-21010

9162640818

main91626-40818

9613442100

main96134-42100

12 parts on this diagram · 4 diagrams in section
