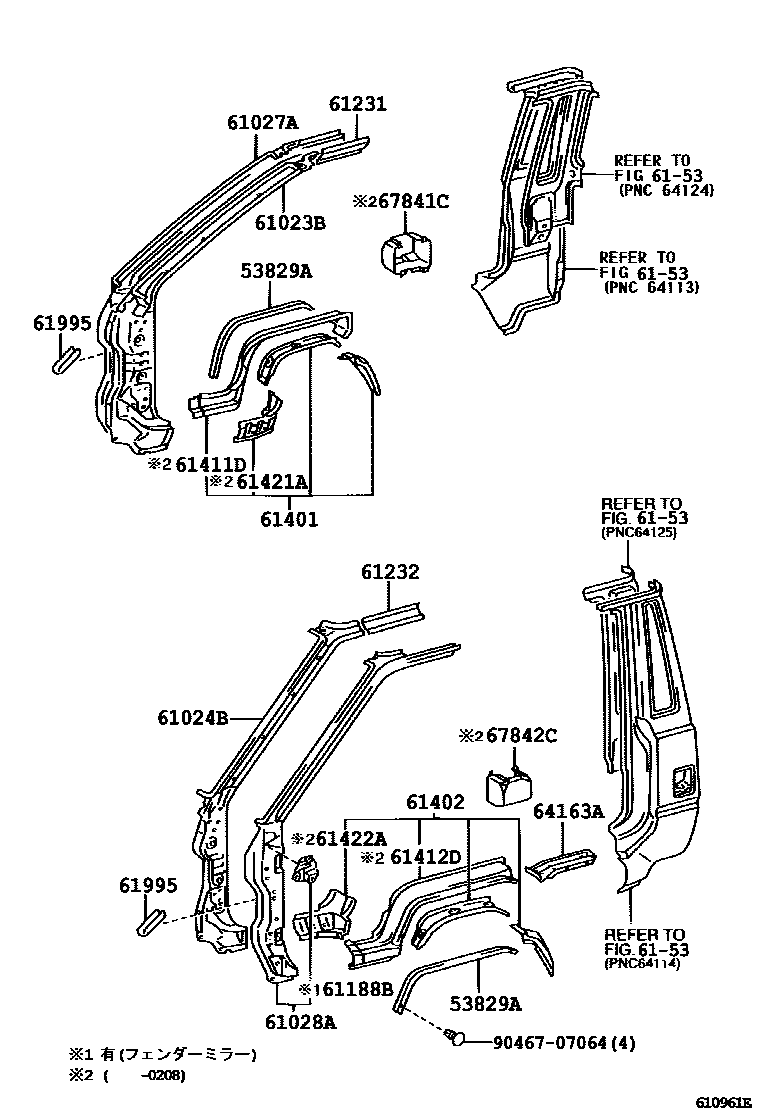

SIDE MEMBER

0001 1 0002 1����� ���

53829APROTECTOR, FRONT FENDER, LOWER

main53829-95700iCM7#,8#,KM7#,8#199906-200208

main53839-95700iCM7#,8#200208-200408

61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH

main61023-27020iCM7#,8#,KM7#,8#199906-200205

main61023-27080iCM7#,8#200208-200408

61024BPILLAR SUB-ASSY, FRONT BODY, INNER LH

main61024-27020iCM7#,8#,KM7#,8#199906-200205

main61024-27110iCM7#,8#,KM7#,8#200205-200208

61027APILLAR SUB-ASSY, FRONT BODY, OUTER RH

main61027-27010iCM7#,8#,KM7#,8#199906-200205

main61027-27011iCM7#,8#,KM7#,8#200205-200208

main61027-27060iKM85..IV3;CM75,85,KM75..4HC..IV3200106-200205

main61027-27061iKM85..IV3;CM75,85,KM75..4HC..IV3200205-200208

main61027-27070iKM7#,8#200208

main61027-27080iCM75,85..IV6200208-200408

61028APILLAR SUB-ASSY, FRONT BODY, OUTER LH

main61028-27010iCM7#,8#,KM7#,8#199906-200205

main61028-27011iCM7#,8#,KM7#,8#200205-200208

main61028-27110iCM7#,8#; KM7#,8#200208-200408

main61028-27120iCM7#,8#,KM7#,8#..CBU,IV3200208-200408

61188BRETAINER, MIRROR BASE, LH

main61188-95700iCM7#,8#,KM7#,8#..DX199906-200208

61231RAIL, ROOF SIDE, INNER RH

main61231-95705iCM7#,8#,KM7#,8#199906-200208

61232RAIL, ROOF SIDE, INNER LH

main61232-95704iCM7#,8#,KM7#,8#199906-200208

61401PANEL SUB-ASSY, FENDER, RH

main61403-27010iCM7#,8#200208-200408

main61403-27020iCM7#,8#,KM7#,8#200205-200208

main61403-95701iCM7#,8#,KM7#,8#199906-200205

61402PANEL SUB-ASSY, FENDER, LH

main61404-27010iCM7#,8#200208-200408

main61404-27020iCM7#,8#,KM7#,8#200205-200208

main61404-95702iCM7#,8#,KM7#,8#199906-200205

61411DPANEL, FENDER, OUTER RH

main61411-95702iCM7#,8#,KM7#,8#199906-200208

61412DPANEL, FENDER, OUTER LH

main61412-95702iCM7#,8#,KM7#,8#199906-200208

61421APANEL, FENDER, INNER RH

main61421-95702iCM7#,8#,KM7#,8#199906-200208

61422APANEL, FENDER, INNER LH

main61422-95702iCM7#,8#,KM7#,8#199906-200208

6153ROOF PANEL & BACK PANEL

→ Go to FIG 61-53

61995DAM, FRONT BODY PILLAR, OUTER

main61995-95700×2iCM7#,8#,KM7#,8#199906-200208

64163ACOVER, BACK CORNER, INNER

main64164-95700iCM7#,8#,KM7#,8#199906-200208

67841CCOVER, QUARTER SERVICE HOLE, RH

main67841-27010iCM7#,8#,KM7#,8#199906-200208

67842CCOVER, QUARTER SERVICE HOLE, LH

main67842-27010iCM7#,8#,KM7#,8#199906-200208

9046707064

main90467-07064

20 parts on this diagram · 2 diagrams in section
