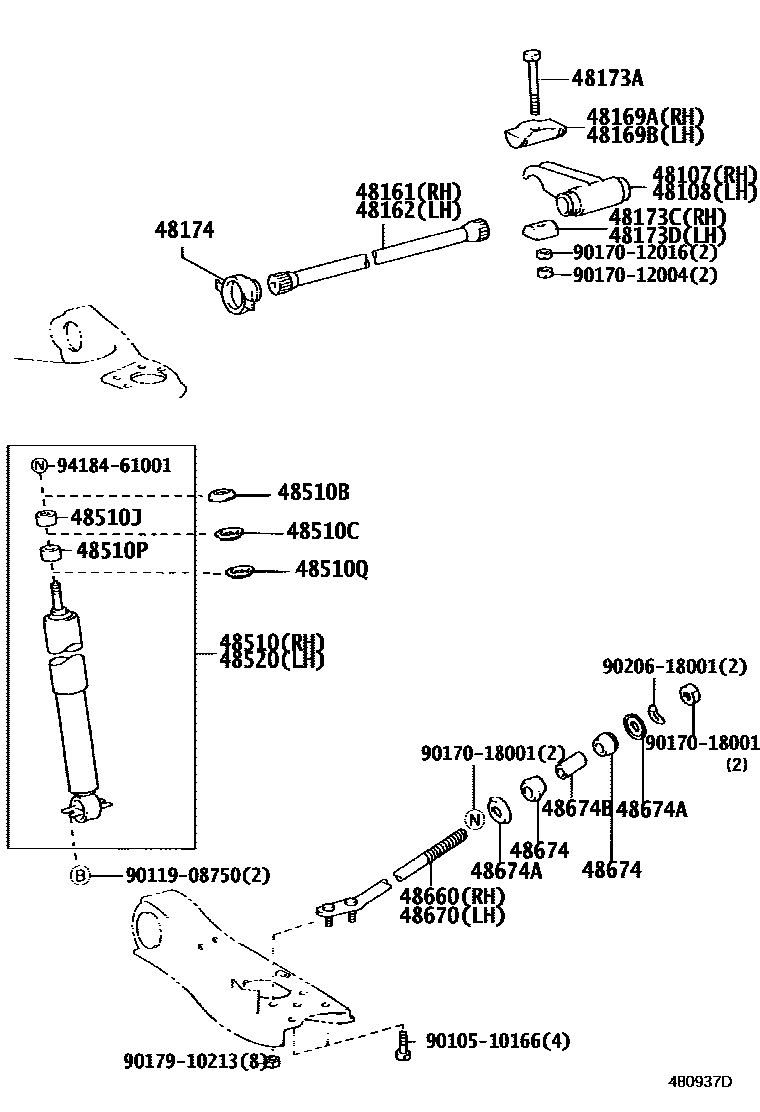

FRONT SPRING & SHOCK ABSORBER

0001 1 0003 1

48107ARM SUB-ASSY, ANCHOR, RH

main48107-27060iCM7#,8#,KM7#,8#199906-200408

48108ARM SUB-ASSY, ANCHOR, LH

main48108-27060iCM7#,8#,KM7#,8#199906-200408

48161SPRING, TORSION BAR, RH

main48161-27220iCM7#,KM7#199906-200208

main48161-27240iCM8#,KM8#199906-200208

main48161-27250iCM85..IV3199906-200208

main48161-27270iCM7#..CBU,IV3200208-200408

main48161-27280iCM75,8#..JL200208-200408

48162SPRING, TORSION BAR, LH

main48162-27220iCM7#,KM7#199906-200208

main48162-27240iCM8#,KM8#199906-200208

main48162-27250iCM85..IV3199906-200208

main48162-27270iCM7#..CBU,IV3200208-200408

main48162-27280iCM75,8#..JL200208-200408

48169ASWIVEL, ANCHOR ARM, RH

main48169-26020iKM7#,8#199906-200408

48169BSWIVEL, ANCHOR ARM, LH

main48169-26020iCM7#,8#,KM7#,8#199906-200408

48173ABOLT, HEXAGON(FOR ANCHOR ARM ADJUSTING)

main90101-12059iCM7#,8#,KM7#,8#199906-200408

48173CSEAT, ANCHOR ARM ADJUSTER, RH

main48173-27010iCM7#,8#199906-200408

48173DSEAT, ANCHOR ARM ADJUSTER, LH

main48173-27010iCM7#,8#199906-200408

48174COVER, TORSION BAR DUST

main48175-27030iCM7#,8#,KM7#,8#199906-200408

48510ABSORBER ASSY, SHOCK, FRONT RH

main48500-29366iCM7#,KM7#199906-200208

main48500-29685iCM8#,KM8#199906-200208

main48511-80096iCM7#..CBU,IV3200208-200408

main48511-80097iCM75,8#..JL200208-200408

48510BRETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)

main90948-02002iKM7#,8#199906-200408

48510CRETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER)

main90948-02105iCM7#,8#,KM7#,8#199906-200408

48510JCUSHION, FRONT SHOCK ABSORBER, NO.1

main90948-01003iCM7#,8#,KM7#,8#199906-200408

48510PCUSHION, FRONT SHOCK ABSORBER, NO.2

main90948-01029iCM7#,8#,KM7#,8#199906-200408

48510QRETAINER, CUSHION, NO.3(FOR FRONT SHOCK ABSORBER)

main90948-02076iCM7#,8#,KM7#,8#199906-200408

48520ABSORBER ASSY, SHOCK, FRONT LH

main48500-29366iCM7#,KM7#199906-200208

main48500-29685iCM8#,KM8#199906-200208

main48511-80096iKM7#..CBU,IV3200208-200408

main48511-80097iCM75,8#..JL200208-200408

48660BAR ASSY, STRUT, RH

main48660-27020iKM7#..CBU,IV3199906-200408

main48660-27060iCM7#,KM7#199906-200408

48670BAR ASSY, STRUT, LH

main48670-27020iCM7#,KM7#199906-200408

main48670-27060iCM7#..CBU,IV3199906-200408

48674CUSHION, STRUT BAR

main48674-22021iCM7#,KM7#199906-200408

48674ARETAINER, CUSHION(FOR STRUT BAR CUSHION)

main90948-02030iCM7#,KM7#199906-200408

48674BCOLLAR(FOR STRUT BAR CUSHION)

main90387-18090iCM7#,KM7#199906-200408

9010510166

main90105-10166

9011908750

main90119-08750

9017012004

main90170-12004

9017012016

main90170-12016

9017018001

main90170-18001

9017910213

main90179-10213

9020618001

main90206-18001

9418461001

main94184-61001

30 parts on this diagram · 2 diagrams in section
