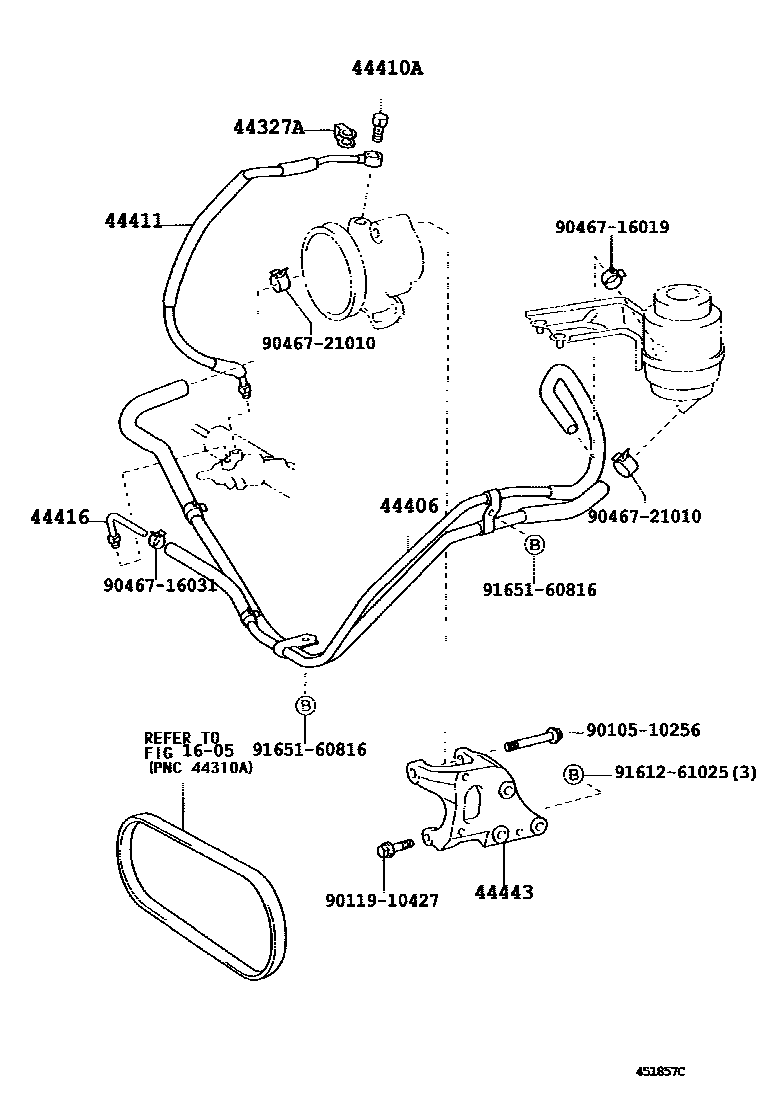

POWER STEERING TUBE

0001 1 0002 1 0003 1������ 0004 1�����(��� ����) 0005 1�����(��� ����)

1605V-BELT

→ Go to FIG 16-05

44327AGASKET, PRESSURE PORT, NO.1

main44327-26020iCM7#,8#,KM7#,8#199906-200208

main44327-30040iCM7#,8#200312-200408

44406TUBE SUB-ASSY, RETURN

main44406-27080iCM7#..CBU,IV3200208-200408

main44406-27090iKM7#; KM70..JL..IV3199906-200208

main44406-27100iKM70..JL..5H..IV3200208-200408

main44406-27110iKM80..IV3200208-200408

main44406-27120iCM8#199906-200208

main44406-27130iKM8#; KM80..IV3199906-200208

44410TUBE ASSY, PRESSURE FEED

main44410-27310iCM7#..IV3199906-199911

main44410-27311iCM7#..IV3200208-200408

main44410-27320iCM85..IV3199906-199911

main44410-27321iCM85..IV3199911-200208

main44410-27330iCM70,KM70..JL..5H..IV3200208-200408

main44410-27340iCM80,KM80..IV3200208-200408

44410ABOLT, UNION(FOR PRESSURE FEED TUBE)

main90401-16034iCM7#,8#,KM7#,8#199906-200208

44411HOSE, PRESSURE FEED

main44411-27070iCM7#199906-200208

main44411-27080iCM8#199906-200208

main44411-27090iKM7#199906-200208

main44411-27100iKM75,8#..JL200208

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-27100iCM7#,KM7#; KM80..IV3199906-200208

main44416-27110iKM75,8#..JL200208

44443BRACKET, PUMP

main44443-27030iKM7#,8#199906-200208

main44443-28030iCM7#,8#199906-200208

9010510256

main90105-10256

9011910427

main90119-10427

9046716019

main90467-16019

9046716031

main90467-16031

9046721010

main90467-21010

9161261025

main91612-61025

9165160816

main91651-60816

15 parts on this diagram · 5 diagrams in section
