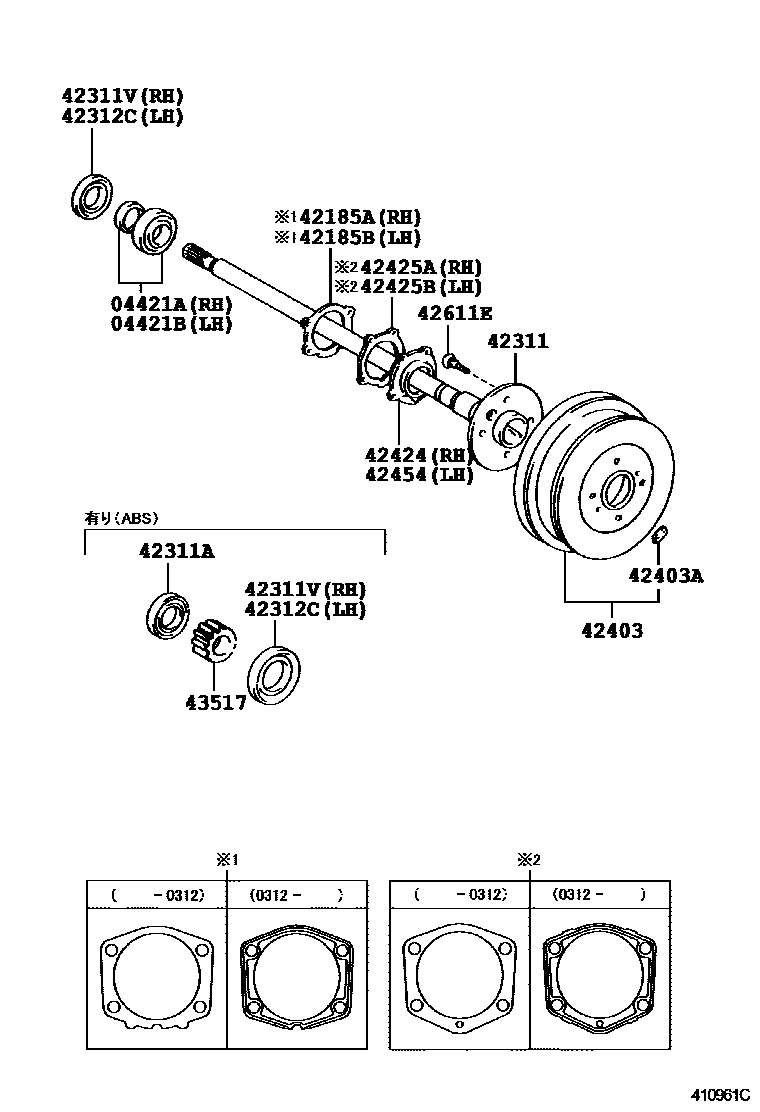

REAR AXLE SHAFT & HUB

0001 1 0002 1���OR�����������OR(���&������

04421ABEARING KIT, REAR AXLE SHAFT, RH

main04421-30031iCM8#,KM8#199906-200208

main04421-30081iCM7#,KM7#199906-200208

04421BBEARING KIT, REAR AXLE SHAFT, LH

main04421-30031iCM8#,KM8#199906-200208

main04421-30081iCM7#..CBU,IV3200208-200408

42185AGASKET, REAR AXLE HOUSING END, RH

main42185-28030iCM8#,KM8#199906-200208

main42185-30061iCM7#,KM7#..CBU,IV3200208-200312

main42185-43030iCM7#,8#200312-200408

42185BGASKET, REAR AXLE HOUSING END, LH

main42185-28030iCM75,8#,KM75,8#..JL200208-200312

main42185-30061iCM7#,KM7#199906-200208

main42185-43030iCM7#,8#200312-200408

42311SHAFT, REAR AXLE

main42311-22100×2iCM7#..CBU,IV3200208-200408

main42311-27050×2iCM75..IV3199906-200008

main42311-27070×2iCM7#..CBU,IV3200208-200408

main42311-27080×2iCM8#,KM8#199906-200208

main42311-27090×2iCM85..IV3199906-200208

main42311-27100×2iCM75..IV3200008-200208

42311ASEAL, OIL(FOR REAR AXLE SHAFT)

main90312-35002×2iCM7#,8#,KM7#,8#199906-200208

42311VSEAL, OIL(FOR REAR AXLE SHAFT RH)

main90310-50001iCM75,85..IV3199906-200208

main90311-52059iCM7#,8#,KM7#,8#199906-200208

42312CSEAL, OIL(FOR REAR AXLE SHAFT LH)

main90310-50001iCM75,85..IV3199906-200208

main90311-52059iCM7#,8#,KM7#,8#199906-200208

42403DRUM SUB-ASSY, REAR BRAKE

main42431-14061×2iCM7#,KM7#199906-200208

main42431-27130×2iCM75..IV3199906-200208

main42431-27140×2iCM85..IV3199906-200208

main42431-28040×2iCM8#,KM8#199906-200208

42403APIECE, BALANCE (FOR REAR BRAKE DRUM)

main90937-01117iCM75,85..IV3199906-200208

main90937-01118iCM75,85..IV3199906-200208

main90937-01119iCM75,85..IV3199906-200208

main90937-01287iCM7#,8#,KM7#,8#199906-200208

main90937-01288iKM7#,8#200208

main90937-01289iCM7#,8#200208-200408

42424RETAINER, REAR AXLE BEARING, OUTER, RH

main42424-30040iCM7#,8#,KM7#,8#199906-200208

42425AGASKET, REAR AXLE BEARING RETAINER, RH

main42425-30031iCM7#,8#,KM7#,8#200208-200312

main42425-43010iKM7#,8#200312

42425BGASKET, REAR AXLE BEARING RETAINER, LH

main42425-30031iCM7#,8#,KM7#,8#199906-200208

main42425-43010iCM7#,8#200312-200408

42454RETAINER, REAR AXLE BEARING, OUTER, LH

main42424-30040iCM7#,8#,KM7#,8#199906-200208

42611EBOLT, HUB (FOR REAR AXLE)

main90942-02047×8iCM7#,KM7#; CM8#,KM8#199906-200208

main90942-02049×10iCM75,85..IV3199906-200208

43517ROTOR, SKID CONTROL, REAR

main43517-28030×2iCM7#,8#,KM7#,8#199906-200208

16 parts on this diagram · 2 diagrams in section
