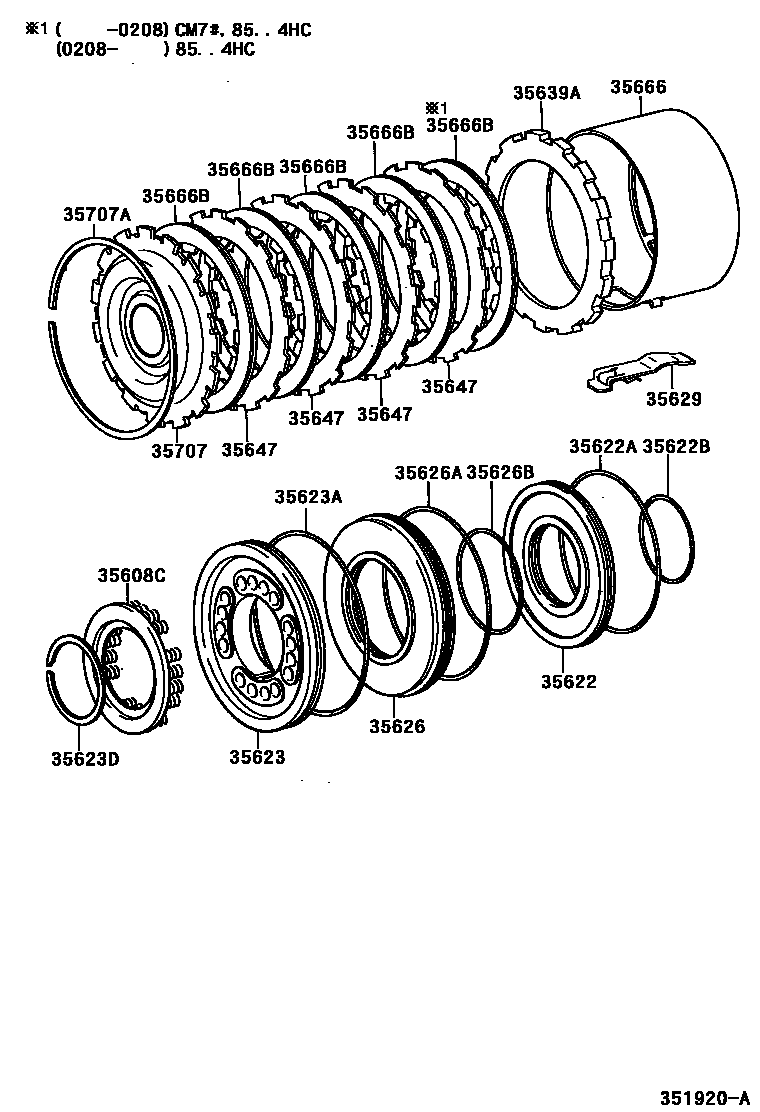

BRAKE NO.3, 1ST & REVERSE BRAKE (ATM)

35608CSPRING SUB-ASSY, NO.3 BRAKE PISTON RETURN

main35608-20020iCM7#,85,KM7#..4HC199906-200408

35622PISTON, BRAKE, NO.2

main35622-22010iCM7#,85,KM7#..4HC199906-200408

35622ARING (FOR BRAKE PISTON OUTER)

main90301-99084iCM7#,85,KM7#..4HC199906-200408

35622BRING (FOR BRAKE PISTON INNER)

main90301-56007iCM7#,85,KM7#..4HC199906-200408

35623PISTON, BRAKE, NO.3

main35623-22010iCM7#,85,KM7#..4HC199906-200408

35623ARING, O (FOR BRAKE PISTON NO.3 )

main90301-99110iCM7#,85,KM7#..4HC199906-200408

35623DRING, SHAFT SNAP (FOR BRAKE)

main90520-52262iCM7#,85,KM7#..4HC199906-200408

35626SLEEVE, BRAKE REACTION

main35626-22010iCM7#,85,KM7#..4HC199906-200408

35626ARING (FOR BRAKE REACTION SLEEVE OUTER)

main90301-99109iCM7#,85,KM7#..4HC199906-200408

35626BRING (FOR BRAKE REACTION SLEEVE INNER)

main90301-67005iCM7#,85,KM7#..4HC199906-200408

35629SPRING (1ST & REVS BRAKE PLATE STOPPER)

main35629-22010iCM7#,85,KM7#..4HC199906-200408

35639APLATE, CLUTCH PRESSURE (FOR BRAKE)

main35639-22010iCM7#,85,KM7#..4HC199906-200208

main35639-22010iCM7#,85..4HC200208-200408

main35639-22020iCM7#,85..4HC200208-200408

main35639-22030iKM7#,85..4HC200208-200408

main35639-22040iCM7#,85..4HC200208-200408

main35639-22050iCM7#,85..4HC200208-200408

main35639-22060iKM7#,85..4HC200208-200408

35647PLATE, CLUTCH, NO.2

main35647-22010iCM7#,85,KM7#..4HC199906-200408

35666TUBE, BRAKE APPLY

main35666-26010iKM7#,85..4HC199906-200408

main35666-30010iCM85..4HC199906-200408

35666BDISC, CLUTCH (FOR BRAKE)

main35633-22060iCM7#..4HC200208-200408

main35633-30060iCM7#,85..4HC199906-200208

35707RACE SUB-ASSY, 1 WAY CLUTCH, INNER

main35707-30020iCM7#,KM7#..4HC199906-200408

main35707-30040iCM85..4HC199906-200408

35707ARING, HOLE SNAP (FOR 1 WAY CLUTCH INNER RACE)

main90521-99140iKM7#,85..4HC199906-200408

17 parts on this diagram · 1 diagram in section
