TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

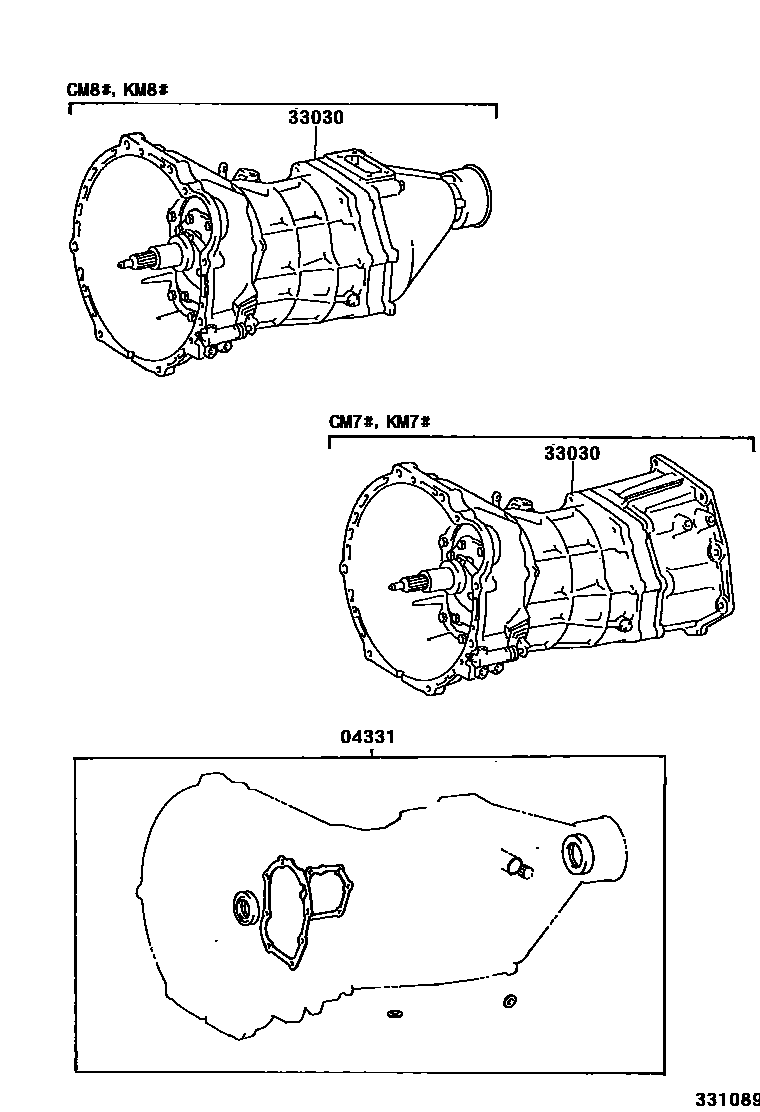

Parts diagram

04331GASKET KIT, MANUAL TRANSMISSION OVERHAUL

main04331-28010i200208

33030TRANSMISSION UNIT ASSY, MANUAL

main33030-2K150i199906-200203

main33030-2K151i200203-200208

main33030-2K152i200408-200708

main33030-2K160i199906-200203

main33030-2K161i200208-200408

main33030-2K162i200408-200708

main33030-2K170i199906-200203

main33030-2K171i200203-200208

main33030-2K180i199906-200203

main33030-2K181i200208-200408

main33030-2K190i199906-200203

main33030-2K191i200203-200208

main33030-2K200i199906-200203

main33030-2K201i200208-200408

main33030-2K202i200408-200708

main33030-2K210i199906-200203

main33030-2K211i200203-200208

main33030-2K220i200208-200408

2 parts on this diagram · 1 diagram in section
