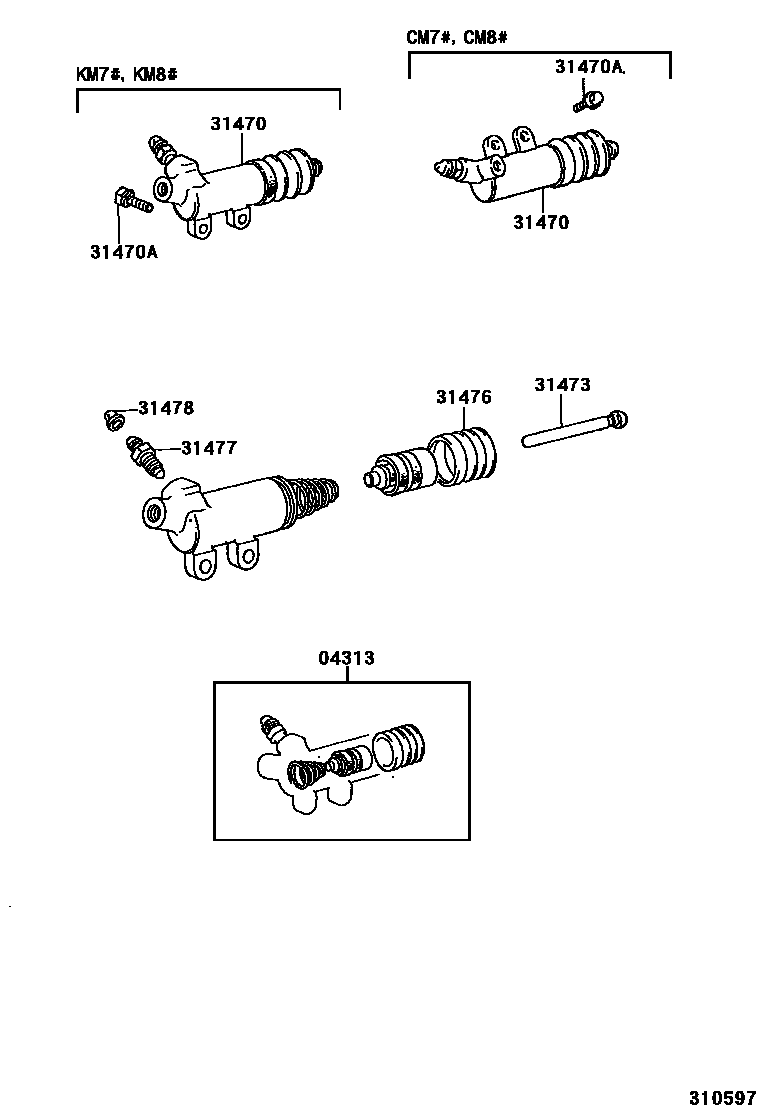

CLUTCH RELEASE CYLINDER

04313CYLINDER KIT, CLUTCH RELEASE

main04313-17020iCM7#,8#..5H199906-200208

main04313-30130iKM7#,8#..5H200208

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-27020iCM7#,8#..5H199906-200208

main31470-30230iKM7#,8#..5H199906-200208

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-60825×2iCM7#,8#,KM7#,8#..5H199906-200208

main91611-B0825×2iCM7#,8#..5H; KM85..IV3200208-200408

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-20031iCM7#,8#..5H200208-200408

main31473-35050iKM7#,8#..5H199906-200208

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iKM7#,8#..5H200208

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-12010iCM7#,8#,KM7#,8#..5H199906-200208

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iCM7#,8#,KM7#,8#..5H199906-200208

7 parts on this diagram · 1 diagram in section
