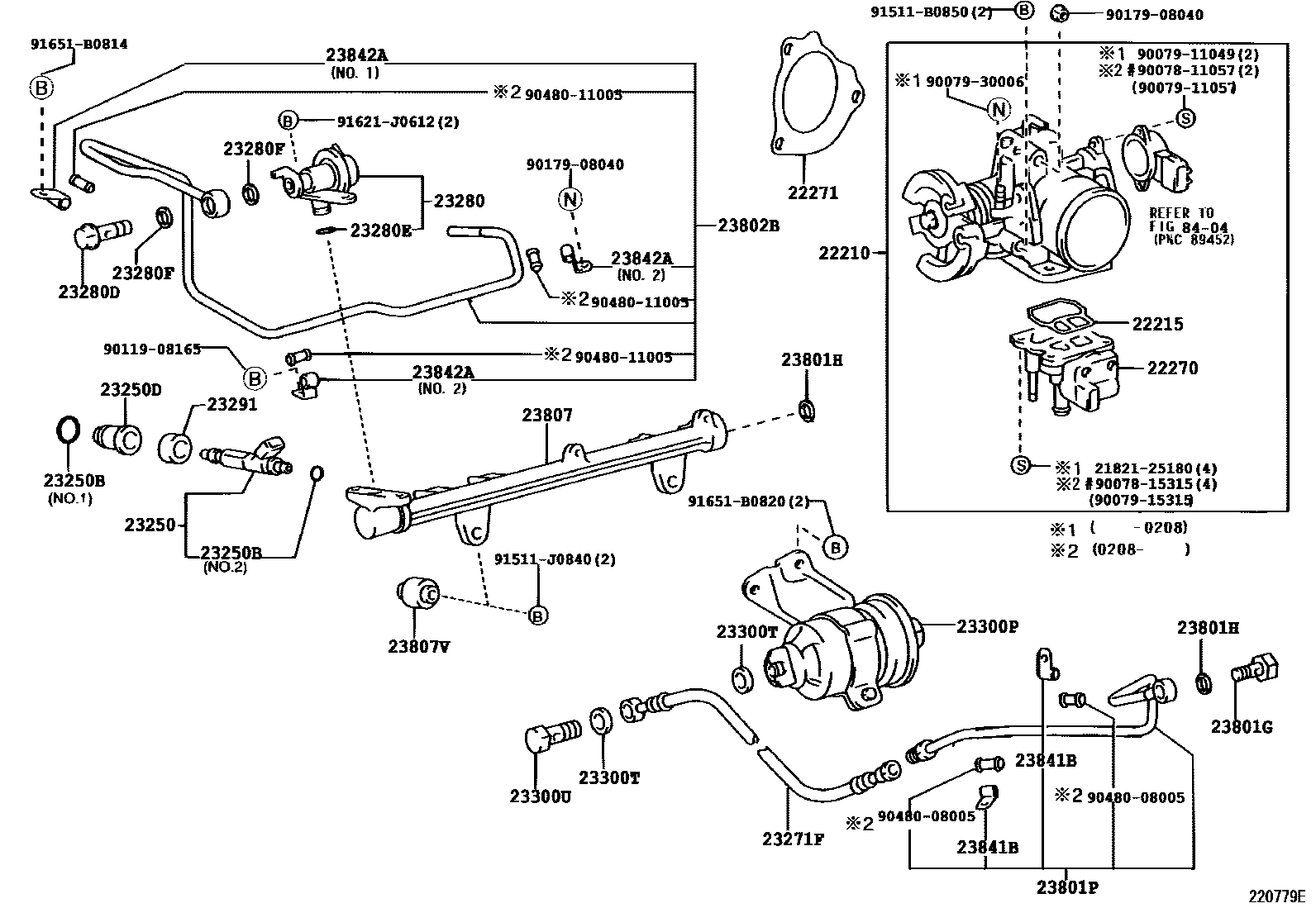

FUEL INJECTION SYSTEM

0001 1 0002 1

22210BODY ASSY, THROTTLE

main22210-06020i7KE..KM7#,8#199906-200208

main22210-06050i7KE..KM7#,8#200208

22215GASKET, THROTTLE BODY COVER

main22215-0D080i7KE..KM7#,8#200208

main22215-74400i7KE..KM7#,8#200208

22270VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)

main22270-06020i7KE..KM7#,8#200208

main22270-13020i7KE..KM7#,8#200208

22271GASKET, THROTTLE BODY

main22271-74070i7KE..KM7#,8#199906-200208

23250INJECTOR ASSY, FUEL

main23209-13030×4i7KE..KM7#,8#199906-200208

23250BRING, O(FOR FUEL INJECTOR)

main90301-07024×4i7KE..KM7#,8#199906-200208

main90301-07037×4i7KE..KM7#,8#200607

main90301-19006×4i7KE..KM7#,8#199906-200208

23250DSPACER(FOR FUEL INJECTOR)

main90561-10018×4i7KE..KM7#,8#199906-200208

23271FHOSE, FUEL

main23271-13040i7KE..KM7#,8#199906-200208

23280REGULATOR ASSY, FUEL PRESSURE

main23280-13020i7KE..KM7#,8#199906-200208

23280DBOLT, UNION(FOR FUEL PIPE OR HOSE SET)

main90401-08004i7KE..KM7#,8#200208

23280ERING, O(FOR FUEL PRESSURE REGULATOR)

main90301-07001i7KE..KM7#,8#199906-200208

main90301-07024i7KE..KM7#,8#200208-200607

main90301-07037i7KE..KM7#,8#200607

23280FGASKET(FOR FUEL PRESSURE REGULATOR)

main90430-08014×2i7KE..KM7#,8#199906-200208

23291INSULATOR, INJECTOR VIBRATION

main23291-41010×4i7KE..KM7#,8#199906-200208

23300PFILTER, FUEL(FOR EFI)

main23030-13020i7KE..KM7#,8#199906-200208

23300TGASKET(FOR FUEL FILTER)

main90430-12026×2i7KE..KM7#,8#199906-200208

23300UBOLT, UNION(FOR FUEL FILTER)

main90401-12029i7KE..KM7#,8#199906-200208

23801GBOLT, UNION(FOR FUEL PIPE)

main90401-12097i7KE..KM7#,8#200208

23801HGASKET(FOR FUEL PIPE)

main90430-12026×2i7KE..KM7#,8#199906-200208

23801PPIPE SUB-ASSY, FUEL, NO.1

main23801-13170i7KE..KM7#,8#199906-200208

23802BPIPE SUB-ASSY, FUEL, NO.2

main23802-13011i7KE..KM7#,8#199906-200208

23807PIPE SUB-ASSY, FUEL DELIVERY

main23814-13010i7KE..KM7#,8#199906-200208

23807VSPACER, NO.1(FOR DELIVERY PIPE)

main90561-08009×2i7KE..KM7#,8#199906-200208

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-13030×2i7KE..KM7#,8#199906-200208

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23842-13020×2i7KE..KM7#,8#199906-200208

main23847-13010i7KE..KM7#,8#199906-200208

8404ELECTRONIC FUEL INJECTION SYSTEM

→ Go to FIG 84-04

2182125180SCREW, 2ND THROTTLE VALVE SET

main21821-25180

9007811057

main90078-11057

9007815315

main90078-15315

9007911049

main90079-11049

9007911057

main90079-11057

9007915315

main90079-15315

9007930006

main90079-30006

9011908165

main90119-08165

9017908040

main90179-08040

9048008005

main90480-08005

9048011005

main90480-11005

91511B0850

main91511-B0850

91511J0840

main91511-J0840

91621J0612

main91621-J0612

91651B0814

main91651-B0814

91651B0820

main91651-B0820

41 parts on this diagram · 2 diagrams in section
