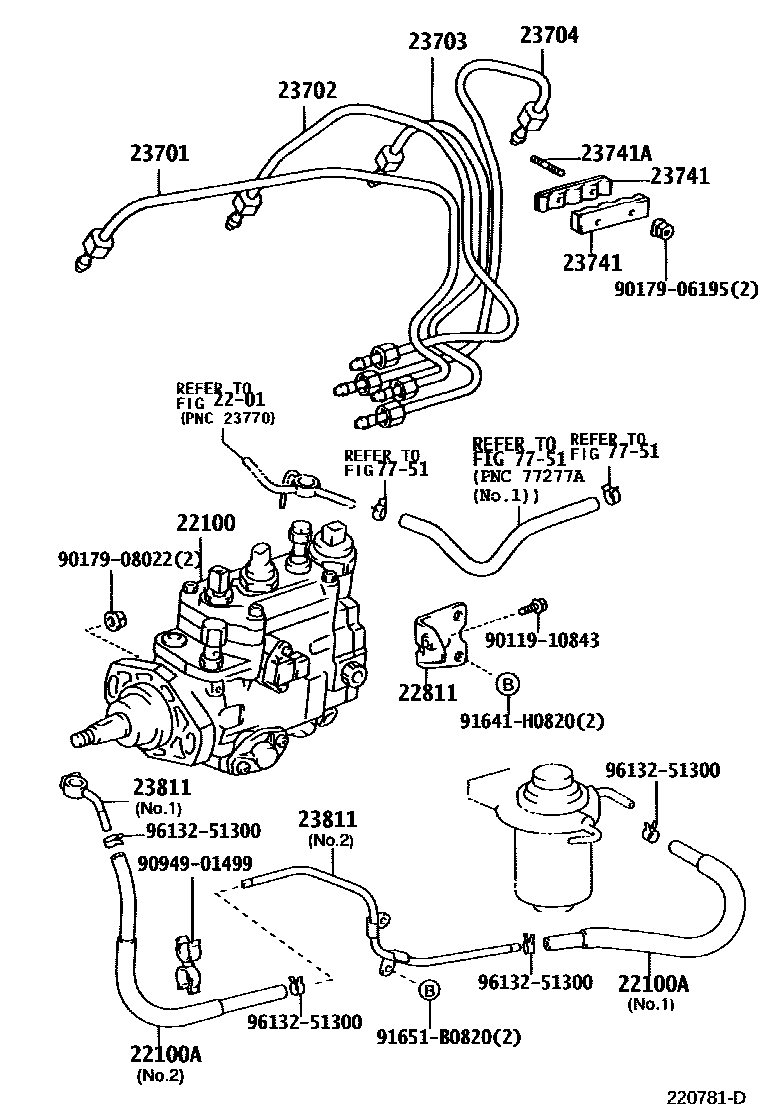

INJECTION PUMP ASSEMBLY

2201INJECTION NOZZLE

→ Go to FIG 22-01

22100PUMP ASSY, INJECTION OR SUPPLY

main22100-6E250i3CE..CM7#,8#199906-200208

22100AHOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)

main23271-64090i3CE..CM7#,8#200208-200408

main23273-64130i3CE..CM7#,8#199906-200208

main23273-64131i3CE..CM7#,8#200208-200408

main23273-64140i3CE..CM7#,85..IV3199906-200208

22811STAY, INJECTION PUMP, NO.1

main22811-64020i3CE..CM7#,8#199906-200208

23701PIPE SUB-ASSY, INJECTION, NO.1

main23701-64130i3CE..CM7#,8#199906-200208

23702PIPE SUB-ASSY, INJECTION, NO.2

main23702-64130i3CE..CM7#,8#200208-200408

23703PIPE SUB-ASSY, INJECTION, NO.3

main23703-64110i3CE..CM7#,8#199906-200208

23704PIPE SUB-ASSY, INJECTION, NO.4

main23704-64130i3CE..CM7#,8#199906-200208

23741CLAMP, INJECTION PIPE, NO.1

main23741-64020×2i3CE..CM7#,8#199906-200208

main23741-64021×2i3CE..CM7#,8#200208-200408

23741ABOLT, STUD(FOR INJECTION PIPE CLAMP)

main90116-06275×2i3CE..CM7#,8#199906-200208

23811PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP)

main23811-64140i3CE..CM7#,8#199906-200208

main23811-64150i3CE..CM7#,8#199906-200208

7751FUEL TANK & TUBE

→ Go to FIG 77-51

9011910843

main90119-10843

9017906195

main90179-06195

9017908022

main90179-08022

9094901499

main90949-01499

91641H0820

main91641-H0820

91651B0820

main91651-B0820

9613251300

main96132-51300

19 parts on this diagram · 1 diagram in section
