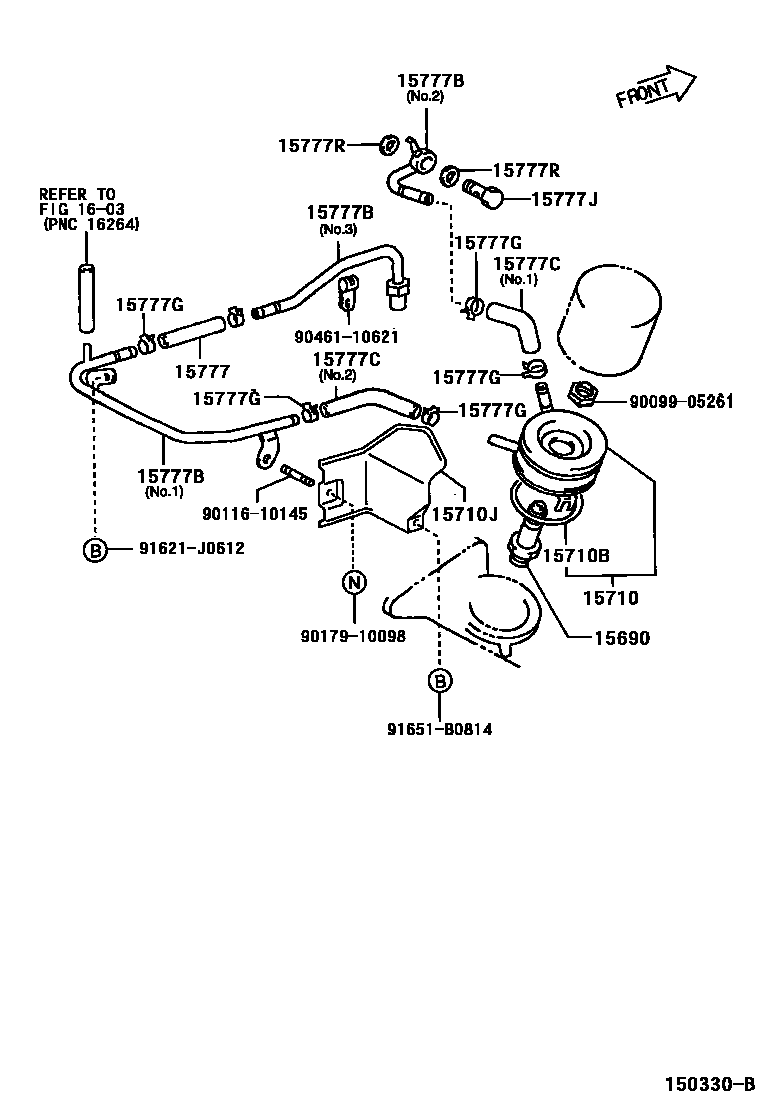

ENGINE OIL COOLER

15690VALVE ASSY, OIL COOLER RELIEF

main15695-64010i3CE..CM7#,8#200208-200408

main15695-64030i3CE..CM7#,8#199906-200208

15710COOLER ASSY, OIL

main15710-64220i3CE..CM7#,8#199906-200208

main15710-64230i3CE..CM7#,8#200208-200408

15710BRING, O(FOR OIL COOLER)

main90301-67004i3CE..CM7#,8#199906-200208

15710JINSULATOR, EXHAUST MANIFOLD HEAT, NO.2

main17168-64130i3CE..CM7#,8#199906-200208

15777HOSE, OIL COOLER

main90445-21006i3CE..CM7#,8#199906-200208

15777BPIPE, OIL COOLER

main15767-64120i3CE..CM7#,8#200208-200408

main15768-64140i3CE..CM7#,8#200208-200408

main15769-64011i3CE..CM7#,8#199906-200208

15777CHOSE, OIL COOLER

main15777-64090i3CE..CM7#,8#200208-200408

main15778-64070i3CE..CM7#,8#200208-200408

15777GCLAMP OR CRIP, HOSE

main90467-20005×6i3CE..CM7#,8#199906-200208

main96134-41900×6i3CE..CM7#,8#200208-200408

15777JBOLT, UNION(FOR OIL COOLER PIPE)

main90401-20004i3CE..CM7#,8#199906-200208

15777RGASKET(FOR OIL COOLER PIPE UNION BOLT)

main90430-20014×2i3CE..CM7#,8#199906-200208

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

9009905261

main90099-05261

9011610145

main90116-10145

9017910098

main90179-10098

9046110621

main90461-10621

91621J0612

main91621-J0612

91651B0814

main91651-B0814

17 parts on this diagram · 1 diagram in section
