ENGINE OIL PUMP

0001 1 0002 1

1106TIMING GEAR COVER & REAR END PLATE

→ Go to FIG 11-06

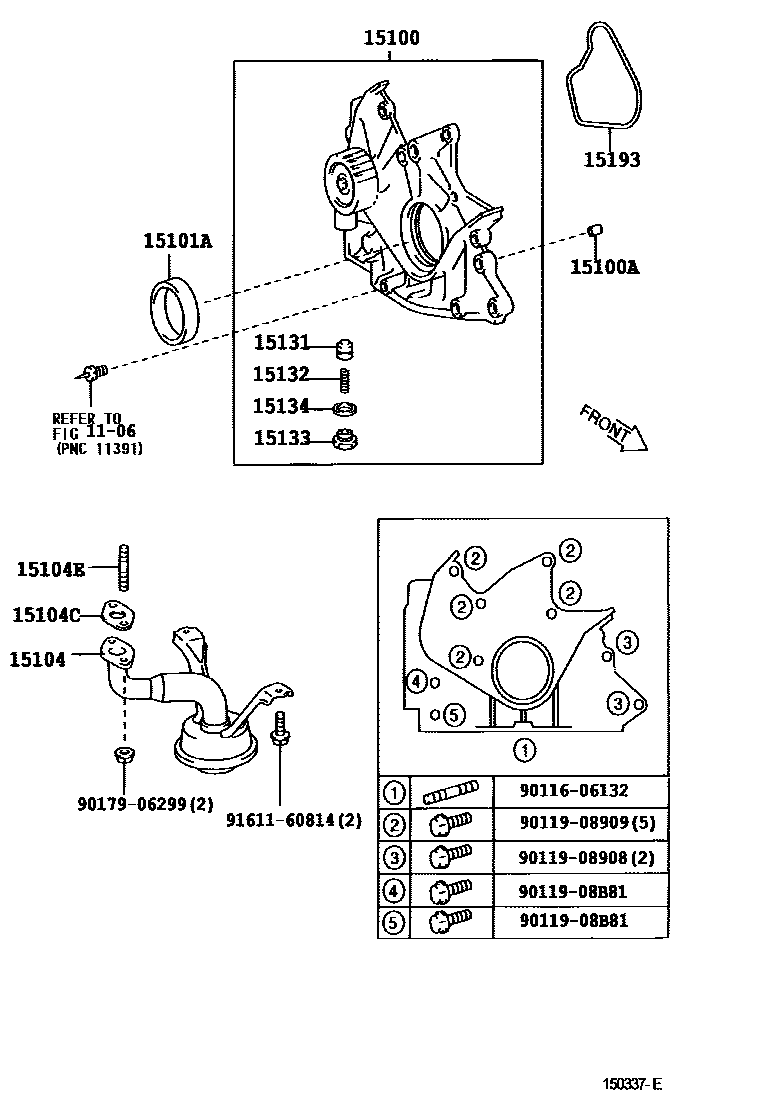

15100PUMP ASSY, OIL

main15100-64042i3CE..CM7#,8#199906-200208

main15110-13010i7KE..KM7#,8#199906-200208

15100APIN, RING(FOR OIL PUMP SET)

main90253-11021×2i3CE..CM7#,8#199906-200208

15101ASEAL(FOR CRANKSHAFT)

main90311-42031i3CE..CM7#,8#..CBU,IV3199906-200408

15104STRAINER SUB-ASSY, OIL

main15104-13010i7KE..KM7#,8#199906-200006

main15104-13020i7KE..KM7#,8#200006-200208

main15104-64110i3CE..CM7#,8#199906-200208

15104CGASKET(FOR OIL STRAINER)

main15149-64070i3CE..CM7#,8#199906-200208

15104EBOLT, STUD(FOR OIL STRAINER)

main90116-06132×2i3CE..CM7#,8#199906-200208

15131VALVE, OIL PUMP RELIEF

main15131-24010i7KE..KM7#,8#199906-200208

main15131-64041i3CE..CM7#,8#200208-200408

15132SPRING, OIL PUMP RELIEF VALVE

main15132-17010i3CE..CM7#,8#199906-200208

main15132-40010i7KE..KM7#,8#199906-200208

15133PLUG, OIL PUMP RELIEF VALVE

main15133-64041i3CE..CM7#,8#199906-200208

15134GASKET, OIL PUMP RELIEF VALVE

main15134-67020i3CE..CM7#,8#200208-200408

15193GASKET, OIL PUMP

main15193-64022i3CE..CM7#,8#199906-200208

9011606132

main90116-06132

9011908908

main90119-08908

9011908909

main90119-08909

9011908B81

main90119-08B81

9017906299

main90179-06299

9161160814

main91611-60814

18 parts on this diagram · 2 diagrams in section
