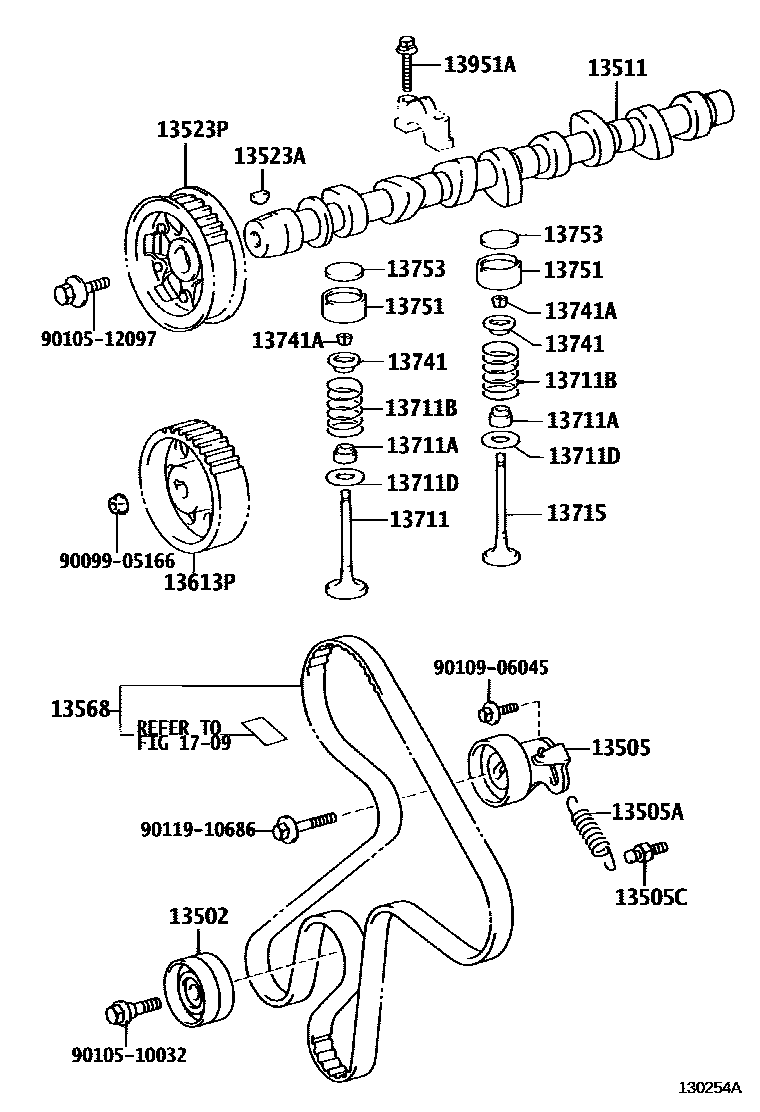

CAMSHAFT & VALVE

0001 1 0002 1

13502IDLER SUB-ASSY, TIMING BELT, NO.2

main13503-64021i3CE..CM7#,8#199906-200408

13505IDLER SUB-ASSY, TIMING BELT, NO.1

main13505-64012i3CE..CM7#,8#199906-200408

13505ASPRING, TENSION(FOR IDLER)

main90507-18006i3CE..CM7#,8#199906-200408

13505CPIN(FOR IDLER SPRING TENSION)

main13575-64010i3CE..CM7#,8#199906-200408

13511CAMSHAFT

main13501-13042i7KE..KM7#,8#199906-200001

sub13501-13043

main13501-13043i7KE..KM7#,8#200001-200208

main13511-64120i3CE..CM7#,8#199906-200408

13523GEAR OR SPROCKET, CAMSHAFT TIMING

main13523-13030i7KE..KM7#,8#199906-200208

13523AKEY, WOODRUFF(FOR TIMING GEAR)

main90280-05004i3CE..CM7#,8#199906-200408

13523PPULLEY, CAMSHAFT TIMING

main13051-64012i3CE..CM7#,8#199906-200408

13568BELT, TIMING

main13568-69066i3CE..CM7#,8#199908-200408

main13568-69067i3CE..CM7#,8#199906-199908

sub13568-69066

13613PPULLEY, INJECTION PUMP DRIVE

main13613-64011i3CE..CM7#,8#199906-200408

13711VALVE, INTAKE

main13711-24011i7KE..KM7#,8#199906-200208

main13711-64020i3CE..CM7#,8#199906-200408

13711ASEAL OR RING, O(FOR VALVE STEM OIL)

main90913-02094i7KE..KM7#,8#199906-200208

main90913-02116i3CE..CM7#,8#199906-200408

13711BSPRING, COMPRESSION(FOR INNER)

main90501-42010i7KE..KM7#,8#199906-200208

main90501-43002i3CE..CM7#,8#200208-200408

main90501-43003i3CE..CM7#,8#199906-200208

sub90501-43002

13711DWASHER, PLATE(FOR VALVE SPRING SEAT)

main90201-16002i7KE..KM7#,8#199906-200208

main90201-22010i3CE..CM7#,8#199906-200408

13715VALVE, EXHAUST

main13715-24013i7KE..KM7#,8#199906-200208

main13715-64030i3CE..CM7#,8#199906-200408

13741RETAINER, VALVE SPRING

main13741-24020i7KE..KM7#,8#199906-200208

main13741-43010i3CE..CM7#,8#199906-200408

13741ALOCK, VALVE SPRING RETAINER

main90913-03005i7KE..KM7#,8#199906-200208

main90913-03014i3CE..CM7#,8#199906-200408

13751LIFTER, VALVE

main13750-0W020i7KE..KM7#,8#199906-200208

main13751-64011i3CE..CM7#,8#199906-200408

13753SHIM, VALVE ADJUSTING

main13753-64010i3CE..CM7#,8#199906-200408

main13753-64030i3CE..CM7#,8#199906-200408

main13753-64050i3CE..CM7#,8#199906-200408

main13753-64070i3CE..CM7#,8#199906-200408

main13753-64090i3CE..CM7#,8#199906-200408

main13753-64110i3CE..CM7#,8#199906-200408

main13753-64130i3CE..CM7#,8#199906-200408

main13753-64150i3CE..CM7#,8#199906-200408

main13753-64170i3CE..CM7#,8#199906-200408

main13753-64190i3CE..CM7#,8#199906-200408

main13753-64210i3CE..CM7#,8#199906-200408

main13753-64230i3CE..CM7#,8#199906-200408

main13753-64250i3CE..CM7#,8#199906-200408

main13753-64270i3CE..CM7#,8#199906-200408

main13753-64290i3CE..CM7#,8#199906-200408

main13753-64310i3CE..CM7#,8#199906-200408

main13753-64330i3CE..CM7#,8#199906-200408

main13753-64350i3CE..CM7#,8#199906-200408

main13753-64370i3CE..CM7#,8#199906-200408

main13753-64390i3CE..CM7#,8#199906-200408

main13753-64410i3CE..CM7#,8#199906-200408

main13753-64430i3CE..CM7#,8#199906-200408

main13753-64450i3CE..CM7#,8#199906-200408

main13753-64470i3CE..CM7#,8#199906-200408

main13753-64490i3CE..CM7#,8#199906-200408

13951SUPPORT, VALVE ROCKER, NO.1

main13952-24012i7KE..KM7#,8#199906-200208

13951ABOLT(FOR ROCKER SUPPORT SET)

main90105-08028i7KE..KM7#,8#199906-200208

main91621-60840i3CE..CM7#,8#199906-200408

1709

9009905166

main90099-05166

9010510032

main90105-10032

9010512097

main90105-12097

9010906045

main90109-06045

9011910686

main90119-10686

27 parts on this diagram · 2 diagrams in section
