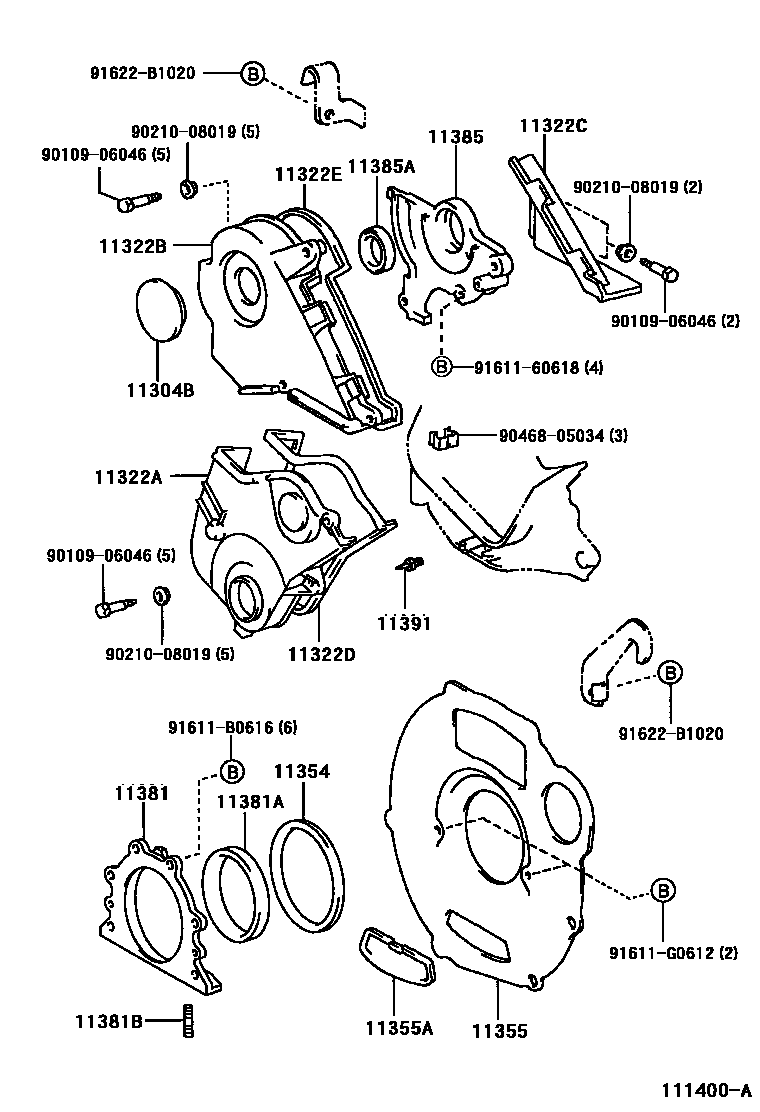

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1

11304BPLUG, SEMI CIRCULAR(FOR CHAIN COVER NO.2)

main90950-01357i3CE..CM7#,8#199906-200208

11322ACOVER, TIMING BELT, NO.1

main11321-64011i3CE..CM7#,85..IV3199906-200208

main11321-64080i3CE..CM7#,8#199906-200208

11322BCOVER, TIMING BELT, NO.2

main11322-64010i3CE..CM7#,8#199906-200208

11322CCOVER, TIMING BELT, NO.3

main11323-64011i3CE..CM7#,8#199906-200208

11322DGASKET, TIMING BELT COVER, NO.1

main11328-64020i3CE..CM7#,85..IV3200208-200408

main11328-64070i3CE..CM7#,8#200208-200408

11322EGASKET, TIMING BELT COVER, NO.2

main11329-64020i3CE..CM7#,8#199906-200208

11354SEAL, FLYWHEEL HOUSING DUST

main11354-64020i3CE..CM7#,8#199906-200208

11355PLATE, REAR END

main11355-06010i7KE..KM7#,8#..5H199906-200208

main11355-06020i7KE..KM7#..4HC199906-200208

main11355-64011i3CE..CM7#,8#..5H199906-200208

main11355-64090i3CE..CM7#,85..4HC199906-200208

11355APLUG, HOLE(FOR REAR END PLATE)

main90950-01343i7KE..KM7#..4HC199906-200208

main90950-01548i3CE..CM7#,85..4HC199906-200208

11381RETAINER, ENGINE REAR OIL SEAL

main11381-13011i7KE..KM7#,8#199906-200208

main11381-64020i3CE..CM7#,8#200208-200408

11381ASEAL, ENGINE REAR OIL

main90311-70007i7KE..KM7#,8#199906-200107

main90311-70012i7KE..KM7#,8#200107-200208

main90311-90008i3CE..CM7#,8#200208-200408

11381BBOLT, STUD(FOR ENGINE REAR OIL SEAL RETAINER)

main90109-06291×2i7KE..KM7#,8#199906-200208

main90116-06134×2i3CE..CM7#,8#199906-200208

11385RETAINER, CAMSHAFT OIL SEAL

main11382-64011i3CE..CM7#,8#199906-200208

11385ASEAL, OIL(FOR CAMSHAFT)

main90311-38081i3CE..CM7#,8#199906-200208

11391POINTER, TIMING

main11391-64020i3CE..CM7#,8#199906-200208

9010906046

main90109-06046

9021008019

main90210-08019

9046805034

main90468-05034

9161160618

main91611-60618

91611B0616

main91611-B0616

91611G0612

main91611-G0612

91622B1020

main91622-B1020

22 parts on this diagram · 2 diagrams in section
