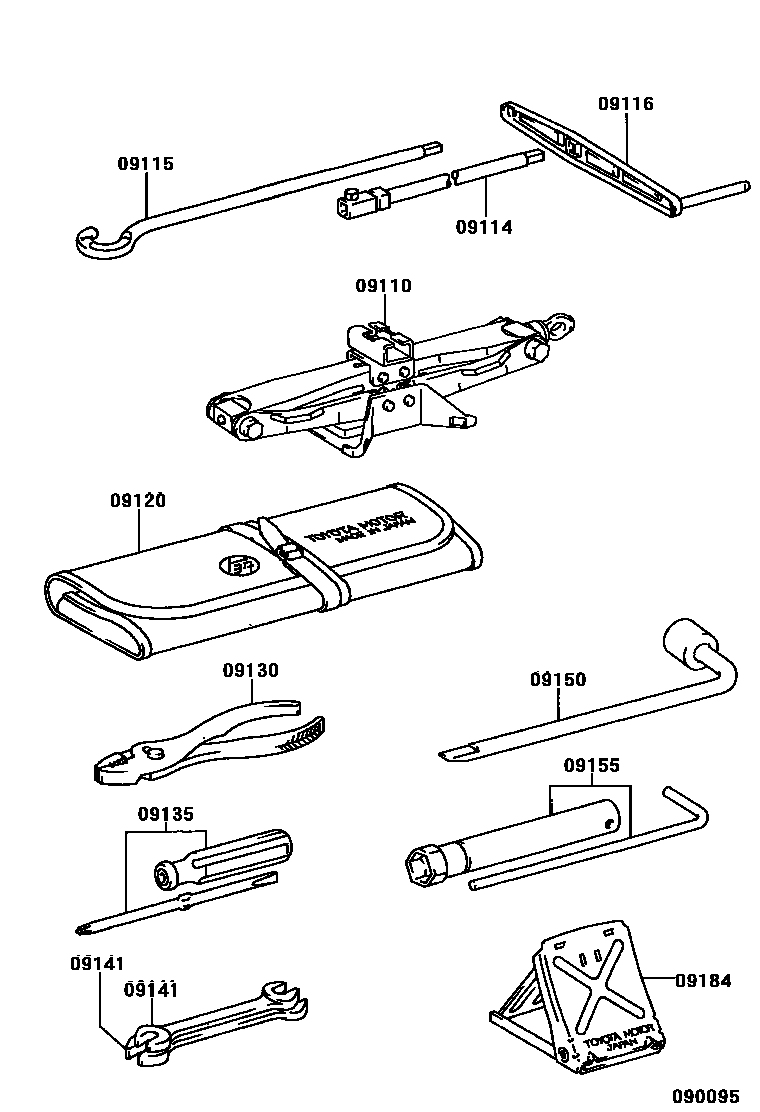

STANDARD TOOL

09110JACK ASSY

main09110-27061iCM7#,8#,KM7#,8#199906-200208

09114EXTENSION SUB-ASSY, JACK HANDLE

main09114-28010iCM7#,KM7#; CM8#,KM8#199906-200208

09115ROD SUB-ASSY, JACK HANDLE

main09115-60030iCM7#,8#,KM7#,8#199906-200208

09116LEVER, JACK HANDLE

main09116-35041iCM7#,8#,KM7#,8#199906-200208

09120BAG, TOOL

main09120-12011iCM7#,8#,KM7#,8#199906-200208

09130PLIERS

main99913-11500iCM7#,8#200208-200408

09135DRIVER, SCREW

main99915-10700iCM7#,8#200208-200408

09141SPANNER

main99914-10810iCM7#,8#,KM7#,8#199906-200208

main99914-11214iCM7#,8#200208-200408

09150WRENCH, HUB NUT BOX

main09150-40010iCM7#,8#,KM7#,8#199906-200208

09155WRENCH, SPARK PLUG

main09155-44010iKM7#,8#199906-200208

09184STOPPER, WHEEL

main09184-00010iCM7#,8#,KM7#,8#199906-200208

11 parts on this diagram · 1 diagram in section
