SWITCH & RELAY & COMPUTER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1 0013 1 0014 1������������� 0015 1 0016 1�������������

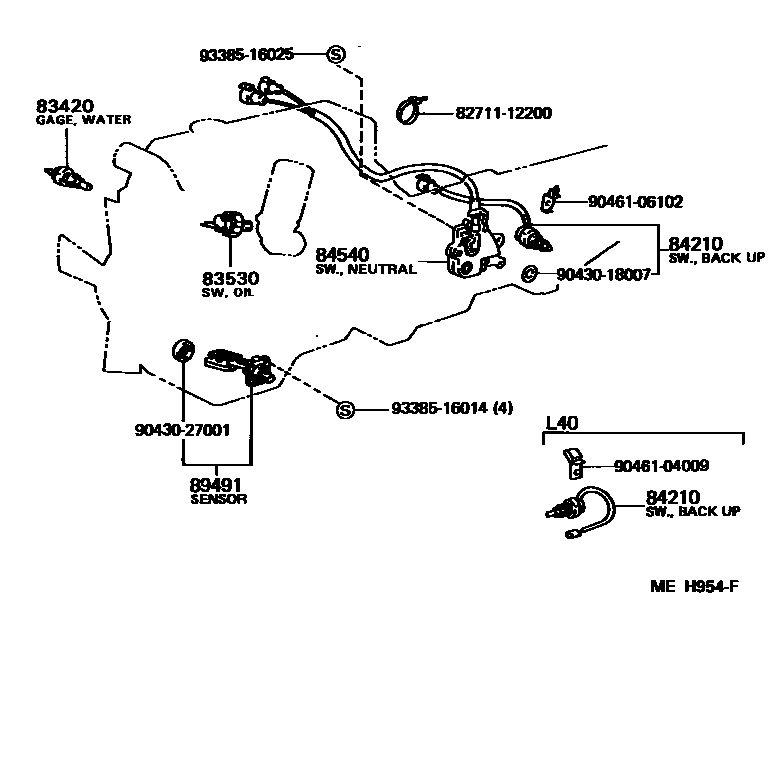

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16040iKM51,YM55,6#199506

main83420-16040iYM55,6#;KM51..SJL..5F;KM51..3FC,3HC,5H199309

main83420-20020iCM5#,6#198610-199611

main83420-20030iYM55,6#;KM51..SJL..5F;KM51..3FC,3HC,5H199309-199506

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-14030iYM55,6#198610-199309

main83530-14070iYM55,6#199309-199601

main83530-28020iKM51,YM55,6#199803

main83530-30060iCM5#,6#198610-199309

main83530-30080iKM5#198610-199309

main83530-30090iKM51199309-199803

main83530-30100iCM65..TS;CM5#,60,61199309-199803

main83530-60010iCM5#,6#199803

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040iYM60;CM5#,6#,KM51,YM55,65..5F,5H198808-199310

main84210-26030iKM5#,YM55..4H198610-199008

main84210-60021iYM60;CM50,55,6#,KM51..5F,5H198610-198808

84540SWITCH ASSY, NEUTRAL START

main84540-27010iKM51..ATM198610-199906

main84540-30290iYM55..4HC199410-199906

main84540-30300iYM55..4HC199410-199906

main84540-35010iCM51,55..4HC198610-199906

89491SENSOR, ENGINE OIL LEVEL

main89491-27010iKM5#198910

main89491-27020iYM55,6#198910

main89491-27030iCM5#,6#198910-199201

main89491-27031iCM5#,6#199201-199611

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

9043018007

main90430-18007

9043027001

main90430-27001

9046104009

main90461-04009

9046106102

main90461-06102

9338516014

main93385-16014

9338516025

main93385-16025

12 parts on this diagram · 16 diagrams in section
