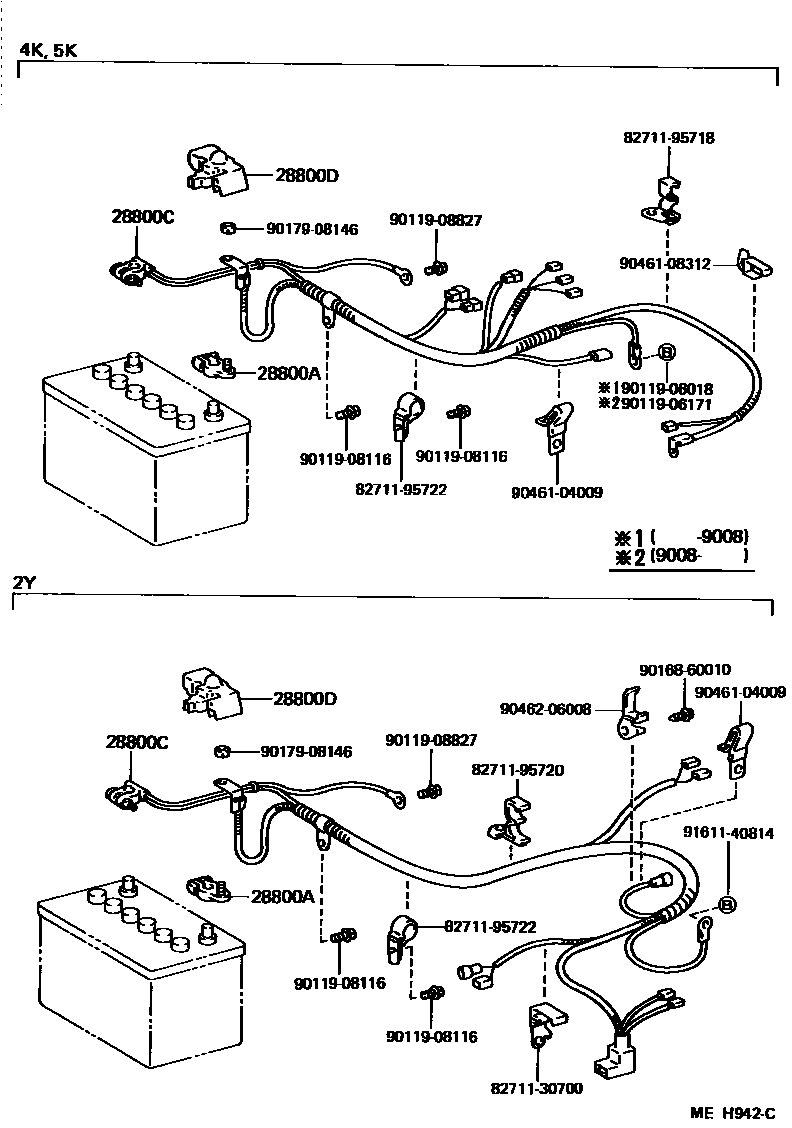

BATTERY & BATTERY CABLE

0001 1 0002 1

28800ATERMINAL, BATTERY POSITIVE

main90982-05010i4K,5K..KM5#198711-199008

main90982-05028i2Y..YM55,60198711-199008

main90982-05030i2C..CM65..TS;2C..CM5#,60,61199310-199508

main90982-05034i5K,2Y..KM51,YM55,6#199508

main90982-05035i2C..CM65..TS;2C..CM5#,60,61199508-199611

28800CCABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)

main82122-27010i5K..KM51..MTM199008-199310

main82122-27011i5K..KM51..MTM199310-199508

main82122-27012i5K..KM51..MTM199508

main82122-27020i5K..KM51..MTM199008-199310

main82122-27021i5K..KM51..MTM199310-199508

main82122-27022i5K..KM51..MTM199508

main82122-27030i5K..KM51..ATM199008-199310

main82122-27031i5K..KM51..ATM199310-199508

main82122-27032i5K..KM51..ATM199508

main82122-27040i5K..KM51..ATM199008-199310

main82122-27041i5K..KM51..ATM199310-199508

main82122-27042i5K..KM51..ATM199508

main82122-27050i2Y..YM55,6#199008-199310

main82122-27051i2Y..YM55,6#..MTM199310-199508

main82122-27052i2Y..YM55,6#..MTM199508-199712

main82122-27053i2Y..YM55,6#..MTM199712

main82122-27060i2C..CM5#,6#..5H199110-199310

main82122-27061i2C..CM65..TS;2C..CM5#,60,61..5H199310-199508

main82122-27062i2C..CM5#,6#..5H199611

main82122-27070i2C..CM51,55..4HC199110-199310

main82122-27080i2C..CM5#,6#..5H199110-199310

main82122-27081i2C..CM65..TS;2C..CM5#,60,61..5H199310-199508

main82122-27082i2C..CM5#,6#..5H199611

main82122-27090i2C..CM51,55..4HC199110-199310

main82122-27091i2C..CM51,55..4HC199310-199508

main82122-27092i2C..CM51,55..4HC199508

main82122-27100i2Y..YM55..4HC199410-199508

main82122-27101i2Y..YM55..4HC199508-199712

main82122-27102i2Y..YM55..4HC199712

main82122-27110i2Y..YM55..4HC..IV199410-199508

main82122-27120i2Y..YM55..5H..IV199312-199508

main82122-27130i2C..CM51,55..4HC199508

main82122-27140i2Y..YM55..5H..IV199511-199712

main82122-27141i2Y..YM55..5H..IV199712

main82122-27150i2Y..YM55..4HC..IV199511-199712

main82122-27151i2Y..YM55..4HC..IV199712

main82122-95722i1C,2C..CM50,55,6#..5H198610-198708

main82122-95723i2C..CM51,55..4HC198610-198708

main82122-95724i2C..CM51,55..4HC198610-198708

main82122-95725i2Y..YM55198610-198910

main82122-95726i2Y..YM60198610-198808

main82122-95727i4K..KM50198610-198910

main82122-95728i5K..KM51..4H198610-198808

main82122-95729i5K..KM51..5F198610-198808

main82122-95730i5K..KM51..3HC198808-198910

main82122-95758i1C,2C..CM50,55,6#..5H198708-198808

main82122-95759i2C..CM51,55..4HC198708-198808

main82122-95760i2C..CM51,55..4HC198708-198808

main82122-95778i1C,2C..CM50,55,6#..5H198808-198910

main82122-95779i5K..KM51..5F198808-198910

main82122-95781i2Y..YM60198808-198910

main82122-95782i5K..KM51..4H198808-198910

main82122-95783i5K..KM51..3HC198808-198910

main82122-95784i5K..KM51..5F198808-198910

main82122-95G00i2C..CM51,55..4HC198808-198910

main82122-95G01i2C..CM51,55..4HC198808-198910

main82122-95G02i2C..CM5#,6#..5H198910-199110

main82122-95G03i2C..CM5#..4HC198910-199110

main82122-95G04i2C..CM5#,6#..5H198910-199110

main82122-95G05i2C..CM5#..4HC198910-199110

main82122-95G06i4K..KM50198910-199008

main82122-95G07i5K..KM51..4H198910-199008

main82122-95G08i5K..KM51..ATM198910-199008

main82122-95G09i5K..KM51..5F198910-199008

main82122-95G10i5K..KM51..4H198910-199008

main82122-95G11i5K..KM51..5F198910-199008

main82122-95G12i5K..KM51..ATM198910-199008

main82122-95G13i2Y..YM55198910-199008

main82122-95G14i2Y..YM60198910-199008

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-95702i1C,2C,4K,5K,2Y..CM5#,6#,KM5#,YM55,6#198610-199310

8271130700WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-30700

8271195718WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-95718

8271195720WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-95720

8271195722WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-95722

9011906018

main90119-06018

9011906171

main90119-06171

9011908116

main90119-08116

9011908827

main90119-08827

9016860010

main90168-60010

9017908146

main90179-08146

9046104009

main90461-04009

9046108312

main90461-08312

9046206008

main90462-06008

9161140814

main91611-40814

17 parts on this diagram · 2 diagrams in section
