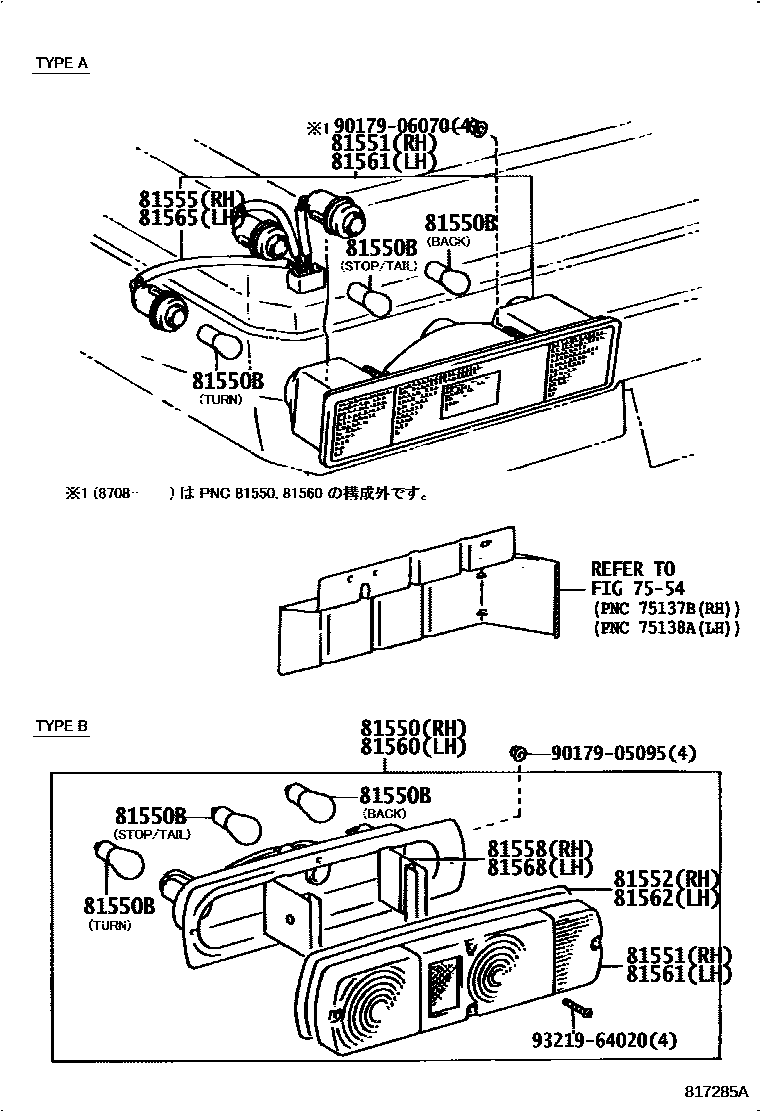

REAR COMBINATION LAMP

7554TOOL BOX & LICENSE PLATE BRACKET

→ Go to FIG 75-54

81550LAMP ASSY, REAR COMBINATION, RH

main81550-29925iCM55,65,YM55..MTM..CBU;CM50,51,60,KM5#,YM60..3SO..(4H,4HC,5H)198610-198708

main81550-95010iCM55,65,YM55..MTM..CBU;CM50,51,60,KM5#,YM60..3SO..(4H,4HC,5H)198708-198808

main81550-95717iCM65..TS..CBU;CM51..4HC..CBU;CM55,YM55..SJL..CBU;CM51,52,60,KM51,YM60..TS..3SO..5H199408-199508

81550BBULB(FOR REAR COMBINATION LAMP)

main99132-11210×4iCM5#,6#,KM5#,YM55,6#198808-199310

main99132-11230×4iCM5#,6#,KM5#,YM55,60198610-198808

main99132-21210×2iCM5#,6#,KM51,YM55,6#199611

81551LENS, REAR COMBINATION LAMP, RH

main81551-25060iKM50..3SO;CM65..TS..CBU;CM55,YM55..MTM..CBU;CM50,51,60,KM51,YM60..TS..3SO..(4H,4HC,5H)198610-198910

main81551-27060iKM51..1SO;KM51..GUT;CM60,YM60..T1199811

main81551-95711iCM5#,6#,KM5#,YM55,6#198610-199310

81552GASKET, REAR COMBINATION LAMP LENS, RH

main81552-25060iKM50..3SO;CM65..TS..CBU;CM55,YM55..MTM..CBU;CM50,51,60,KM51,YM60..TS..3SO..(4H,4HC,5H)198610-198910

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-95711iCM5#,6#,KM5#,YM55,6#198610-199310

81558SHADE, REAR COMBINATION LAMP, NO.1 RH

main81557-25060×2iKM50..3SO;CM65..TS..CBU;CM55,YM55..MTM..CBU;CM50,51,60,KM51,YM60..TS..3SO..(4H,4HC,5H)198610-198910

81560LAMP ASSY, REAR COMBINATION, LH

main81560-80019iCM55,65,YM55..MTM..CBU;CM50,51,60,KM5#,YM60..3SO..(4H,4HC,5H)198610-198708

main81560-95010iCM55,65,YM55..MTM..CBU;CM50,51,60,KM5#,YM60..3SO..(4H,4HC,5H)198708-198808

main81560-95717iKM50..3SO;CM65..TS..CBU;CM55,YM55..MTM..CBU;CM50,51,60,KM51,YM60..TS..3SO..(4H,4HC,5H)198808-198910

81561LENS, REAR COMBINATION LAMP, LH

main81561-25040iCM65..TS..CBU;CM51..4HC..CBU;CM55,YM55..SJL..CBU;CM51,52,60,KM51,YM60..TS..3SO..5H199408-199508

main81561-27060iKM51..1SO;KM51..GUT;CM60,YM60..T1199811

main81561-95711iCM5#,6#,KM51,YM55,6#199611-199811

81562GASKET, REAR COMBINATION LAMP LENS, LH

main81562-25040iKM50..3SO;CM65..TS..CBU;CM55,YM55..MTM..CBU;CM50,51,60,KM51,YM60..TS..3SO..(4H,4HC,5H)198711-198910

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-95711iCM5#,6#,KM5#,YM55,6#198610-199310

81568SHADE, REAR COMBINATION LAMP, NO.1 LH

main81557-25060×2iKM50..3SO;CM65..TS..CBU;CM55,YM55..MTM..CBU;CM50,51,60,KM51,YM60..TS..3SO..(4H,4HC,5H)198610-198910

9017905095

main90179-05095

9017906070

main90179-06070

9321964020

main93219-64020

15 parts on this diagram · 1 diagram in section
