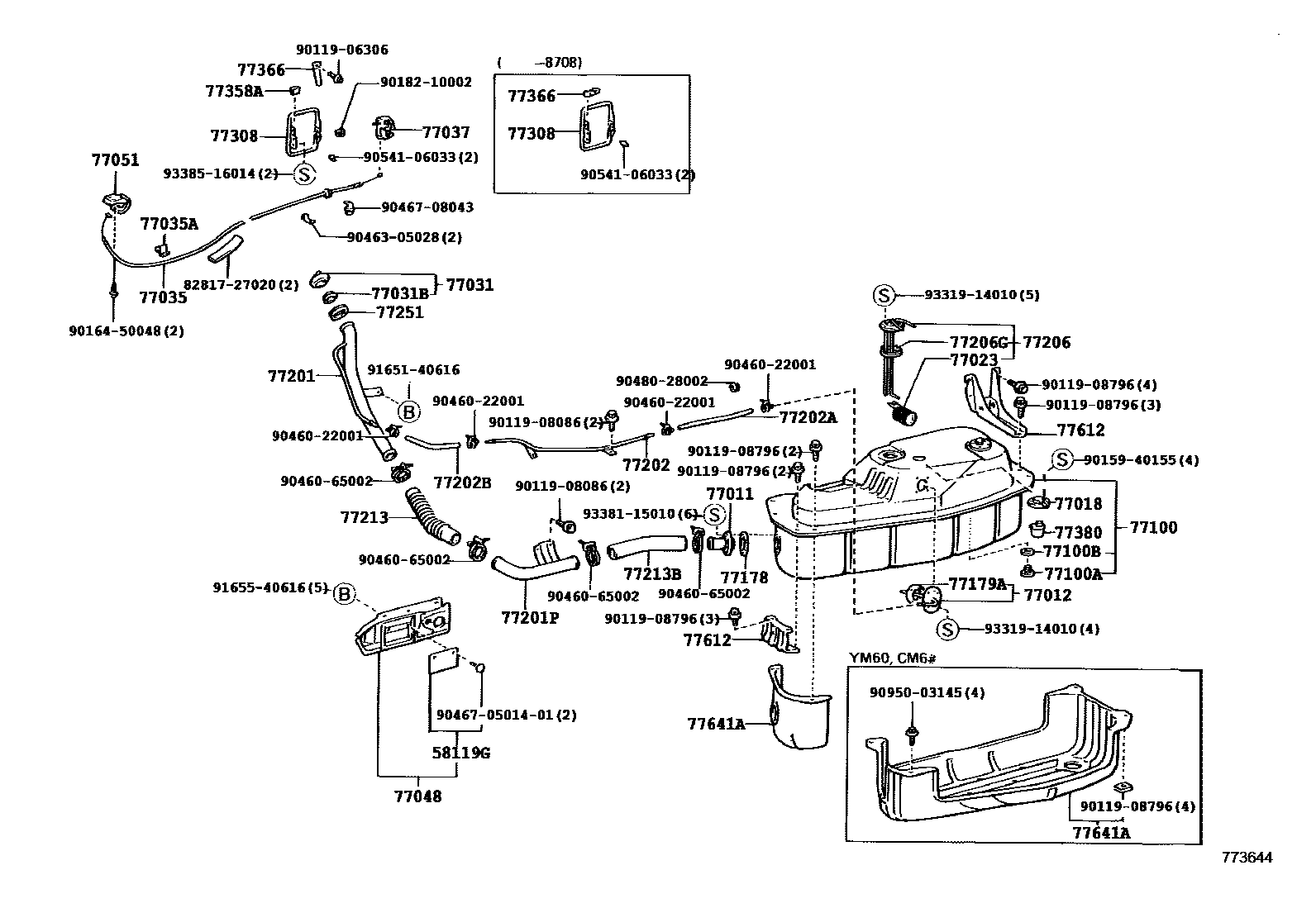

FUEL TANK & TUBE

0001 1 0002 1 0003 1 0004 1

58119GCOVER, REAR FLOOR SIDE, FRONT

main58119-95700iCM65..TS;CM5#,60,61,KM51,YM55,6#198610-199611

77011PIPE SUB-ASSY, FUEL TANK FILLER, LOWER

main77011-13010iCM50,51,55,60,65,KM5#,YM55,6#198610-199310

main77011-27020iCM65..TS;CM51,55,60,KM51,YM55,6#199310-199611

77012TUBE SUB-ASSY, FUEL TANK BREATHER

main77012-27090iCM65..TS;CM51,55,60,KM51,YM55,6#198610-199611

77018VALVE SUB-ASSY, FUEL VAPOUR SEPARATE

main77018-27080iCM52,61199110-199508

sub77018-27081

main77018-27081iCM52,61199508

main77018-27090iCM65..TS;CM51,55,60,KM51,YM55,6#199508-199611

main77018-27100iCM65..TS;CM51,55,60,KM51,YM55,6#199510-199611

77023FILTER SUB-ASSY, FUEL SUCTION TUBE

main77023-14030iKM5#,YM55,6#198610

main77023-22040iCM52,61199110

main77023-32010iCM50,51,55,60,65198610-199611

77031CAP ASSY, FUEL TANK

main77310-12100iKM5#,YM55,6#198610

main77310-35061iCM51,55,60,65198610-199611

77031BGASKET (FOR FUEL TANK CAP)

main77316-12050iCM50,51,55,60,65,KM5#,YM55,6#198610-199611

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-27020iCM51,55,60,65,KM51,YM55,6#199701

main77035-95701iCM50,51,55,60,65,KM5#,YM55,6#198610-199701

sub77035-27020

77035ACLAMP (FOR FUEL LID LOCK CONTROL CABLE)

main69749-12010iCM5#,6#,KM5#,YM55,60198610-199008

main90469-04001iCM51,55,60,65,KM51,YM55,6#199008-199611

77037LOCK SUB-ASSY, FUEL FILLER OPENING LID

main77037-95700iCM5#,6#,KM5#,YM55,6#198610-199611

77048SEAL SUB-ASSY, FUEL INLET PIPE, UPPER

main77048-27010iCM52,61199110

sub77048-95701

main77048-95701iCM51,55,60,65,KM51,YM55,6#198610-199611

77051LEVER SUB-ASSY, FUEL LID OPEN

main77051-95700iCM5#,6#,KM5#,YM55,60198610-199611

main77051-95700-01iCM51,55,60,65,KM51,YM55,6#199008-199906

BLACK,TRIM1#

sub77051-95700

77100TANK ASSY, FUEL

main77001-27230iKM5#,YM55198610-199310

sub77001-27411

sub77011-27020

sub77018-27100

sub77380-26010

sub90159-40155

sub93381-15010

main77001-27240iCM50,51,55198610-199310

sub77001-27421

sub77011-27020

sub77018-27100

sub77380-26010

sub90159-40155

sub93381-15010

main77001-27250iYM6#198610-199310

sub77001-27411

sub77011-27020

sub77018-27100

sub77380-26010

sub90159-40155

sub93381-15010

main77001-27260iCM60,65198610-199310

sub77001-27421

sub77011-27020

sub77018-27100

sub77380-26010

sub90159-40155

sub93381-15010

main77001-27400iCM52,61199110

main77001-27410iKM51,YM55199310-199510

sub77001-27411

sub77018-27100

sub77380-26010

sub90159-40155

main77001-27411iKM51,YM55,6#199510

main77001-27420iCM51,55199310-199510

sub77001-27421

sub77018-27100

sub77380-26010

sub90159-40155

main77001-27421iCM65..TS;CM51,55,60199510-199611

main77001-27430iYM6#199310-199408

sub77001-27411

sub77018-27100

sub77380-26010

sub90159-40155

main77001-27440iCM60;CM65..TS199310-199408

sub77001-27421

sub77018-27100

sub77380-26010

sub90159-40155

77100APLUG(FOR FUEL TANK)

main90341-20004iCM5#,6#,KM51,YM55,6#198610-199611

77100BGASKET(FOR FUEL TANK)

main90430-20007iCM5#,6#,KM5#,YM55,6#198610-199611

77178GASKET, FUEL TANK FILLER PIPE, LOWER

main77178-13020iCM50,51,55,60,65,KM5#,YM55,6#198610-199310

main77178-20010iCM65..TS;CM51,55,60,KM51,YM55,6#199310-199611

77179AGASKET, FUEL TANK BREATHER TUBE

main77179-14030iCM50,51,55,60,65,KM5#,YM55,6#198610-199611

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-27170iCM50,51,55,60,65,KM5#,YM55,6#198610-199611

sub77201-27171

77201PPIPE SUB-ASSY, FUEL TANK INLET, NO.2

main77201-27180iCM50,51,55,60,65,KM5#,YM55,6#198610-199611

77202TUBE SUB-ASSY, BREATHER

main77203-27180iCM5#,6#,KM5#,YM55,60198610-198910

main77203-27181iCM51,55,60,65,KM5#,YM55,6#198910-199611

77202AHOSE, FUEL, NO.1 (FOR BREATHER TUBE)

main77259-27220iCM50,51,55,60,65,KM5#,YM55,6#198610-199611

77202BHOSE, FUEL, NO.2 (FOR BREATHER TUBE)

main90445-22002iCM65..TS;CM51,55,60,KM51,YM55,6#198910-199611

main90445-22011iCM5#,6#,KM5#,YM55,60198612-198910

sub90445-22024

main90445-22021iCM5#,6#,KM5#,YM55,60198610-198612

sub90445-22011

77206TUBE SUB-ASSY, FUEL TANK SUCTION

main77017-27080iCM52,61199110

main77017-27150iKM5#,YM55,6#198610

main77017-27160iCM51,55,60,65198610-199611

77206GGASKET (FOR FUEL TANK SUCTION TUBE)

main77169-14020iCM5#,6#,KM51,YM55,6#198610-199611

77213HOSE, FUEL TANK SUB INLET

main77213-12131iCM50,51,55,60,65,KM5#,YM55,6#198610-199611

sub77213-27160

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-27050iCM50,51,55,60,65,KM5#,YM55,6#198610-199611

sub77213-27150

77251SHIELD, FUEL TANK, INLET, NO.1

main77251-10010iCM51,55,60,65,KM51,YM55,6#198610-199611

77308COVER SUB-ASSY, FUEL INLET BOX

main77305-95700iCM5#,6#,KM5#,YM55,60198610-198708

main77305-95701iCM5#,6#,KM5#,YM55,6#198708-199611

77358ASTOPPER, FUEL FILLER OPENING LID

main77358-87001iCM65..TS;CM51,55,60,KM51,YM55,6#198708-199611

77366SPRING, FUEL FILLER OPENING LID HINGE

main77360-95700iCM5#,6#,KM5#,YM55,60198610-198701

sub77360-95701

main77360-95701iCM5#,6#,KM5#,YM55,60198701-198708

sub77360-95702

main77366-95702iCM5#,6#,KM51,YM55,6#198708-199611

77380VALVE ASSY, FUEL CUT OFF

main77380-26010iCM65..TS;CM51,55,60,KM51,YM55,6#199508-199611

77612BRACKET SUB-ASSY, FUEL TANK

main77501-25061iCM52,61199110-199412

sub77501-25062

main77501-25062iCM52,61199412

main77511-27050iCM50,51,55,60,65,KM5#,YM55,6#198711-199611

FRONT

main77511-27050iCM5#,6#,KM5#,YM55,60198610-198711

FR

main77512-27020iCM65..TS;CM51,55,60,KM51,YM55,6#198711-199611

REAR

main77512-27020iCM5#,6#,KM5#,YM55,60198610-198711

RR

77641APROTECTOR, FUEL TANK, NO.1

main77641-27030iCM50,51,55,KM5#,YM55198610-199611

main77641-27040iCM60,65,YM6#198610-199408

8281727020PROTECTOR, WIRING HARNESS, NO.1

main82817-27020

9011906306

main90119-06306

9011908086

main90119-08086

9011908796

main90119-08796

9015940155

main90159-40155

9016450048

main90164-50048

9018210002

main90182-10002

9046022001

main90460-22001

9046065002

main90460-65002

9046305028

main90463-05028

904670501401

main90467-0501401

9046708043

main90467-08043

9048028002

main90480-28002

9054106033

main90541-06033

9095003145

main90950-03145

9165140616

main91651-40616

9165540616

main91655-40616

9331914010

main93319-14010

9338115010

main93381-15010

9338516014

main93385-16014

53 parts on this diagram · 4 diagrams in section
