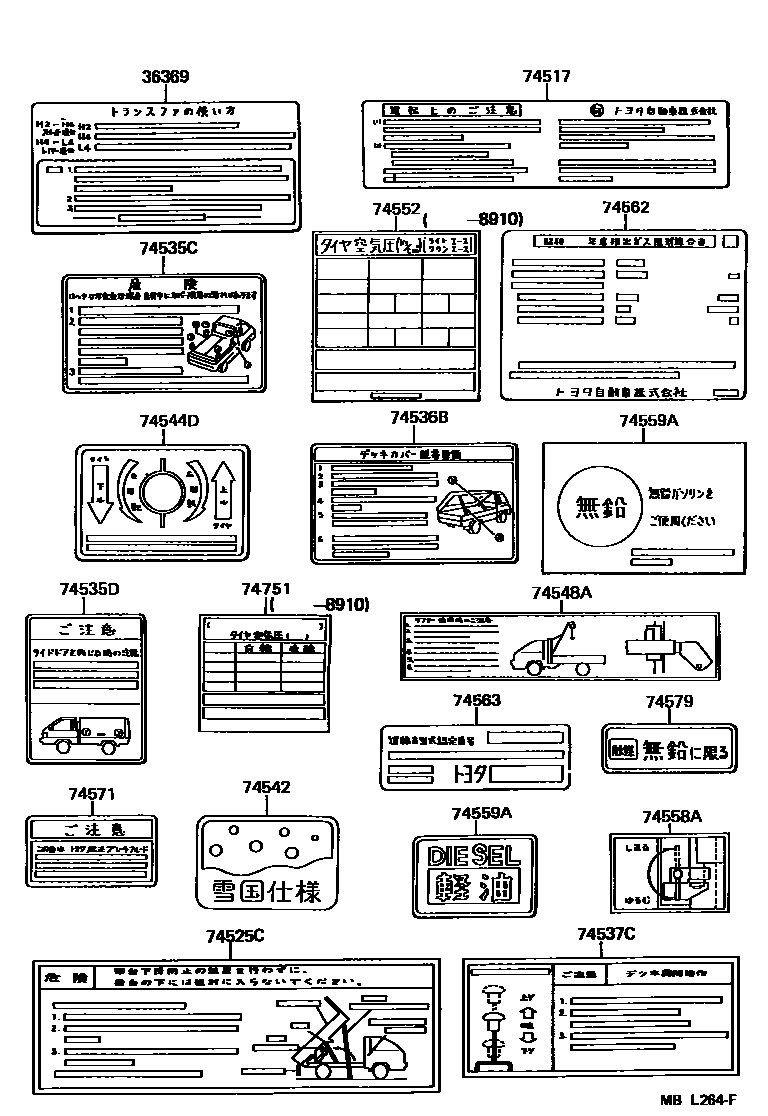

CAUTION PLATE

0001 1 0002 1

36369LABEL, TRANSFER INFORMATION

main36369-27010iCM65..TS;CM60,61,YM6#199310-199405

main36369-27040iCM65..TS;CM60,61,YM6#199405-199611

main36369-27050iCM6#,YM6#199611

74517PLATE, EXHAUST TEMPERATURE CAUTION

main74517-25010iCM65..TS;CM5#,60,61,KM51,YM55,6#199506-199611

main74517-26030iCM5#,6#,KM51,YM55,6#199611

main74517-32010iYM55,60..DX198610-198711

main74517-32020iCM5#,6#,KM5#..DX198610-198711

main74517-32050iCM65..TS;CM5#,60,61,KM51,YM55,6#199310-199506

74525CPLATE, DUMP MANUAL CAUTION

main74525-27010iCM51,60,KM51,YM60..JL..5H..IV199701

main74525-95700iCM51,60,KM51,YM60..JL..MTM..IV198910-199701

74535CLABEL, TOP COVER CAUTION

main74535-95700×2iKM5#,YM60..TS..1SO198610

74535DLABEL, SIDE TARPAULIN NOTICE

main74535-95701×2iCM60,KM50,YM60..GUT198610-198711

74536BLABEL, TOP COVER INFORMATION

main74536-95700iKM5#,YM60..TS..1SO198610-198808

main74536-95701iKM5#,YM60..TS..1SO198808

74537CPLATE, DUMP LEVER

main74537-27010iCM51,60,KM51,YM60..JL..5H..IV199701

main74537-95700iCM51,60,KM51,YM60..JL..MTM..IV198910-199701

74542PLATE, REAR WINDOW MARK

main74542-12020iCM5#,6#,KM5#,YM55,60198808-199008

74544DPLATE, TIRE CARRIER CAUTION

main74544-35050iCM50,55,KM5#,YM55..SJL198610-198701

main74544-35060×2iCM55..IV199404-199508

main74544-37010iCM51,55,KM51,YM55..SJL,SJLC; CM55..5H..IV199508

74548ALABEL, CRANE CAUTION

main74548-27010iCM55,YM55..SJLC199701

main74548-95700iCM55,65,YM55..JLC,SJLC198910-199701

74552PLATE, SAFETY CAUTION

main74552-27430iKM50..T1198610-198910

main74552-27440iKM50..JL..CBU;CM50,51,KM51..JL,T1198610-198612

main74552-27450iKM5#..SJL198610-198910

main74552-27460iCM55,YM55198610-198910

main74552-27470iCM60,YM60198610-198910

main74552-27480iCM65198610-198910

main74552-27490iKM50..JL..IV198610-198612

main74552-27510iCM50..SJL198610-198910

main74552-27560iKM51..T1;CM50,51,KM50..JL198612-198910

74558ALABEL, BOOM TURN PIVOT CLAMP

main74558-95701iCM55,65,YM55..JLC,SJLC198910

74559APLATE, FUEL CAUTION

main74559-14010iKM5#,YM55,60198610-198905

main74559-14030iCM5#,6#198610-199303

74562PLATE, EMISSION CONTROL SYSTEM INFORMATION

main74562-13061iCM50198610-198711

main74562-20420iCM51,55,6#198610-198711

main74562-27120iKM50198610-199008

main74562-27130iKM51198610-199008

main74562-27140iYM55,60198610-199008

main74562-27150iKM50..3SO..CBU198711-199008

main74562-27170iKM51199008-199509

main74562-27190iYM55,6#199008-199410

main74562-27191iYM55,6#199410-199508

main74562-28100iCM50198711-198910

main74562-28110iCM51,52,55,6#198711-199310

main74562-28210iCM65..TS;CM5#,60,61199310-199505

74563PLATE, EMISSION CONTROL DEVICE IDENTIFICATION

main74563-21060iCM51,55..4HC199508-199609

main74563-21061iCM51..4HC;CM55..4HC..CBU199609-199902

MARK=T-2C-KB2

main74563-27040iKM50198610-199008

main74563-27070iKM51198610-199008

main74563-27080iYM55,60198610-199008

main74563-27110iKM51199008-199508

main74563-28090iYM55,6#..MTM199008-199508

main74563-28140iCM65..TS;CM5#,60,61199310-199610

main74563-28141iCM65..TS;CM5#,60,61199610-199611

main74563-28160iKM51199508-199902

MARK=T-5K-GA

main74563-28200iYM55,60199611-199902

MARK=T-2Y-JGA

74571PLATE, BRAKE FLUID CAUTION

main47287-28020iCM65..TS;CM5#,60,61,KM51,YM55,6#199312-199611

main47288-32010iCM5#,6#,KM5#,YM55,60198610-198908

main75473-27050-A0iKM51..GUT,TJ199611-199906

WHITE,048

main75473-27050-A1iKM51..GUT,TJ199611-199906

CLEAR,8E5 ,8E8

74579PLATE, UNLEADED FUEL CAUTION

main74579-30011iYM55,60198610-199008

74751LABEL, TIRE PRESSURE INFORMATION

main42661-27150iCM51,KM5#..JL,T1198910-199506

main42661-27151iCM51,KM51..JL,T1199506

main42661-27160iKM5#..SJL198910-199006

main42661-27161iKM51..SJL199506

main42661-27170iCM51..SJL198910-199506

main42661-27171iCM51..SJL199506

main42661-27180iCM55,YM55198910-199006

main42661-27181iCM55,YM55199506

main42661-27190iCM60,YM60198910-199506

main42661-27191iCM60,YM60199506

main42661-27200iCM60,YM60..IV198912-199506

main42661-27201iCM65,YM65..TS199506-199611

main42661-27210iCM60,YM60..TS..3SO199008-199506

main42661-27211iCM60,YM60..TS..3SO199506

main42661-27230iCM51,KM51..JL..MTM..IV198912-199506

main42661-27231iCM51,KM51..JL..5H..IV199506

main42661-27250iCM52,61199110-199506

main42661-27251iCM52,61199506

main42661-27260iCM55..IV199404-199506

main42661-27261iCM55..5H..IV199506

main42661-27270iCM65..IV199611

18 parts on this diagram · 2 diagrams in section
