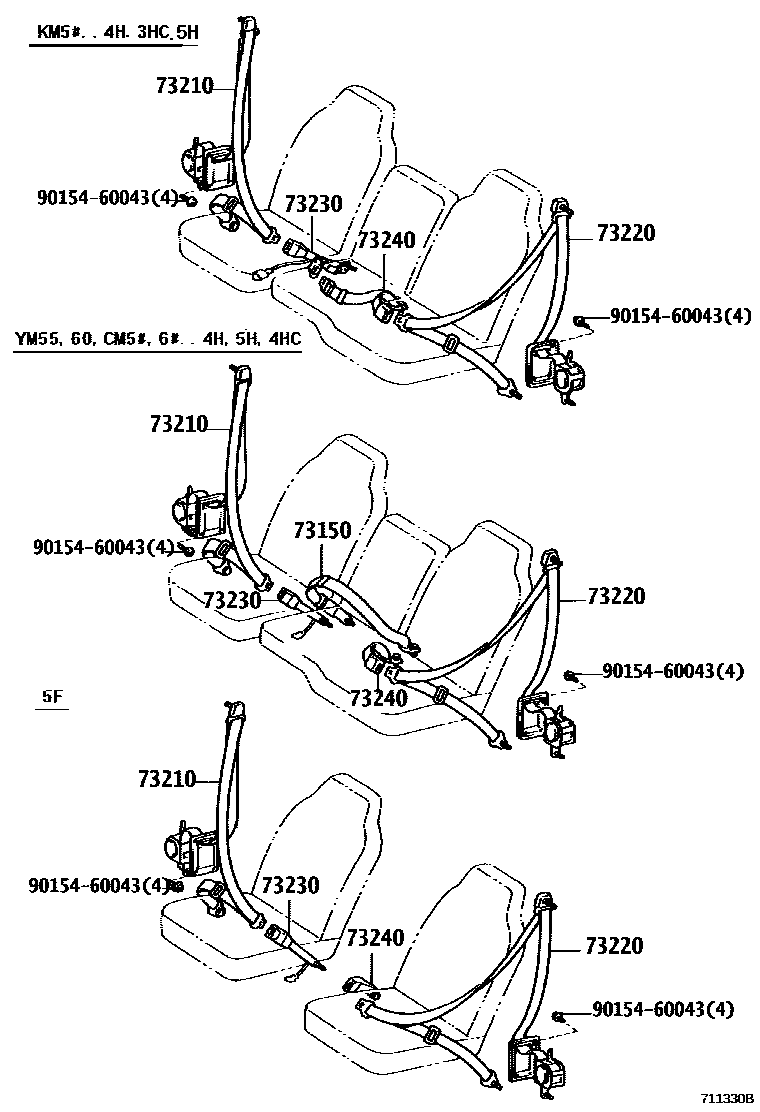

SEAT BELT

73150BELT ASSY, FRONT SEAT LAP TYPE, CENTER

main73150-27010-B0iCM65..TS;CM5#,60,61,YM55,6#..DX199611-199906

LIGHT GRAY,TRIM1#

main73150-95700-04iCM5#,6#,YM55,60..(1SO,3SO)..DX; CM60,YM60..GUT198610-198711

BLUE,DEEP BLUE; DEEP BLUE,TRIM8#

main73150-95701-03iCM5#,6#,YM55,6#..DX198910-199310

LIGHT GRAY,TRIM1#

main73150-95701-04iCM5#,6#,YM55,60..DX198808-198910

DEEP BLUE,TRIM8#

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-27010-B0iCM65..TS;CM5#,60,61,KM51,YM55,6#199310-199611

GRAY,TRIM1#

main73210-27020-B0iCM5#,6#,KM51,YM55,6#199611-199906

LIGHT GRAY,TRIM1#

main73210-95726-03iKM51,YM60..5F; KM51..3HC..SPX198610-198711

GRAY,MEDIUM GRAY; MEDIUM GRAY,TRIM1#

main73210-95726-04iCM60,YM60..GUT; KM50;CM5#,6#,KM51,YM55,60..(1SO,3SO)..DX198610-198711

BLUE,DEEP BLUE; DEEP BLUE,TRIM8#

main73210-95726-14iCM60,YM60..GUT198610-198808

BLUE,DEEP BLUE,TRIM8#

main73210-95730-03iKM51,YM60..SPX198808-198910

MEDIUM GRAY,TRIM1#

main73210-95730-04iCM5#,6#,KM5#,YM55,60..DX198808-198910

DEEP BLUE,TRIM8#

main73210-95730-13iCM5#,6#,KM5#,YM55,6#198910-199310

LIGHT GRAY,TRIM1#

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-27010-B0iCM65..TS;CM5#,60,61,KM51,YM55,6#199310-199611

GRAY,TRIM1#

main73220-27020-B0iCM5#,6#,KM51,YM55,6#199611-199906

LIGHT GRAY,TRIM1#

main73220-95708-03iKM51,YM60..5F; KM51..3HC..SPX198610-198711

GRAY,MEDIUM GRAY; MEDIUM GRAY,TRIM1#

main73220-95708-04iCM60,YM60..GUT; KM50;CM5#,6#,KM51,YM55,60..(1SO,3SO)..DX198610-198711

BLUE,DEEP BLUE; DEEP BLUE,TRIM8#

main73220-95708-14iCM60,YM60..GUT198610-198808

BLUE,DEEP BLUE,TRIM8#

main73220-95709-03iKM51,YM60..SPX198808-198910

MEDIUM GRAY,TRIM1#

main73220-95709-04iCM5#,6#,KM5#,YM55,60..DX198808-198910

DEEP BLUE,TRIM8#

main73220-95709-13iCM5#,6#,KM5#,YM55,6#198910-199310

LIGHT GRAY,TRIM1#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-27010-B0iKM51..DX199110-199611

GRAY,TRIM1#

main73230-27010-B1iKM51..DX199611-199906

LIGHT GRAY,TRIM1#

main73230-27020-B0iKM51..SPX;CM5#,6#,YM55,6#199110-199310

GRAY,TRIM1#

main73230-27020-B1iKM51..SPX;CM5#,6#,YM55,6#199611-199906

LIGHT GRAY,TRIM1#

main73230-95711-03iKM51,YM60..5F198610-198808

MEDIUM GRAY,TRIM1#

main73230-95711-04iCM5#,6#,YM55,60..(1SO,3SO)..DX; CM60,YM60..GUT198610-198711

BLUE,BLUE; BLUE,TRIM8#

main73230-95717-03iKM51..3HC..SPX198610-198711

GRAY,MEDIUM GRAY

main73230-95717-04iKM5#..DX198610-198711

BLUE,DEEP BLUE

main73230-95720-03iKM51..SPX;CM5#,6#,YM55,6#198910-199110

GRAY,TRIM1#

main73230-95720-04iCM5#,6#,YM55,60..DX198808-198910

DEEP BLUE,TRIM8#

main73230-95720-13iKM51,YM60..5F198808-198910

MEDIUM GRAY,TRIM1#

main73230-95721-03iKM5#..DX198910-199110

GRAY,TRIM1#

main73230-95721-04iKM5#..DX198808-198910

DEEP BLUE,TRIM8#

main73230-95721-13iKM51..3HC..SPX198808-198910

MEDIUM GRAY,TRIM1#

73240BELT ASSY, FRONT SEAT INNER, LH

main73240-27010-B0iKM51..DX199611-199906

LIGHT GRAY,TRIM1#

main73240-27020-B0iCM65..TS;CM5#,60,61,YM55,6#..DX199611-199906

LIGHT GRAY,TRIM1#

main73240-95727-03iKM51,YM60..5F198610-198808

MEDIUM GRAY,TRIM1#

main73240-95733-03iKM51..3HC..SPX198711-198808

MEDIUM GRAY,TRIM1#

main73240-95733-04iKM5#..DX198610-198711

BLUE,DEEP BLUE

main73240-95734-04iCM5#,6#,YM55,60..(1SO,3SO)..DX; CM60,YM60..GUT198610-198711

BLUE,DEEP BLUE; DEEP BLUE,TRIM8#

main73240-95737-03iKM51,YM60..SPX198910-199611

GRAY,TRIM1#

main73240-95737-13iKM51,YM60..5F198808-198910

MEDIUM GRAY,TRIM1#

main73240-95737-B0iCM65..TB;KM51,YM60..SPX199611-199906

LIGHT GRAY,TRIM1#

main73240-95738-03iKM5#..DX198910-199611

GRAY,TRIM1#

main73240-95738-04iKM5#..DX198808-198910

DEEP BLUE,TRIM8#

main73240-95738-13iKM51..3HC..SPX198808-198910

MEDIUM GRAY,TRIM1#

main73240-95740-03iCM65..TS;CM5#,60,61,YM55,6#..DX199310-199611

GRAY,TRIM1#

main73240-95740-04iCM5#,6#,YM55,60..DX198808-198910

DEEP BLUE,TRIM8#

9015460043

main90154-60043

6 parts on this diagram · 1 diagram in section
