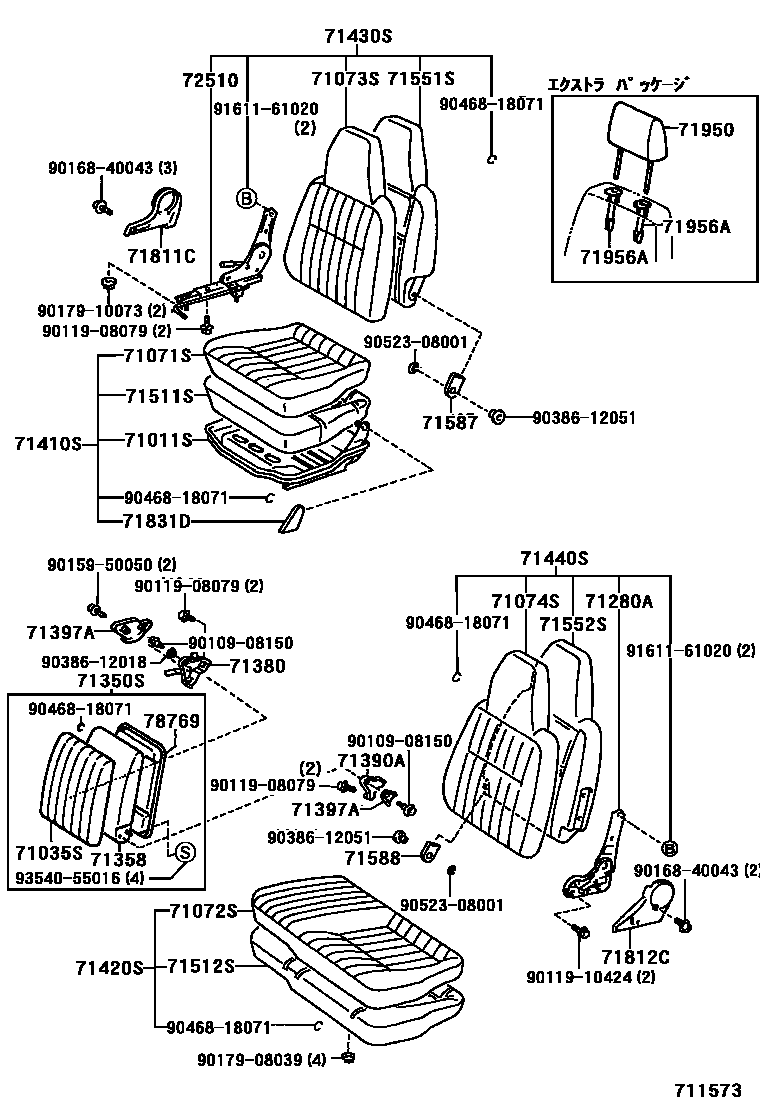

SEAT & SEAT TRACK

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1������������ 0008 1 0009 1

71011SFRAME SUB-ASSY, FRONT SEAT CUSHION, RH

main71011-95706iCM65..TS;CM5#,60,61,KM51,YM55,6#198610-199611

71035SCOVER, FRONT SEATBACK, CENTER

main71095-27010-B0iKM51..DX199310-199508

GRAY,TRIM1#

main71095-27020-B0iCM65..TS;CM5#,60,61,YM55,6#..DX199310-199508

GRAY,TRIM1#

main71095-27030-B0iKM51..DX199310-199508

main71095-27040-B0iCM65..TS;CM5#,60,61,YM55,6#..DX199310-199508

main71095-27050-B0iKM51..DX199508-199611

GRAY,TRIM1#

main71095-27051-B1iKM51..DX199611-199906

LIGHT GRAY,TRIM1#

main71095-27060-B0iCM65..TS;CM5#,60,61,YM55,6#..DX199508-199611

GRAY,TRIM1#

main71095-27061-B2iCM65..TS;CM5#,60,61,YM55,6#..DX199611-199906

LIGHT GRAY,TRIM1#

main71095-27070-B0iKM51..DX199508-199611

main71095-27071-B2iKM51..DX199611-199906

main71095-27080-B0iCM65..TS;CM5#,60,61,YM55,6#..DX199508-199611

main71095-27081-B1iCM65..TS;CM5#,60,61,YM55,6#..DX199611-199906

main71095-95705-04iKM50;CM5#,6#,KM51,YM55,60..(1SO,3SO)..DX198610-198910

main71095-95705-04iKM50;CM5#,6#,KM51,YM55,60..(1SO,3SO)..DX198610-198711

EXTRA,BLUE,DEEP BLUE

main71095-95706-04iCM60,YM60..GUT198610-198711

BLUE,DEEP BLUE

main71095-95706-04iKM50;CM5#,6#,KM51,YM55,60..(1SO,3SO)..DX198610-198910

DEEP BLUE,TRIM8#

main71095-95707-03iKM51..3HC..SPX198711-198910

MEDIUM GRAY,TRIM1#

main71095-95707-03iKM51..3HC..SPX198610-198711

GRAY,MEDIUM GRAY

main71095-95710-03iCM5#,6#,KM5#,YM55,6#..DX198910-199310

main71095-95712-03iCM5#,6#,KM5#,YM55,6#..DX198910-199310

LIGHT GRAY,TRIM1#

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-27010-05iCM65..IV198911-199310

main71071-27020-B0iCM65..TS;CM5#,60,61,KM51,YM55,6#..DX199310-199508

GRAY,TRIM1#

sub71071-27040

main71071-27030-B0iCM65..TS;CM5#,60,61,KM51,YM55,6#..DX199310-199508

GRAY,TRIM1#

main71071-27030-B0iCM65..TS;CM5#,60,61,KM51,YM55,6#..DX199310-199508

main71071-27040-B0iCM65..TS;CM5#,60,61,KM51,YM55,6#..DX199508-199611

GRAY,TRIM1#

main71071-27041-B1iCM5#,6#,KM51,YM55,6#..DX199611-199906

LIGHT GRAY,TRIM1#

main71071-27050-B0iCM65..TS;CM5#,60,61,KM51,YM55,6#..DX199508-199611

main71071-27050-B0iCM65..TS;CM5#,60,61,KM51,YM55,6#..DX199508-199611

GRAY,TRIM1#

main71071-27051-B1iCM5#,6#,KM51,YM55,6#..DX199611-199906

main71071-27060-B0iKM51,YM60..SPX199611-199906

LIGHT GRAY,TRIM1#

main71071-95715-14iKM50;CM5#,6#,KM51,YM55,60..(1SO,3SO)..DX198610-198703

BLUE,DEEP BLUE

main71071-95715-14iCM60,YM60..GUT198610-198703

BLUE,DEEP BLUE,TRIM8#

main71071-95721-04iKM50;CM5#,6#,KM51,YM55,60..(1SO,3SO)..DX198610-198703

EXTRA,BLUE,BLUE,TRIM8#

sub71071-95723

main71071-95721-04iKM50;CM5#,6#,KM51,YM55,60..(1SO,3SO)..DX198610-198703

EXTRA,BLUE,BLUE

sub71071-95723

main71071-95729-03iKM51,YM60..5F198610-198808

MEDIUM GRAY,TRIM1#

main71071-95729-03iKM51..3HC..SPX198610-198711

GRAY,MEDIUM GRAY

main71071-95733-04iCM60,YM60..GUT198703-198711

BLUE,DEEP BLUE

main71071-95733-04iKM50;CM5#,6#,KM51,YM55,60..(1SO,3SO)..DX198703-198808

DEEP BLUE,TRIM8#

main71071-95734-04iCM5#,6#,KM5#,YM55,60..DX198703-198808

main71071-95734-04iCM60,YM60..GUT198703-198711

EXTRA,BLUE,DEEP BLUE

main71071-95743-04iCM5#,6#,KM5#,YM55,60..DX198808-198910

DEEP BLUE,TRIM8#

main71071-95744-03iKM51,YM60..SPX198808-198910

MEDIUM GRAY,TRIM1#

main71071-95745-04iCM5#,6#,KM5#,YM55,60..DX198808-198910

main71071-95750-03iCM5#,6#,KM5#,YM55,6#..DX198910-199310

LIGHT GRAY,TRIM1#

main71071-95751-03iCM5#,6#,KM5#,YM55,6#..DX198910-199310

main71071-95752-03iKM51,YM60..SPX198910-199310

LIGHT GRAY,TRIM1#

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71072-27010-05iCM65..IV198911-199310

main71072-27020-B0iKM51..DX199310-199508

GRAY,TRIM1#

sub71072-27070

main71072-27030-B0iCM65..TS;CM5#,60,61,YM55,6#..DX199310-199508

GRAY,TRIM1#

sub71072-27080

main71072-27040-B0iKM51..DX199310-199508

main71072-27050-B0iCM65..TS;CM5#,60,61,YM55,6#..DX199310-199508

sub71072-27100

main71072-27060-B1iKM51,YM60..SPX199310-199508

GRAY,TRIM1#

sub71072-27110

main71072-27070-B0iKM51..DX199508-199611

GRAY,TRIM1#

main71072-27071-B1iKM51..DX199611-199906

LIGHT GRAY,TRIM1#

main71072-27080-B0iCM65..TS;CM5#,60,61,YM55,6#..DX199508-199611

GRAY,TRIM1#

main71072-27081-B1iCM65..TS;CM5#,60,61,YM55,6#..DX199611-199906

LIGHT GRAY,TRIM1#

main71072-27090-B0iKM51..DX199508-199611

main71072-27091-B1iKM51..DX199611-199906

main71072-27100-B0iCM65..TS;CM5#,60,61,YM55,6#..DX199508-199611

main71072-27101-B1iCM65..TS;CM5#,60,61,YM55,6#..DX199611-199906

main71072-27110-B0iKM51,YM60..SPX199508-199611

GRAY,TRIM1#

main71072-27111-B1iKM51,YM60..SPX199611-199906

LIGHT GRAY,TRIM1#

main71072-27120-B0iCM65..TB199611-199906

LIGHT GRAY,TRIM1#

main71072-27130-B0iCM65..TB199611-199906

main71072-95737-04iKM5#..DX198610-198711

EXTRA,BLUE,DEEP BLUE

main71072-95737-04iKM5#..DX198711-198808

main71072-95738-04iCM5#,6#,YM55,60..(1SO,3SO)..DX198610-198711

EXTRA,BLUE,DEEP BLUE

main71072-95738-04iCM60,YM60..GUT198610-198808

main71072-95739-04iKM5#..DX198610-198711

BLUE,DEEP BLUE

main71072-95739-04iKM5#..DX198711-198808

DEEP BLUE,TRIM8#

main71072-95740-04iCM60,YM60..GUT198610-198711

BLUE,DEEP BLUE

main71072-95740-04iCM5#,6#,YM55,60..(1SO,3SO)..DX198610-198808

DEEP BLUE,TRIM8#

main71072-95741-03iKM51..3HC..SPX198711-198808

MEDIUM GRAY,TRIM1#

main71072-95741-03iKM51..3HC..SPX198610-198711

GRAY,MEDIUM GRAY

main71072-95742-03iKM51,YM60..5F198610-198808

MEDIUM GRAY,TRIM1#

main71072-95767-04iCM5#,6#,YM55,60..DX198808-198910

DEEP BLUE,TRIM8#

main71072-95768-04iCM5#,6#,YM55,60..DX198808-198910

main71072-95769-04iKM5#..DX198808-198910

DEEP BLUE,TRIM8#

main71072-95770-03iKM51..3HC..SPX198808-198910

MEDIUM GRAY,TRIM1#

main71072-95771-03iKM51,YM60..5F198808-198910

MEDIUM GRAY,TRIM1#

main71072-95772-04iKM5#..DX198808-198910

main71072-95779-03iKM5#..DX198910-199310

LIGHT GRAY,TRIM1#

main71072-95780-03iCM5#,6#,YM55,6#..DX198910-199310

LIGHT GRAY,TRIM1#

main71072-95781-03iCM5#,6#,YM55,6#..DX198910-199310

main71072-95782-03iKM51,YM60..SPX198910-199310

LIGHT GRAY,TRIM1#

main71072-95783-03iKM5#..DX198910-199310

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71073-27010-05iCM65..IV198911-199310

main71073-27020-B0iCM65..TS;CM5#,60,61,KM51,YM55,6#..DX199310-199508

GRAY,TRIM1#

sub71073-27040

main71073-27030-B0iKM51,YM60..SPX199310-199508

main71073-27030-B0iCM65..TS;CM5#,60,61,KM51,YM55,6#..DX199310-199508

GRAY,TRIM1#

main71073-27040-B0iCM65..TS;CM5#,60,61,KM51,YM55,6#..DX199508-199611

GRAY,TRIM1#

main71073-27041-B1iCM5#,6#,KM51,YM55,6#..DX199611-199906

LIGHT GRAY,TRIM1#

main71073-27050-B0iCM65..TS;CM5#,60,61,KM51,YM55,6#..DX199508-199611

GRAY,TRIM1#

main71073-27050-B0iKM51,YM60..SPX199508-199611

main71073-27051-B1iCM5#,6#,KM51,YM55,6#..DX199611-199906

main71073-27060-B0iKM51,YM60..SPX199611-199906

LIGHT GRAY,TRIM1#

main71073-95713-14iCM60,YM60..GUT198610-198705

BLUE,BLUE,TRIM8#

main71073-95713-14iKM50;CM5#,6#,KM51,YM55,60..(1SO,3SO)..DX198610-198705

BLUE,BLUE

main71073-95721-04iCM60,YM60..GUT198610-198705

EXTRA,BLUE,BLUE,TRIM8#

sub71073-95725

main71073-95721-04iKM50;CM5#,6#,KM51,YM55,60..(1SO,3SO)..DX198610-198705

EXTRA,BLUE,BLUE

sub71073-95725

main71073-95731-03iKM51,YM60..5F198610-198711

GRAY,MEDIUM GRAY

main71073-95731-03iKM51,YM60..5F198610-198910

MEDIUM GRAY,TRIM1#

main71073-95736-04iCM60,YM60..GUT198705-198711

BLUE,DEEP BLUE

main71073-95736-04iCM5#,6#,KM5#,YM55,60..DX198705-198910

DEEP BLUE,TRIM8#

main71073-95737-04iCM5#,6#,KM5#,YM55,60..DX198705-198910

main71073-95737-04iCM60,YM60..GUT198705-198711

EXTRA,BLUE,DEEP BLUE

main71073-95752-03iCM5#,6#,KM5#,YM55,6#..DX198910-199310

LIGHT GRAY,TRIM1#

main71073-95753-03iCM5#,6#,KM5#,YM55,6#..DX198910-199310

main71073-95754-03iKM51,YM60..SPX198910-199310

LIGHT GRAY,TRIM1#

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71074-27010-05iCM65..IV198911-199310

main71074-27020-B0iCM65..TS;CM5#,60,61,KM51,YM55,6#..DX199310-199508

GRAY,TRIM1#

sub71074-27040

main71074-27030-B0iKM51,YM60..SPX199310-199508

GRAY,TRIM1#

main71074-27030-B0iKM51,YM60..SPX199310-199508

main71074-27040-B0iCM65..TS;CM5#,60,61,KM51,YM55,6#..DX199508-199611

GRAY,TRIM1#

main71074-27041-B1iCM5#,6#,KM51,YM55,6#..DX199611-199906

LIGHT GRAY,TRIM1#

main71074-27050-B0iKM51,YM60..SPX199508-199611

main71074-27050-B0iKM51,YM60..SPX199508-199611

GRAY,TRIM1#

main71074-27051-B1iCM5#,6#,KM51,YM55,6#..DX199611-199906

main71074-27060-B1iKM51,YM60..SPX199611-199906

LIGHT GRAY,TRIM1#

main71074-95714-14iKM50;CM5#,6#,KM51,YM55,60..(1SO,3SO)..DX198610-198711

BLUE,BLUE

main71074-95714-14iCM60,YM60..GUT198610-198910

BLUE,TRIM8#

main71074-95720-04iCM60,YM60..GUT198610-198910

main71074-95720-04iCM60,YM60..GUT198610-198711

EXTRA,BLUE,BLUE

main71074-95738-03iKM51,YM60..5F198610-198711

GRAY,MEDIUM GRAY

main71074-95738-03iKM51..3HC..SPX198610-198910

MEDIUM GRAY,TRIM1#

main71074-95761-03iCM5#,6#,KM5#,YM55,6#..DX198910-199310

LIGHT GRAY,TRIM1#

main71074-95762-03iCM5#,6#,KM5#,YM55,6#..DX198910-199310

main71074-95763-03iKM51,YM60..SPX198910-199310

LIGHT GRAY,TRIM1#

71280AHINGE ASSY, FRONT SEATBACK, LH

main71320-95701-03iKM51,YM60..3FC,5F198610-199611

GRAY,TRIM1#

sub71320-95701

main71320-95701-04iCM5#,6#,KM5#,YM55,60..DX198610-198910

BLUE,TRIM8#

sub71320-95701

main71320-95701-C0iCM65..TS;CM5#,60,61,KM51,YM55,6#..DX199508-199906

BLACK,TRIM1#

sub71320-95701

71350SBACK ASSY, FRONT SEAT, CENTER

main71350-27010-B0iKM51..DX199310-199508

***,GRAY,TRIM1#

main71350-27020-B0iCM5#,6#,YM55,6#..DX199310-199508

***,GRAY,TRIM1#

main71350-27030-B0iKM51..DX199310-199508

main71350-27040-B0iCM5#,6#,YM55,6#..DX199310-199508

main71350-27050-B0iKM51..DX199508-199611

***,GRAY,TRIM1#

main71350-27051-B1iKM51..DX199611-199906

***,LIGHT GRAY,TRIM1#

main71350-27060-B0iCM5#,6#,YM55,6#..DX199508-199611

***,GRAY,TRIM1#

main71350-27061-B1iCM5#,6#,YM55,6#..DX199611-199906

***,LIGHT GRAY,TRIM1#

main71350-27070-B0iKM51..DX199508-199611

main71350-27071-B1iKM51..DX199611-199906

main71350-27080-B0iCM5#,6#,YM55,6#..DX199508-199611

main71350-27081-B1iCM5#,6#,YM55,6#..DX199611-199906

main71350-95723-04iCM5#,6#,KM5#,YM55,60..DX198610-198910

main71350-95724-04iCM5#,6#,KM5#,YM55,60..DX198610-198910

***,DEEP BLUE,TRIM8#

main71350-95725-03iKM51..3HC..SPX198711-198910

***,MEDIUM GRAY,TRIM1#

main71350-95725-03iKM51..3HC..SPX198610-198711

GRAY,MEDIUM GRAY

main71350-95728-03iCM5#,6#,KM5#,YM55,6#..DX198910-199310

main71350-95730-03iCM5#,6#,KM5#,YM55,6#..DX198910-199310

***,LIGHT GRAY,TRIM1#

71358PAD, CENTER SEATBACK

main71033-27010iCM65..TS;CM5#,60,61,YM55,6#..DX199310-199611

main71033-27020iKM51..DX199611

main71033-27030iCM65..TS;CM5#,60,61,YM55,6#..DX199611

main71033-95702iKM51..DX198610-199611

71380HINGE ASSY, CENTER SEAT, RH

main71380-95700-03iKM51..3HC..SPX198711-198910

MEDIUM GRAY,TRIM1#

main71380-95700-03iKM51..3HC..SPX198610-198711

GRAY,MEDIUM GRAY

main71380-95700-04iKM5#..DX198711-198910

BLUE,TRIM8#

main71380-95700-04iKM5#..DX198610-198711

BLUE,BLUE

main71380-95700-13iKM5#..DX198910-199508

GRAY,TRIM1#

main71380-95700-C0iKM51..DX199508-199906

BLACK,TRIM1#

main71380-95701-03iCM60,65..GUT,TS;CM5#,61,YM55,6#..DX198910-199508

GRAY,TRIM1#

main71380-95701-04iCM5#,6#,YM55,60..(1SO,3SO)..DX198610-198711

BLUE,DEEP BLUE

main71380-95701-04iCM60,YM60..GUT198610-198910

DEEP BLUE,TRIM8#

main71380-95701-C0iCM60,65..GUT,TS;CM5#,61,YM55,6#..DX199508-199906

BLACK,TRIM1#

71390AHINGE ASSY, CENTER SEAT, LH

main71378-95703-03iCM60,65..GUT,TS;CM5#,61,YM55,6#..DX198910-199508

GRAY,TRIM1#

main71378-95703-04iCM60,YM60..GUT198610-198910

DEEP BLUE,TRIM8#

main71378-95703-04iCM5#,6#,YM55,60..(1SO,3SO)..DX198610-198711

BLUE,DEEP BLUE

main71378-95703-C0iCM60,65..GUT,TS;CM5#,61,YM55,6#..DX199508-199906

BLACK,TRIM1#

main71378-95704-03iKM51..3HC..SPX198610-198711

GRAY,MEDIUM GRAY

main71378-95704-03iKM51..3HC..SPX198711-198910

MEDIUM GRAY,TRIM1#

main71378-95704-04iKM5#..DX198711-198910

DEEP BLUE,TRIM8#

main71378-95704-04iKM5#..DX198610-198711

BLUE,DEEP BLUE

main71378-95704-13iKM5#..DX198910-199508

GRAY,TRIM1#

main71378-95704-C0iKM51..DX199508-199906

BLACK,TRIM1#

71397ACOVER, CENTER SEAT HINGE

main71395-95701-03iKM51..3HC..SPX198610-198711

RH,GRAY,MEDIUM GRAY

sub71395-95701

main71395-95701-03iKM51..3HC..SPX198711-198910

sub71395-95701

main71395-95701-04iKM5#..DX198711-198910

sub71395-95701

main71395-95701-04iKM5#..DX198610-198711

RH,BLUE,DEEP BLUE

sub71395-95701

main71395-95701-13iKM5#..DX198910-199611

sub71395-95701

main71395-95701-B0iKM51..DX199611-199906

sub71395-95701

main71395-95702-03iCM60,65..GUT,TS;CM5#,61,YM55,6#..DX198910-199611

sub71395-95702

main71395-95702-04iCM60,YM60..GUT198610-198711

RH,BLUE,DEEP BLUE

sub71395-95702

main71395-95702-04iCM5#,6#,YM55,60..(1SO,3SO)..DX198610-198910

sub71395-95702

main71395-95702-B0iCM60,65..GUT,TS;CM5#,61,YM55,6#..DX199611-199906

sub71395-95702

main71396-95704-03iKM51..3HC..SPX198711-198910

sub71396-95704

main71396-95704-03iKM51..3HC..SPX198610-198711

LH,GRAY,MEDIUM GRAY

sub71396-95704

main71396-95704-04iCM60,YM60..GUT198610-198910

sub71396-95704

main71396-95704-04iCM60,YM60..GUT198610-198711

LH,BLUE,DEEP BLUE

sub71396-95704

main71396-95704-13iCM60,65..GUT,TS;CM5#,61,KM5#,YM55,6#..DX198910-199611

sub71396-95704

main71396-95704-B0iCM60,65..GUT,TS;CM5#,61,KM51,YM55,6#..DX199611-199906

sub71396-95704

71410SCUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71410-27010-05iCM65..IV198911-199310

main71410-27020-B0iCM65..TS;CM5#,60,61,KM51,YM55,6#..DX199310-199508

***,GRAY,TRIM1#

main71410-27030-B0iCM65..TS;CM5#,60,61,KM51,YM55,6#..DX199310-199508

***,GRAY,TRIM1#

main71410-27030-B0iKM51,YM60..SPX199310-199508

main71410-27040-B0iCM65..TS;CM5#,60,61,KM51,YM55,6#..DX199508-199611

***,GRAY,TRIM1#

main71410-27041-B1iCM5#,6#,KM51,YM55,6#..DX199611-199906

***,LIGHT GRAY,TRIM1#

main71410-27050-B0iKM51,YM60..SPX199508-199611

main71410-27050-B0iCM65..TS;CM5#,60,61,KM51,YM55,6#..DX199508-199611

***,GRAY,TRIM1#

main71410-27051-B1iCM5#,6#,KM51,YM55,6#..DX199611-199906

main71410-27060-B0iKM51,YM60..SPX199611-199906

***,LIGHT GRAY,TRIM1#

main71410-95767-14iCM60,YM60..GUT198610-198703

***,BLUE,DEEP BLUE,TRIM8#

main71410-95767-14iCM60,YM60..GUT198610-198703

***,BLUE,DEEP BLUE

main71410-95773-04iCM60,YM60..GUT198610-198703

***,EXTRA,BLUE,BLUE

sub71410-95775

main71410-95773-04iCM60,YM60..GUT198610-198703

***,EXTRA,BLUE,BLUE,TRIM8#

sub71410-95775

main71410-95781-03iKM51,YM60..5F198610-198808

***,MEDIUM GRAY,TRIM1#

main71410-95781-03iKM51,YM60..5F198610-198711

***,GRAY,MEDIUM GRAY

main71410-95785-04iKM50;CM5#,6#,KM51,YM55,60..(1SO,3SO)..DX198703-198808

DEEP BLUE,TRIM8#

main71410-95785-04iCM60,YM60..GUT198703-198711

BLUE,DEEP BLUE

main71410-95786-04iKM50;CM5#,6#,KM51,YM55,60..(1SO,3SO)..DX198703-198808

main71410-95786-04iKM50;CM5#,6#,KM51,YM55,60..(1SO,3SO)..DX198703-198711

EXTRA,BLUE,DEEP BLUE

main71410-95G05-04iCM5#,6#,YM55,60..DX198808-198910

main71410-95G05-04iCM5#,6#,YM55,60..DX198808-198910

***,DEEP BLUE,TRIM8#

main71410-95G06-03iKM51,YM60..SPX198808-198910

***,MEDIUM GRAY,TRIM1#

main71410-95G07-04iCM5#,6#,KM5#,YM55,60..DX198808-198910

main71410-95G12-03iCM5#,6#,KM5#,YM55,6#..DX198910-199310

***,LIGHT GRAY,TRIM1#

main71410-95G13-03iCM5#,6#,KM5#,YM55,6#..DX198910-199310

main71410-95G14-03iKM51,YM60..SPX198910-199310

***,LIGHT GRAY,TRIM1#

main71420-95766-04iKM5#..DX198808-198910

71420SCUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)

main71420-27010-05iCM65..IV198911-199310

main71420-27020-B0iKM51..DX199310-199508

***,GRAY,TRIM1#

main71420-27030-B0iCM65..TS;CM5#,60,61,YM55,6#..DX199310-199508

***,GRAY,TRIM1#

main71420-27040-B0iKM51..DX199310-199508

main71420-27050-B0iCM65..TS;CM5#,60,61,YM55,6#..DX199310-199508

main71420-27060-B1iKM51,YM60..SPX199310-199508

***,GRAY,TRIM1#

main71420-27070-B0iKM51..DX199508-199611

***,GRAY,TRIM1#

main71420-27071-B1iKM51..DX199611-199906

***,LIGHT GRAY,TRIM1#

main71420-27080-B0iCM65..TS;CM5#,60,61,YM55,6#..DX199508-199611

***,GRAY,TRIM1#

main71420-27081-B1iCM65..TS;CM5#,60,61,YM55,6#..DX199611-199906

***,LIGHT GRAY,TRIM1#

main71420-27090-B0iKM51..DX199508-199611

main71420-27091-B1iKM51..DX199611-199906

main71420-27100-B0iCM65..TS;CM5#,60,61,YM55,6#..DX199508-199611

main71420-27101iCM65..TS;CM5#,60,61,YM55,6#..DX199611-199906

main71420-27110-B0iKM51,YM60..SPX199508-199611

***,GRAY,TRIM1#

main71420-27111-B1iKM51,YM60..SPX199611-199906

***,LIGHT GRAY,TRIM1#

main71420-27120-B0iCM65..TB199611-199906

***,LIGHT GRAY,TRIM1#

main71420-27130-B0iCM65..TB199611-199906

main71420-95734-04iKM5#..DX198610-198711

EXTRA,BLUE,DEEP BLUE

main71420-95734-04iKM5#..DX198711-198808

main71420-95735-04iCM60,YM60..GUT198610-198711

***,EXTRA,BLUE,DEEP BLUE

main71420-95735-04iCM5#,6#,YM55,60..(1SO,3SO)..DX198610-198808

main71420-95736-04iKM5#..DX198711-198808

***,DEEP BLUE,TRIM8#

main71420-95736-04iKM5#..DX198610-198711

BLUE,DEEP BLUE

main71420-95737-04iCM5#,6#,YM55,60..(1SO,3SO)..DX198610-198808

***,DEEP BLUE,TRIM8#

main71420-95737-04iCM60,YM60..GUT198610-198711

***,BLUE,DEEP BLUE

main71420-95738-03iKM51..3HC..SPX198610-198711

GRAY,MEDIUM GRAY

main71420-95738-03iKM51..3HC..SPX198711-198808

***,MEDIUM GRAY,TRIM1#

main71420-95739-03iKM51,YM60..5F198610-198808

***,MEDIUM GRAY,TRIM1#

main71420-95764-04iCM5#,6#,YM55,60..DX198808-198910

***,DEEP BLUE,TRIM8#

main71420-95765-04iCM5#,6#,YM55,60..DX198808-198910

main71420-95767-03iKM51..3HC..SPX198808-198910

***,MEDIUM GRAY,TRIM1#

main71420-95768-03iKM51,YM60..5F198808-198910

***,MEDIUM GRAY,TRIM1#

main71420-95769-04iKM5#..DX198808-198910

main71420-95776-03iKM5#..DX198910-199310

***,LIGHT GRAY,TRIM1#

main71420-95777-03iCM5#,6#,YM55,6#..DX198910-199310

***,LIGHT GRAY,TRIM1#

main71420-95778-03iCM5#,6#,YM55,6#..DX198910-199310

main71420-95779-03iKM51,YM60..SPX198910-199310

***,LIGHT GRAY,TRIM1#

main71420-95780-03iKM5#..DX198910-199310

71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71430-27010-B0iCM5#,6#,KM51,YM55,6#..DX199310-199508

***,GRAY,TRIM1#

main71430-27020-B0iCM5#,6#,KM51,YM55,6#..DX199310-199508

main71430-27030-B1iKM51,YM60..SPX199310-199508

***,GRAY,TRIM1#

main71430-27040-B0iCM5#,6#,KM51,YM55,6#..DX199508-199611

***,GRAY,TRIM1#

main71430-27041-B1iCM5#,6#,KM51,YM55,6#..DX199611-199906

***,LIGHT GRAY,TRIM1#

main71430-27050-B0iCM5#,6#,KM51,YM55,6#..DX199508-199611

main71430-27051-B1iCM5#,6#,KM51,YM55,6#..DX199611-199906

main71430-27060-B0iKM51,YM60..SPX199508-199611

***,GRAY,TRIM1#

main71430-27061-B1iKM51,YM60..SPX199611-199906

***,LIGHT GRAY,TRIM1#

main71430-95737-04iCM5#,6#,KM5#,YM55,60..DX198610-198910

main71430-95738-04iCM5#,6#,KM5#,YM55,60..DX198610-198910

***,DEEP BLUE,TRIM8#

main71430-95739-03iKM51,YM60..SPX198610-198910

***,MEDIUM GRAY,TRIM1#

main71430-95762-03iCM5#,6#,KM5#,YM55,6#..DX198910-199310

***,LIGHT GRAY,TRIM1#

main71430-95763-03iCM5#,6#,KM5#,YM55,6#..DX198910-199310

main71430-95764-03iKM51,YM60..SPX198910-199310

***,LIGHT GRAY,TRIM1#

main71430-95765-05iCM65..IV198911-199310

71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

main71440-27020-B0iCM5#,6#,KM51,YM55,6#..DX199310-199508

***,GRAY,TRIM1#

main71440-27030-B0iCM5#,6#,KM51,YM55,6#..DX199310-199508

main71440-27040-B1iKM51,YM60..SPX199310-199508

***,GRAY,TRIM1#

main71440-27050-B0iCM5#,6#,KM51,YM55,6#..DX199508-199611

***,GRAY,TRIM1#

main71440-27051-B1iCM5#,6#,KM51,YM55,6#..DX199611-199906

***,LIGHT GRAY,TRIM1#

main71440-27060-B0iCM5#,6#,KM51,YM55,6#..DX199508-199611

main71440-27061-B1iCM5#,6#,KM51,YM55,6#..DX199611-199906

main71440-27070-B0iKM51,YM60..SPX199508-199611

***,GRAY,TRIM1#

main71440-27071-B1iKM51,YM60..SPX199611-199906

***,LIGHT GRAY,TRIM1#

main71440-95721-14iCM5#,6#,KM5#,YM55,60..DX198610-198910

***,BLUE,TRIM8#

main71440-95743-04iCM5#,6#,KM5#,YM55,60..DX198610-198910

main71440-95745-03iKM51,YM60..SPX198610-198910

***,MEDIUM GRAY,TRIM1#

main71440-95771-03iCM5#,6#,KM5#,YM55,6#..DX198910-199310

***,LIGHT GRAY,TRIM1#

main71440-95772-03iCM5#,6#,KM5#,YM55,6#..DX198910-199310

main71440-95773-03iKM51,YM60..SPX198910-199310

***,LIGHT GRAY,TRIM1#

main71440-95779-05iCM65..IV198911-199310

71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71511-95701iCM5#,6#,KM5#,YM55,6#198610-199611

main71511-95703iCM65..IV198911-199310

71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

main71502-95713iKM5#..3HC,4H198610-198910

main71502-95714iCM5#,6#,YM55,60..DX198610-198910

main71502-95716iKM5#..DX198910

main71502-95717iCM65..TS;CM5#,60,61,YM55,6#..DX198910-199310

main71512-95702iCM65..TB;KM51,YM60..SPX198610-199611

main71512-95707iCM65..IV198911-199310

71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71505-95703iCM5#,6#,KM5#,YM55,60..DX198610-198711

EXTRA

main71505-95703iCM5#,6#,KM5#,YM55,6#..DX198711-199611

main71505-95703iKM51,YM60..SPX198610

main71505-95705iCM5#,6#,KM51,YM55,6#..DX198610-199611

main71505-95707iKM51..DX199310-199508

main71505-95707iCM65..IV198911-199310

71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71506-95702iCM65..TS;CM5#,60,61,KM51,YM55,6#..DX198610-199611

main71506-95703iKM51,YM60..SPX198610

main71506-95703iCM5#,6#,KM5#,YM55,60..DX198610-198711

EXTRA

main71506-95703iCM5#,6#,KM51,YM55,6#..DX198711-199611

main71506-95710iCM65..IV198911-199310

71587PROTECTOR, FRONT SEATBACK EDGE

main71588-95700-03iKM51..3HC..SPX198610-198910

MEDIUM GRAY,TRIM1#

sub71588-95700

main71588-95700-03iKM51,YM60..5F198610-198711

GRAY,MEDIUM GRAY

sub71588-95700

main71588-95700-04iCM60,YM60..GUT198610-198910

BLUE,TRIM8#

sub71588-95700

main71588-95700-04iKM50;CM5#,6#,KM51,YM55,60..(1SO,3SO)..DX198610-198711

BLUE,BLUE

sub71588-95700

main71588-95700-13iCM5#,6#,KM5#,YM55,6#198910-199611

GRAY,TRIM1#

sub71588-95700

main71588-95700-B0iCM5#,6#,KM51,YM55,6#199611-199906

LIGHT GRAY,TRIM1#

sub71588-95700

71588PROTECTOR, FRONT SEATBACK EDGE, NO.2

main71588-95700-03iKM51,YM60..5F198610-198711

GRAY,MEDIUM GRAY

sub71588-95700

main71588-95700-03iKM51,YM60..5F198610-198910

MEDIUM GRAY,TRIM1#

sub71588-95700

main71588-95700-04iKM50;CM5#,6#,KM51,YM55,60..(1SO,3SO)..DX198610-198711

BLUE,BLUE

sub71588-95700

main71588-95700-04iCM60,YM60..GUT198610-198910

BLUE,TRIM8#

sub71588-95700

main71588-95700-13iCM60,65..GUT,TS;CM5#,61,KM5#,YM55,6#198910-199611

GRAY,TRIM1#

sub71588-95700

main71588-95700-B0iCM60..GUT,TS;CM5#,61,65,KM51,YM55,6#199611-199906

LIGHT GRAY,TRIM1#

sub71588-95700

71811CCOVER, RECLINING ADJUSTER, RH

main71801-95701-03iKM51,YM60..5F198610-198711

GRAY,MEDIUM GRAY

sub71801-95701

main71801-95701-03iKM51,YM60..5F198610-198910

MEDIUM GRAY,TRIM1#

sub71801-95701

main71801-95701-04iCM60,YM60..GUT198610-198910

DEEP BLUE,TRIM8#

sub71801-95701

main71801-95701-04iKM50;CM5#,6#,KM51,YM55,60..(1SO,3SO)..DX198610-198711

BLUE,DEEP BLUE

sub71801-95701

main71801-95701-13iCM5#,6#,KM5#,YM55,6#198910-199611

GRAY,TRIM1#

sub71801-95701

main71801-95701-B0iCM5#,6#,KM51,YM55,6#199611-199906

LIGHT GRAY,TRIM1#

sub71801-95701

71812CCOVER, RECLINING ADJUSTER, LH

main71802-95701-03iKM51..3HC..SPX198610-198910

MEDIUM GRAY,TRIM1#

sub71802-95701

main71802-95701-03iKM51,YM60..5F198610-198711

GRAY,MEDIUM GRAY

sub71802-95701

main71802-95701-13iCM65..IV198911-199310

sub71802-95701

main71802-95701-13iKM51,YM60..SPX198910-199611

GRAY,TRIM1#

sub71802-95701

main71802-95701-B0iKM51,YM60..SPX199611-199906

LIGHT GRAY,TRIM1#

sub71802-95701

main71812-95700-03iCM60,65..GUT,TS;CM5#,61,KM5#,YM55,6#..DX198910-199611

GRAY,TRIM1#

sub71812-95700

main71812-95700-04iCM60,YM60..GUT198610-198711

BLUE,BLUE

sub71812-95700

main71812-95700-04iKM50;CM5#,6#,KM51,YM55,60..(1SO,3SO)..DX198610-198910

BLUE,TRIM8#

sub71812-95700

main71812-95700-B0iCM60..GUT,TS;CM5#,61,65,KM51,YM55,6#..DX199611-199906

LIGHT GRAY,TRIM1#

sub71812-95700

71831DCOVER, FRONT SEAT HINGE, RH

main71831-95700-03iKM51..3HC..SPX198610-198910

MEDIUM GRAY,TRIM1#

sub71831-95700

main71831-95700-03iKM51..3HC..SPX198610-198711

GRAY,MEDIUM GRAY

sub71831-95700

main71831-95700-04iKM50;CM5#,6#,KM51,YM55,60..(1SO,3SO)..DX198610-198910

BLUE,TRIM8#

sub71831-95700

main71831-95700-04iCM60,YM60..GUT198610-198711

BLUE,BLUE

sub71831-95700

main71831-95700-13iCM5#,6#,KM5#,YM55,6#198910-199906

GRAY,TRIM1#

sub71831-95700

71950HEADREST ASSY, FRONT SEAT

main71910-27010-05iCM65..IV198911-199310

main71910-27020-B0iKM51,YM60..SPX199310-199508

GRAY,TRIM1#

main71910-27030-B0iKM51,YM60..SPX199508-199611

GRAY,TRIM1#

main71910-27031-B1iKM51,YM60..SPX199611-199906

LIGHT GRAY,TRIM1#

main71910-95721-03iKM51,YM60..SPX198910-199310

LIGHT GRAY,TRIM1#

main71910-95J02iCM65..TB199310-199611

main71910-95J02-03iKM51..3HC..SPX198610-198711

GRAY,MEDIUM GRAY

sub71910-95J02

main71910-95J02-03iKM51..3HC..SPX198610-198910

MEDIUM GRAY,TRIM1#

sub71910-95J02

main71910-95J02-04iCM60,YM60..GUT198610-198910

DEEP BLUE,TRIM8#

sub71910-95J02

main71910-95J02-04iKM50;CM5#,6#,KM51,YM55,60..(1SO,3SO)..DX198610-198711

EXTRA,BLUE,DEEP BLUE

sub71910-95J02

main71910-95J02-04iKM50;CM5#,6#,KM51,YM55,60..(1SO,3SO)..DX198711-198910

sub71910-95J02

main71910-95J02-13iCM5#,6#,KM51,YM55,6#..DX198910-199906

sub71910-95J02

71956ASUPPORT, FRONT SEAT HEADREST

main71930-26010-B1iCM65..TS;CM5#,60,61,KM51,YM55,6#..DX199310-199906

sub71930-26010

main71930-26010-B1iKM51,YM60..SPX199310-199906

sub71930-26010

main71931-26010-B1iKM51,YM60..SPX199310-199906

sub71931-26010

main71931-26010-B1iKM51,YM60..SPX199310-199906

sub71931-26010

main71956-30020-13iCM65..IV198910-199310

sub71956-30020

main71956-30020-13iCM65..IV198911-199310

sub71956-30020

main71956-30020-13iKM51..3HC..SPX198610-198711

sub71956-30020

main71956-30020-13iKM51,YM60..5F198610-199310

sub71956-30020

main71956-30020-13iKM51..ATM..SPX198711-199310

sub71956-30020

main71956-30020-24iKM50;CM5#,6#,KM51,YM55,60..(1SO,3SO)..DX198610-198711

sub71956-30020

main71956-30020-24iCM60,YM60..GUT198610-198910

sub71956-30020

main71990-30020iCM65..TB199310-199906

main71990-30020-13iCM65..CBU;CM5#,60,61,KM5#,YM55,6#..DX198910-199310

sub71990-30020

main71990-30020-13iKM51..3HC..SPX198610-198711

sub71990-30020

main71990-30020-13iKM51,YM60..5F198610-199310

sub71990-30020

main71990-30020-13iKM51..ATM..SPX198711-199310

sub71990-30020

main71990-30020-13iCM65..CBU;CM5#,60,61,KM5#,YM55,6#..DX198911-199310

sub71990-30020

main71990-30020-24iKM50;CM5#,6#,KM51,YM55,60..(1SO,3SO)..DX198711-198910

sub71990-30020

main71990-30020-24iCM60,YM60..GUT198610-198910

sub71990-30020

main71990-30020-24iKM50;CM5#,6#,KM51,YM55,60..(1SO,3SO)..DX198610-198711

sub71990-30020

72510ADJUSTER ASSY, RECLINING SEATBACK, RH

main72510-27010-B0iCM65..TS;CM5#,60,61,KM51,YM55,6#199202-199611

GRAY,TRIM1#

sub72510-27010

main72510-27010-B1iCM5#,6#,KM51,YM55,6#199611-199906

GRAY,TRIM1#

sub72510-27010

main72510-95711-03iKM51,YM60..SPX198610-198910

MEDIUM GRAY,TRIM1#

sub72510-95711

main72510-95711-03iKM51..3HC..SPX198610-198711

GRAY,MEDIUM GRAY

sub72510-95711

main72510-95711-04iCM5#,6#,KM5#,YM55,60..DX198610-198910

DEEP BLUE,TRIM8#

sub72510-95711

main72510-95711-04iKM50;CM5#,6#,KM51,YM55,60..(1SO,3SO)..DX198610-198711

BLUE,DEEP BLUE

sub72510-95711

main72510-95711-13iCM5#,6#,KM5#,YM55,6#198910-199202

GRAY,TRIM1#

sub72510-95711

78769TRAY, SUB SEATBACK

main78769-95702-03iKM51..3HC..SPX198711-198910

MEDIUM GRAY,TRIM1#

main78769-95702-03iKM51..3HC..SPX198610-198711

GRAY,MEDIUM GRAY

main78769-95702-04iKM50;CM5#,6#,KM51,YM55,60..(1SO,3SO)..DX198610-198910

DEEP BLUE,TRIM8#

main78769-95702-04iKM50;CM5#,6#,KM51,YM55,60..(1SO,3SO)..DX198610-198711

BLUE,DEEP BLUE

main78769-95702-13iCM5#,6#,KM5#,YM55,6#..DX198910-199611

GRAY,TRIM1#

9010908150

main90109-08150

9011908079

main90119-08079

9011910424

main90119-10424

9015950050

main90159-50050

9016840043

main90168-40043

9017908039

main90179-08039

9017910073

main90179-10073

9038612018

main90386-12018

9038612051

main90386-12051

9046818071

main90468-18071

9052308001

main90523-08001

9161161020

main91611-61020

9354055016

main93540-55016

42 parts on this diagram · 9 diagrams in section
