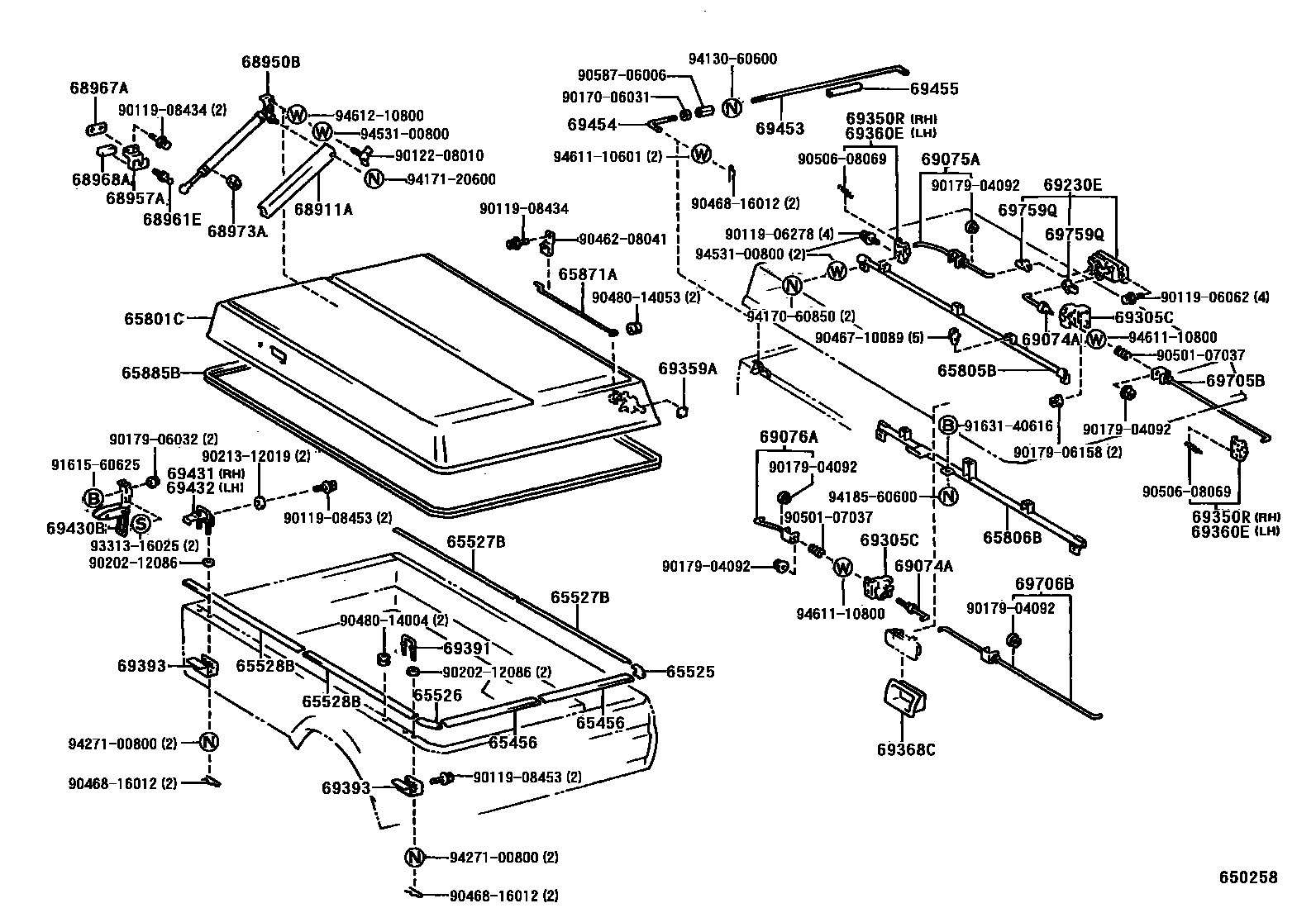

COVER TOP

65456PROTECTOR, HEADER BOARD

main65456-95700×4iKM5#,YM60..TS..1SO198610

65525PROTECTOR, TOP RAIL SIDE END, RH

main65525-95700iKM5#,YM60..TS..1SO198610

65526PROTECTOR, TOP RAIL SIDE END, LH

main65526-95700iKM5#,YM60..TS..1SO198610

65527BPROTECTOR, TOP RAIL SIDE, RH

main65527-95701×2iKM5#,YM60..TS..1SO198610

65528BPROTECTOR, TOR RAIL SIDE, LH

main65527-95701×2iKM5#,YM60..TS..1SO198610

65801CCOVER SUB-ASSY, TOP

main65801-95700iKM5#,YM60..TS..1SO198610-198708

main65801-95702iKM5#,YM60..TS..1SO198708

65805BPROTECTOR SUB-ASSY, TOP COVER LOCK, RH

main65805-95700iKM5#,YM60..TS..1SO198610-198711

main65805-95701iKM5#,YM60..TS..1SO198711

65806BPROTECTOR SUB-ASSY, TOP COVER LOCK, LH

main65806-95700iKM5#,YM60..TS..1SO198610-198702

main65806-95701iKM5#,YM60..TS..1SO198702-198801

main65806-95702iKM5#,YM60..TS..1SO198801

65871ASTAY, TOP COVER

main65871-95700×2iKM5#,YM60..TS..1SO198610

65885BWEATHERSTRIP, TOP COVER

main65885-95700iKM5#,YM60..TS..1SO198610

68911APROTECTOR, TOP COVER DAMPER STAY

main68911-95700iKM5#,YM60..TS..1SO198610

68950BSTAY ASSY, TOP COVER DAMPER

main68950-95717iKM5#,YM60..TS..1SO198610

68957ABRACKET, TOP COVER DAMPER STAY, LOWER

main68957-95700iKM5#,YM60..TS..1SO198610

68961EBOLT, TOP COVER STAY

main68961-95701iKM5#,YM60..TS..1SO198610-198808

main68961-95702iKM5#,YM60..TS..1SO198808

68967ACUSHION, TOP COVER DAMPER STAY BRACKET, NO.1

main68967-95702iKM5#,YM60..TS..1SO198610

68968ACUSHION, TOP COVER DAMPER STAY BRACKET, NO.2

main68968-95701iKM5#,YM60..TS..1SO198610

68973ACUSHION, TOP COVER DAMPER STAY PROTECTOR

main68973-95700×3iKM5#,YM60..TS..1SO198610

69074ALINK SUB-ASSY, TOP COVER LOCK CONTROL, C

main69074-95700×2iKM5#,YM60..TS..1SO198610

69075ALINK SUB-ASSY, TOP COVER LOCK CONTROL, B RH

main69075-95700iKM5#,YM60..TS..1SO198610

69076ALINK SUB-ASSY, TOP COVER LOCK CONTROL, B LH

main69076-95700iKM5#,YM60..TS..1SO198610

69230EHANDLE ASSY, TOP COVER OUTSIDE

main69230-95701×2iKM5#,YM60..TS..1SO198610

69305CBRACKET SUB-ASSY, TOP COVER LOCK CONTROL

main69305-95700×2iKM5#,YM60..TS..1SO198610

69350RLOCK ASSY, TOP COVER, RH

main69350-95706iKM5#,YM60..TS..1SO198610-198711

FR

main69360-95700iKM5#,YM60..TS..1SO198610-198711

RR

69359ACUSHION, TOP COVER LOCK

main69359-95700×4iKM5#,YM60..TS..1SO198610

69360ELOCK ASSY, TOP COVER, LH

main69350-95706iKM5#,YM60..TS..1SO198610-198711

RR

main69360-95700iKM5#,YM60..TS..1SO198711

FRONT

69368CCASE, TOP COVER HANDLE

main69368-95700×2iKM5#,YM60..TS..1SO198610

69391STRIKER, TOP COVER LOCK

main69391-95700×2iKM5#,YM60..TS..1SO198610

69393BRACKET, TOP COVER LOCK STRIKER

main69393-95700×4iKM5#,YM60..TS..1SO198610

69430BCATCH ASSY, TOP COVER

main69430-95703×2iKM5#,YM60..TS..1SO198610

69431STRIKER, TOP COVER LOCK, NO.1 RH

main69431-95701iKM5#,YM60..TS..1SO198610

69432STRIKER, TOP COVER LOCK, NO.1 LH

main69432-95700iKM5#,YM60..TS..1SO198610

69453ROD, TOP COVER BRACE, RH

main69453-95700iKM5#,YM60..TS..1SO198704

69454ROD, TOP COVER BRACE, LH

main69454-95700iKM5#,YM60..TS..1SO198704

69455PROTECTOR, TOP COVER BRACE ROD

main69455-95700iKM5#,YM60..TS..1SO198704

69705BLINK SUB-ASSY, TOP COVER LOCK CONTROL, A RH

main69705-95701iKM5#,YM60..TS..1SO198610

69706BLINK SUB-ASSY, TOP COVER LOCK CONTROL, A LH

main69706-95702iKM5#,YM60..TS..1SO198610

69759QSNAP, TOP COVER LOCK CONTROL LINK

main69759-24010×2iKM5#,YM60..TS..1SO198610-198711

RH-RR,LH-FR

main69759-24020×2iKM5#,YM60..TS..1SO198610-198711

RH-FR,LH-RR

9011906062

main90119-06062

9011906278

main90119-06278

9011908434

main90119-08434

9011908453

main90119-08453

9012208010

main90122-08010

9017006031

main90170-06031

9017904092

main90179-04092

9017906032

main90179-06032

9017906158

main90179-06158

9020212086

main90202-12086

9021312019

main90213-12019

9046208041

main90462-08041

9046710089

main90467-10089

9046816012

main90468-16012

9048014004

main90480-14004

9048014053

main90480-14053

9050107037

main90501-07037

9050608069

main90506-08069

9058706006

main90587-06006

9161560625

main91615-60625

9163140616

main91631-40616

9331316025

main93313-16025

9413060600

main94130-60600

9417060850

main94170-60850

9417120600

main94171-20600

9418560600

main94185-60600

9427100800

main94271-00800

9453100800

main94531-00800

9461110601

main94611-10601

9461110800

main94611-10800

9461210800

main94612-10800

68 parts on this diagram · 1 diagram in section
