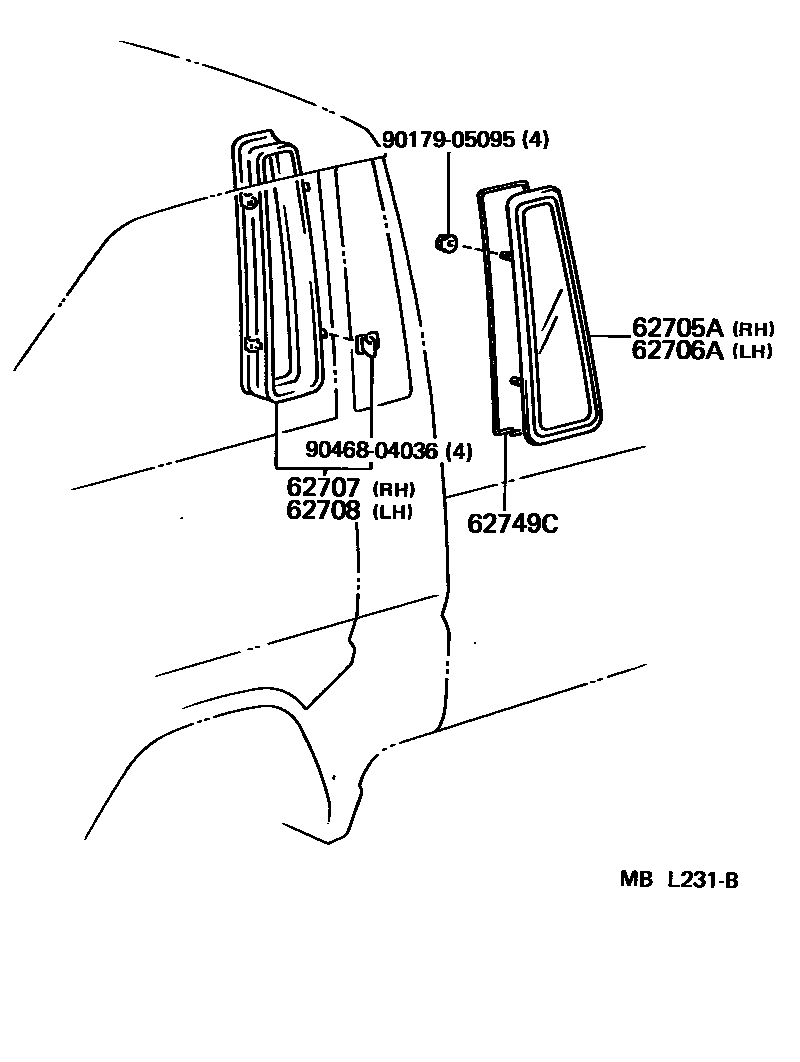

SIDE WINDOW

62705AFRAME SUB-ASSY, QUARTER WINDOW, RH

main62705-27010iKM51,YM60..SPX199110

main62705-27020iCM5#,6#,KM51,YM55,6#..DX199611

main62705-95704iCM5#,6#,KM5#,YM55,60..DX198610-198711

*TEM,T=3.5

main62705-95705iCM65..CBU;CM5#,60,KM5#,YM55,6#..DX; CM65..IV198912-199110

62706AFRAME SUB-ASSY, QUARTER WINDOW, LH

main62706-27010iKM51,YM60..SPX199110

main62706-27020iCM5#,6#,KM51,YM55,6#..DX199611

main62706-95704iCM5#,6#,KM5#,YM55,60..DX198610-198711

*TEM,T=3.5

main62706-95705iCM65..CBU;CM5#,60,KM5#,YM55,6#..DX; CM65..IV198912-199110

62707FRAME SUB-ASSY, QUARTER WINDOW, INNER RH

main62707-95703-03iCM60,YM60..GUT; KM50;CM5#,6#,KM51,YM55,60..(1SO,3SO)..DX; KM51,YM60..5F; KM51..3HC..SPX198610-198711

main62707-95704-03iCM5#,6#,KM5#,YM55,60..DX198711-198910

GRAY,TRIM8#

62708FRAME SUB-ASSY, QUARTER WINDOW, INNER LH

main62708-95703-03iCM60,YM60..GUT; KM50;CM5#,6#,KM51,YM55,60..(1SO,3SO)..DX; KM51,YM60..5F; KM51..3HC..SPX198610-198711

main62708-95704-03iCM65..TS;CM5#,60,61,KM51,YM55,6#..DX199310-199611

GRAY,TRIM1#

62749CSEAL, QUARTER WINDOW, UPPER

main62749-95705×2iCM65..TS;CM5#,60,61,KM51,YM55,6#199310-199611

9017905095

main90179-05095

9046804036

main90468-04036

7 parts on this diagram · 1 diagram in section
