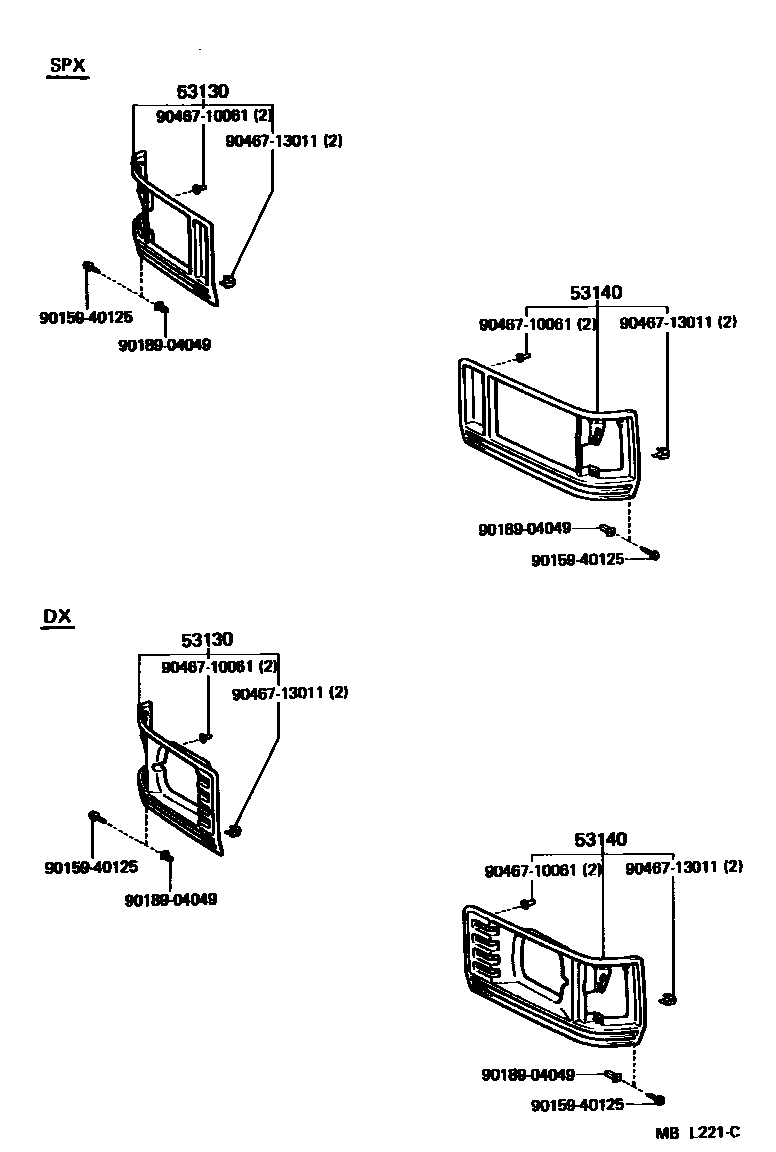

RADIATOR GRILLE

0001 1LITEACE 0002 1TOWNACE 0003 1

53130ORNAMENT ASSY, HEADLAMP, RH

main53130-27010-B0iCM5#,6#,KM51,YM55,6#..3SO; YM60..T1..DX;KM51..1SO..DX;CM60,KM51..GUT199611-199906

main53130-27010-B1iCM5#,6#,KM51,YM55,6#..3SO; YM60..T1..DX;KM51..1SO..DX;CM60,KM51..GUT199611-199906

main53130-27020-J0iKM51,YM60..SPX199611-199906

PURPLISH BLUE M.M,2CL

main53130-27020-J1iKM51,YM60..SPX199611-199906

LT. BLUE ME,8E8

main53130-95708-03iKM51,YM60..SPX199310-199611

main53130-95714iCM5#,6#,KM5#,YM55,6#..DX198610-199310

main53130-95716iCM65,YM65..IV;CM55..4HC..CBU198910

main53130-95719iCM5#,6#198610-198910

main53130-95720iCM60,YM60..GUT198711-198910

TOWN ACE

main53130-95721iCM60..GUT198711-198910

COLD SPEC,TOWN ACE

main53130-95722iKM51,YM60..SPX198610-198711

TOWN ACE

main53130-95723-03iCM5#,6#,KM5#,YM55,6#..3SO; YM60..T1..DX;KM5#..1SO..DX;CM60,KM5#..GUT198910-199310

main53130-95723-06iCM5#,6#,KM5#,YM55,6#..DX198910-199310

53140ORNAMENT ASSY, HEADLAMP, LH

main53140-27010-B0iCM5#,6#,KM51,YM55,6#..3SO; YM60..T1..DX;KM51..1SO..DX;CM60,KM51..GUT199611-199906

main53140-27010-B1iCM5#,6#,KM51,YM55,6#..3SO; YM60..T1..DX;KM51..1SO..DX;CM60,KM51..GUT199611-199906

main53140-27020-B0iCM60..GUT199611-199906

main53140-27020-B1iCM5#,6#..3SO; CM60..GUT199611-199906

main53140-27030-J0iKM51,YM60..SPX199611-199906

PURPLISH BLUE M.M,2CL

main53140-27030-J1iKM51,YM60..SPX199611-199906

LT. BLUE ME,8E8

main53140-95714iCM5#,6#,KM5#,YM55,6#..DX198610-199310

main53140-95716iCM65,YM65..IV;CM55..4HC..CBU198910

main53140-95717iKM50;CM5#,6#,KM51,YM55,60..(1SO,3SO)..DX198610-198910

main53140-95718iKM51,YM60..5F198711-198910

TOWN ACE

main53140-95719iCM65..TS;CM5#,60,61199310-199611

main53140-95722-03iKM51,YM60..SPX198910-199310

main53140-95723-03iCM5#,6#,KM5#,YM55,6#..3SO; YM60..T1..DX;KM5#..1SO..DX;CM60,KM5#..GUT198910-199310

main53140-95723-06iCM5#,6#,KM5#,YM55,6#..DX198910-199310

9015940125

main90159-40125

9018904049

main90189-04049

9046710061

main90467-10061

9046713011

main90467-13011

6 parts on this diagram · 3 diagrams in section
