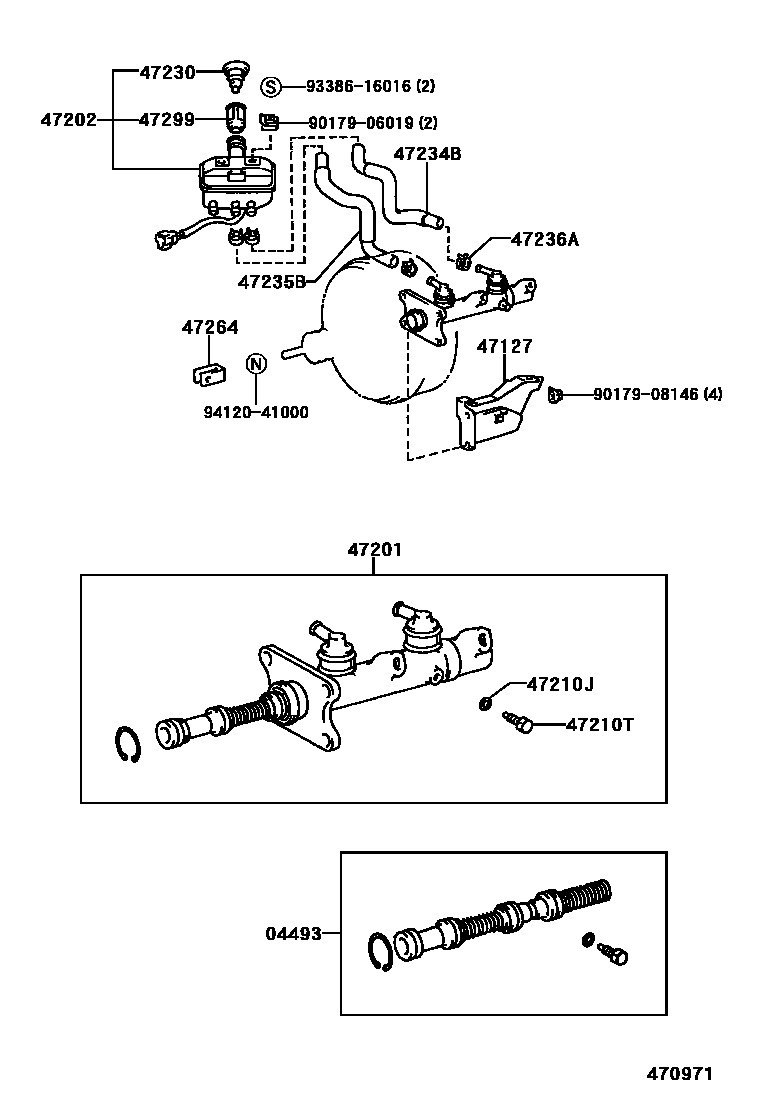

BRAKE MASTER CYLINDER

04493CYLINDER KIT, BRAKE MASTER

main04493-28070iCM5#,6#,KM5#,YM55,6#198610

47127SUPPORT SUB-ASSY, BRAKE MASTER CYLINDER

main55175-27010iCM5#,6#,KM51,YM55,6#199610

main55175-95710iCM5#,6#,KM5#,YM55,6#198610-199610

sub55175-27010

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-27200iCM5#,6#,KM5#,YM55,6#198610

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-28100iYM55,60..MTM;CM5#,6#,KM51,YM65..5F,5H198610

main47220-28110iYM55..4HC;CM51,55,KM5#..3FC,3HC,4H,4HC198610

47210JGASKET(FOR MASTER CYLINDER)

main90430-06104iCM5#,6#,KM5#,YM55,6#198610

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06008iCM5#,6#,KM5#,YM55,6#198610

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-28010iCM5#,6#,KM5#,YM55,6#198610

47234BTUBE, RESERVOIR, NO.1

main47234-27120iCM5#,6#,KM5#,YM55,6#198610-199611

main47234-27160iCM5#,6#,KM51,YM55,6#199611

47235BTUBE, BRAKE MASTER CYRINDER RESERVOIR, NO.2

main47235-27080iCM5#,6#,KM5#,YM55,6#198610-199611

main47235-27120iCM5#,6#,KM51,YM55,6#199611

47236ACLIP(FOR RESERVOIR TUBE)

main90467-16002iCM5#,6#,KM5#,YM55,6#198610

sub96134-51500

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-10080iCM5#,6#,KM5#,YM55,6#198610

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-28010iCM5#,6#,KM5#,YM55,6#198610

9017906019

main90179-06019

9017908146

main90179-08146

9338616016

main93386-16016

9412041000

main94120-41000

16 parts on this diagram · 1 diagram in section
