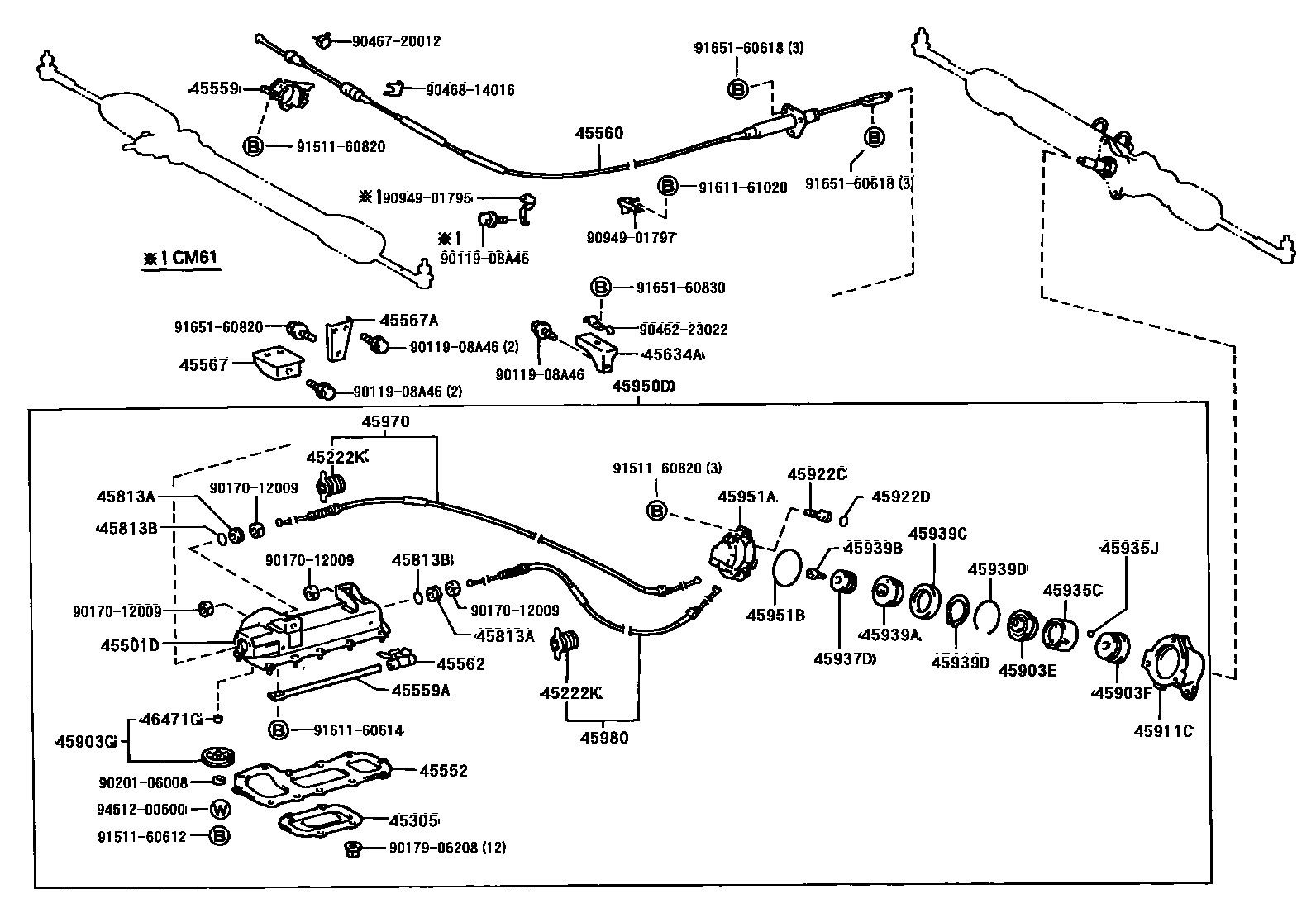

REAR STEERING CONNECTING PARTS (4WS)

45222KCOVER, REAR STEERING GEAR DUST

main45222-27040×2iCM52,61199110

45305COVER SUB-ASSY, REAR STEERING GEAR HOUSING END

main45305-27010iCM52,61199110

45501DHOUSING SUB-ASSY, REAR STEERING GEAR

main45501-27040iCM52,61199110

45552COVER, REAR STEERING CONTROL

main45552-27010iCM52,61199110

45559GUIDE, REAR STEERING CONTROL CABLE

main45559-27010iCM52,61199110-199906

45559AGUIDE, REAR STEERING CONTROL CABLE, NO.2

main45559-27030iCM52,61199110

45560CABLE ASSY, REAR STEERING CONTROL CAM

main45560-27030iCM52,61199110-199906

45562BUSH, REAR STEERING CONTROL RACK

main45507-27010iCM52,61199110

45567BRACKET, REAR STEERING CONTROL CABLE, NO.1

main45567-27010iCM52,61199110

45567ABRACKET, REAR STEERING CONTROL CABLE, NO.2

main45567-27020iCM52,61199110

45634ASTAY, REAR STEERING JOINT PROTECTOR SUPPORT

main45634-27010iCM52,61199110

45813ACOLLER(FOR REAR STEERING CONTROL CABLE STOPPER)

main45813-27010×2iCM52,61199110

45813BRING, O(FOR REAR STEERING CONTROL CABLE STOPPER COLLAR)

main96711-19015×2iCM52,61199110

45903EBEARING, REAR STEERING ANGLE RATIO CONVERTER PIVOT, NO.1

main45903-27010iCM52,61199110

45903FBEARING, REAR STEERING ANGLE RATIO CONVERTER PIVOT, NO.2

main45903-27020iCM52,61199110

45903GBEARING, REAR STEERING ANGLE RATIO CONVERTER PIVOT, NO.3

main45903-27030iCM52,61199110

45911CHOUSING, REAR STEERING GEAR

main45911-27010iCM52,61199110

45922CSCREW(FOR REAR STEERING GEAR PINION BEARING ADJUST)

main45922-27010iCM52,61199110

45922DRING,O(FOR REAR STEERING GEAR PINION BEARING ADJUST SCREW

main96711-19005iCM52,61199110

45935CSTOPPER(FOR REAR STEERING CONTROL CAM BEARING)

main45935-27010iCM52,61199110

45935JBALL(FOR REAR STEERING CONTROL CAM BEARING STOPPER)

main90360-05011iCM52,61199110

45937DWHEEL, REAR STEERING WORM CONTROL

main45937-27010iCM52,61199110

45939ACAM, REAR STEERING WORM CONTROL

main45939-27010iCM52,61199110

45939BBOLT(FOR REAR STEERING WORM CONTROL CAM)

main90110-06018iCM52,61199110

45939CBEARING(FOR REAR STEERING WORM CONTROL CAM)

main90363-55001iCM52,61199110

45939DRING, SNAP(FOR REAR STEERING WORM CONTROL CAM BEARING)

main90520-51001iCM52,61199110

main90520-69001iCM52,61199110

45950DCONVERTER ASSY, REAR STEERING ANGLE RATIO

main45950-27010iCM52,61199110

45951AHOUSING, REAR STEERING CONTROL CAM

main45951-27010iCM52,61199110

45951BRING, O(FOR REAR STEERING CONTROL CAM HOUSING)

main90301-90002iCM52,61199110

45970CABLE ASSY, REAR STEERING CONTROL, RH

main45970-27010iCM52,61199110

45980CABLE ASSY, REAR STEERING CONTROL, LH

main45980-27010iCM52,61199110

46471GBEARING(FOR REAR STEERING CONTROL CABLE PULLEY)

main90364-09073iCM52,61199110

9011908A46

main90119-08A46

9017012009

main90170-12009

9017906208

main90179-06208

9020106008

main90201-06008

9046223022

main90462-23022

9046720012

main90467-20012

9046814016

main90468-14016

9094901795

main90949-01795

9094901797

main90949-01797

9151160612

main91511-60612

9151160820

main91511-60820

9161160614

main91611-60614

9161161020

main91611-61020

9165160618

main91651-60618

9165160820

main91651-60820

9165160830

main91651-60830

9451200600

main94512-00600

49 parts on this diagram · 1 diagram in section
