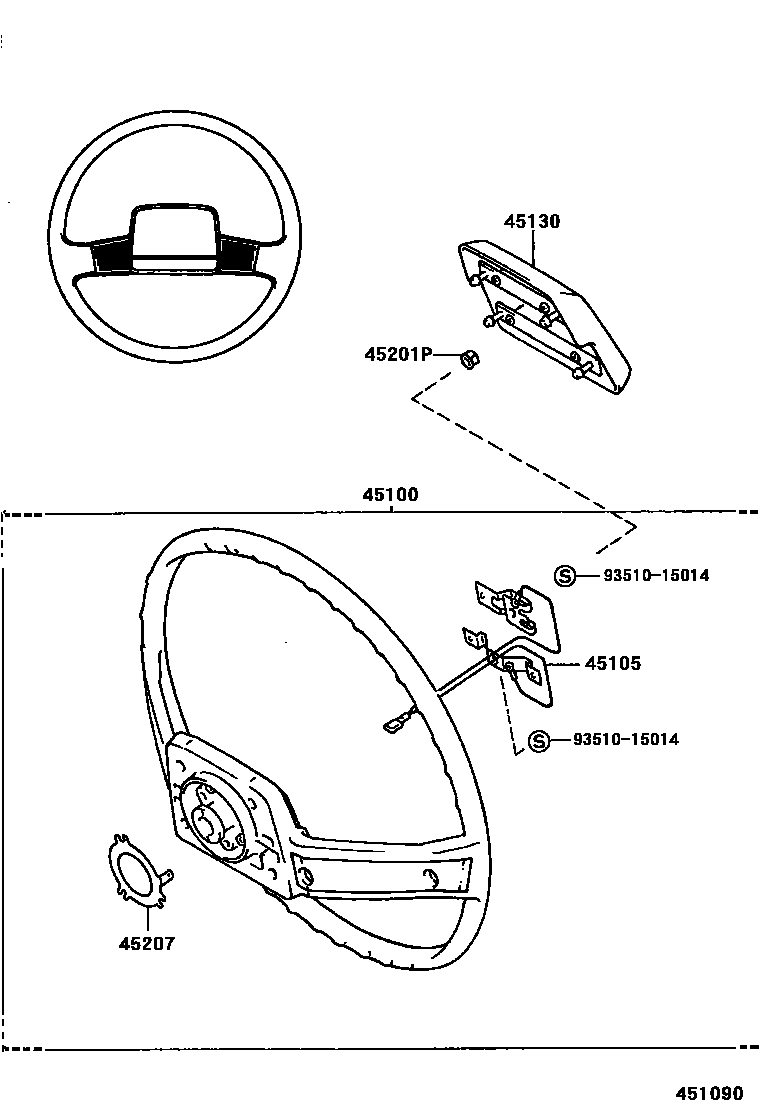

STEERING WHEEL

0001 1POLYPROPYRENE 0002 1URETHANE 0003 1POLYPROPYLENE 0004 1URETHANE

45100WHEEL ASSY, STEERING

main45100-10250-13iKM51,YM60..SPX198610-198910

main45100-10250-14iCM5#,6#,KM5#,YM55,60..DX198610-198910

main45100-10250-23iCM65..TS;CM5#,60,61,KM51,YM55,6#199310-199611

main45100-10270-03iCM51,55,60,65,KM5#,YM55,6#..DX198910-199310

main45100-10270-14iCM5#,6#,KM5#,YM55,60..DX198610-198910

main45100-12720-B1iCM51,55,60,65,KM51,YM55,6#..DX199611-199906

main45100-12760-B1iCM5#,6#,KM51,YM55,6#199611-199906

45105PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1

main45105-10010iCM5#,6#,KM5#,YM55,6#..DX198610-199611

main45105-10020iCM5#,6#,KM5#,YM55,6#198610-199611

main45105-12200iCM51,55,60,65,KM51,YM55,6#..DX199611

main45105-12230iCM51,55,60,65,KM51,YM55,6#..DX; CM52,61;KM51,YM60..SPX199611

45130BUTTON ASSY, HORN

main45130-12730-B1iCM51,55,60,65,KM51,YM55,6#..DX199611-199906

main45130-12810-B1iCM51,55,60,65,KM51,YM55,6#..DX; CM52,61;KM51,YM60..SPX199611-199906

main45130-27020-03iCM65..TS;CM51,55,60,KM51,YM55,6#..DX199310-199611

main45130-27020-04iCM5#,6#,KM5#,YM55,60..DX198610-198910

main45130-27030-03iKM51,YM60..SPX198610-198910

main45130-27030-04iCM5#,6#,KM5#,YM55,60..DX198610-198910

main45130-27030-13iCM52,61;KM51,YM60..SPX198910-199611

main45130-27060-03iCM65..TS;CM51,55,60,KM51,YM55,6#..DX199310-199611

main45130-27060-04iCM5#,6#,KM5#,YM55,60..DX198610-198910

main45130-27070-03iKM51,YM60..SPX198610-198910

main45130-27070-04iCM5#,6#,KM5#,YM55,60..DX198610-198910

main45130-27070-13iCM52,61;KM51,YM60..SPX198910-199611

45201PNUT, STEERING WHEEL SET

main90179-12071iCM5#,6#,KM51,YM55,6#199306-199310

main90179-12086iCM5#,6#,KM5#,YM55,6#198610-199306

45207RING, HORN CONTACT

main45176-35020iCM65..TS;CM51,55,60,KM51,YM55,6#..DX199310-199611

9351015014

main93510-15014

6 parts on this diagram · 4 diagrams in section
