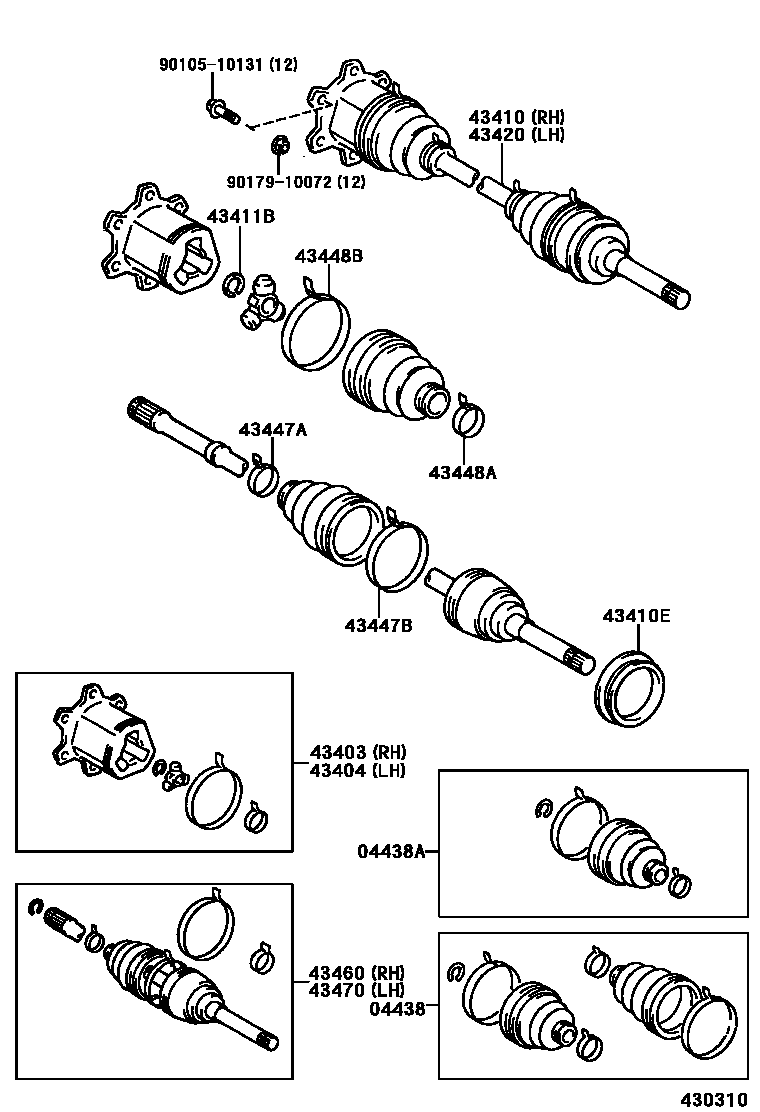

FRONT DRIVE SHAFT

04438BOOT KIT, FRONT DRIVE SHAFT

main04438-28021×2iCM6#,YM6#199611

sub04438-28022

04438ABOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT

main04438-28011×2iCM6#,YM6#199611

sub04437-28021

43403JOINT SET, FRONT AXLE INBOARD, RH

main43403-28010iCM6#,YM6#199005

sub43403-27010

main43403-29015iCM6#,YM60198610-199005

43404JOINT SET, FRONT AXLE INBOARD, LH

main43403-28010iCM6#,YM6#199005

sub43403-27010

main43403-29015iCM6#,YM60198610-199005

43410SHAFT ASSY, FRONT DRIVE, RH

main43430-28010iCM6#,YM60198610-198906

main43430-28011iCM6#,YM6#198906-199310

43410ECOVER, DUST (FOR FRONT DRIVE SHAFT)

main90304-76001×2iCM6#,YM60198610-198708

main90304-76002×2iCM6#,YM60198708-198711

sub90304-76005

sub90316-60004

43411BRING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER)

main90520-26028×2iCM6#,YM6#198610-199310

43420SHAFT ASSY, FRONT DRIVE, LH

main43430-28010iCM6#,YM60198610-198906

main43430-28011iCM6#,YM6#199611

43447ACLAMP, NO.1 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)

main90949-01221×2iCM6#,YM6#198610-199310

43447BCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)

main90949-01135×2iCM6#,YM6#198610-199310

43448ACLAMP, NO.1 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)

main42345-14010×2iCM6#,YM6#198610-199307

main42345-16030×2iCM6#,YM6#199307-199310

43448BCLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)

main42345-16090×2iCM65..TS;CM60,61,YM6#199310-199611

main42345-30010×2iCM6#,YM6#198610-199307

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43460-29055iCM6#,YM60198610-198906

main43460-29056iCM6#,YM6#198906-199310

main43460-29057iCM6#,YM6#199611

43470SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH

main43460-29055iCM6#,YM60198610-198906

main43460-29056iCM6#,YM6#198906-199310

main43460-29057iCM65..TS;CM60,61,YM6#199508-199611

9010510131

main90105-10131

9017910072

main90179-10072

16 parts on this diagram · 1 diagram in section
