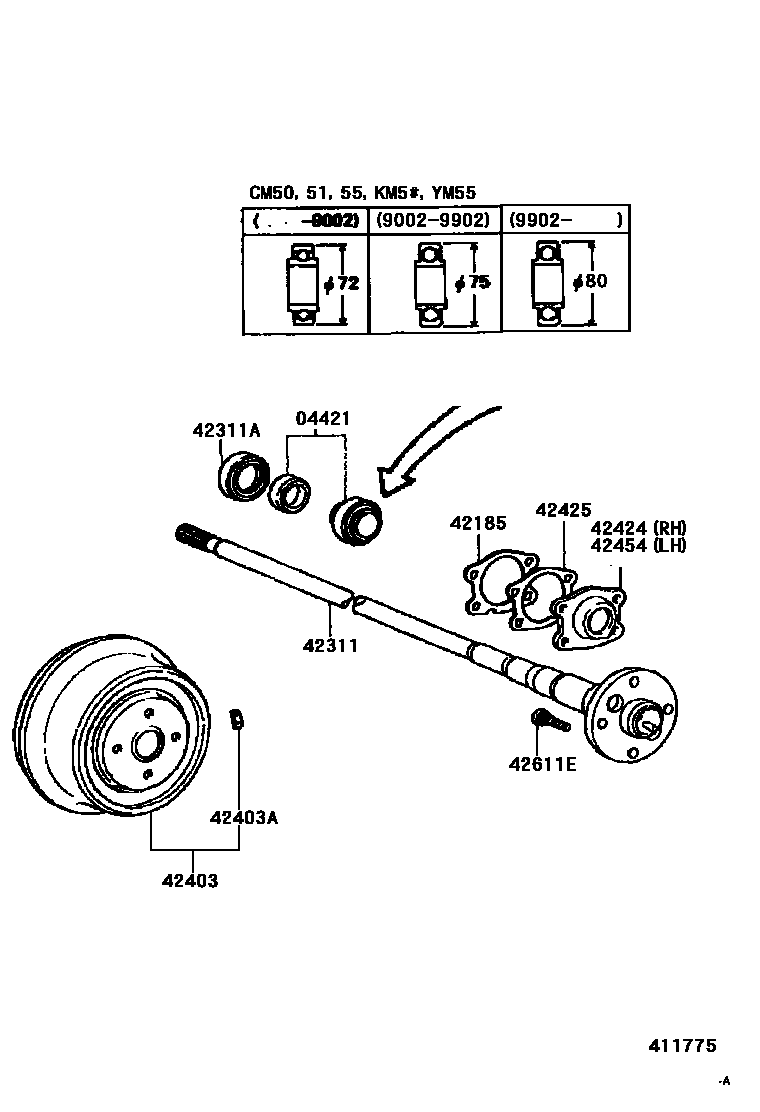

REAR AXLE SHAFT & HUB

0001 1 0002 1���� ������� 0003 1

04421BEARING KIT, REAR AXLE SHAFT

main04421-27010×2iCM50,51,KM5#198610-199002

main04421-27020×2iCM55,YM55198610-198711

main04421-27021×2iCM55,YM55198711-199002

main04421-27030×2iCM51,55,KM5#,YM55199003-199608

main04421-27040×2iCM51,55,KM51,YM55199608-199902

main04421-30030×2iCM60,65,YM6#199611-199812

main04421-30031×2iCM60,65,YM6#199812-199906

main04421-30081×2iCM51,55,KM51,YM55199902-199906

42185GASKET, REAR AXLE HOUSING END

main42185-14020×2iCM5#,KM5#,YM55198610-199002

main42185-27020×2iCM51,55,KM5#,YM55199002-199902

main42185-30061×2iCM51,55,60,65,KM51,YM55,6#199902-199906

42311SHAFT, REAR AXLE

main42311-22100×2iCM50,51,55,KM5#,YM55198610-199906

main42311-27050×2iCM55..5H..IV199404-199906

main42311-27060×2iCM65..IV199611-199906

main42311-28030×2iCM6#,YM6#198610-199106

main42311-28031×2iCM60,65,YM6#199106-199310

42311ASEAL, OIL(FOR REAR AXLE SHAFT)

main90310-50001×2iCM55..IV199404-199611

main90311-33001×2iCM52,61199110-199906

main90311-52059×2iCM50,51,55,60,65,KM5#,YM55,6#198610-199310

42403DRUM SUB-ASSY, REAR BRAKE

main42431-14061×2iCM50,51,55,KM5#,YM55198610

main42431-27100×2iCM52,61199110

main42431-27110×2iCM55..5H..IV199404

main42431-27120×2iCM65..IV199611

main42431-28030×2iCM60,65,YM6#198610-199310

42403APIECE, BALANCE (FOR REAR BRAKE DRUM)

main90937-01100×2iCM55..5H..IV199404

main90937-01117×2iCM65..TS;CM52,60,61,YM6#199310-199611

main90937-01118×2iCM52,6#,YM6#199611

main90937-01119×2iCM65..TS;CM52,60,61,YM6#199310-199611

main90937-01287×2iCM50,51,55,KM5#,YM55198711

main90937-01288×2iCM50,51,55,KM5#,YM55198711

main90937-01289×2iCM50,51,55,KM5#,YM55198711

42424RETAINER, REAR AXLE BEARING, OUTER, RH

main42405-27010iCM55,YM55198610-198710

main42424-14020iCM5#,KM5#,YM55198711-199002

main42424-27010iCM51,55,KM5#,YM55199002-199902

main42424-30040iCM65..TS;CM60,YM6#199310-199611

42425GASKET, REAR AXLE BEARING RETAINER

main42425-14020×2iCM5#,KM5#,YM55198610-199002

main42425-27010×2iCM51,55,KM5#,YM55199002-199902

main42425-30031×2iCM51,55,60,65,KM51,YM55,6#199902-199906

42454RETAINER, REAR AXLE BEARING, OUTER, LH

main42406-27010iCM55,YM55198610-198710

main42424-30040iCM51,55,60,65,KM51,YM55,6#199902-199906

main42454-14010iCM5#,KM5#,YM55198711-199003

main42454-27010iCM51,55,KM5#,YM55199003-199902

42611EBOLT, HUB (FOR REAR AXLE)

main90942-02047×10iCM5#,6#,KM5#,YM55,60198610-198711

main90942-02049×10iCM55..5H..IV199404-199906

main90942-02052×10iCM65..IV199611-199906

10 parts on this diagram · 3 diagrams in section
